Connection and installation
Observe the chapter "Preparations for installation".
The wireless switch is ideally suitable for switching a consumer load on/off wirelessly. The wire-
less switch is designed to ideally fit a flush- or surface-mounted box.
Therefore, ensure an appropriate protection against accidental contact when connect-
ing, installing and subsequently using the wireless switch. Otherwise, there is a risk of
a life-threatening electric shock!

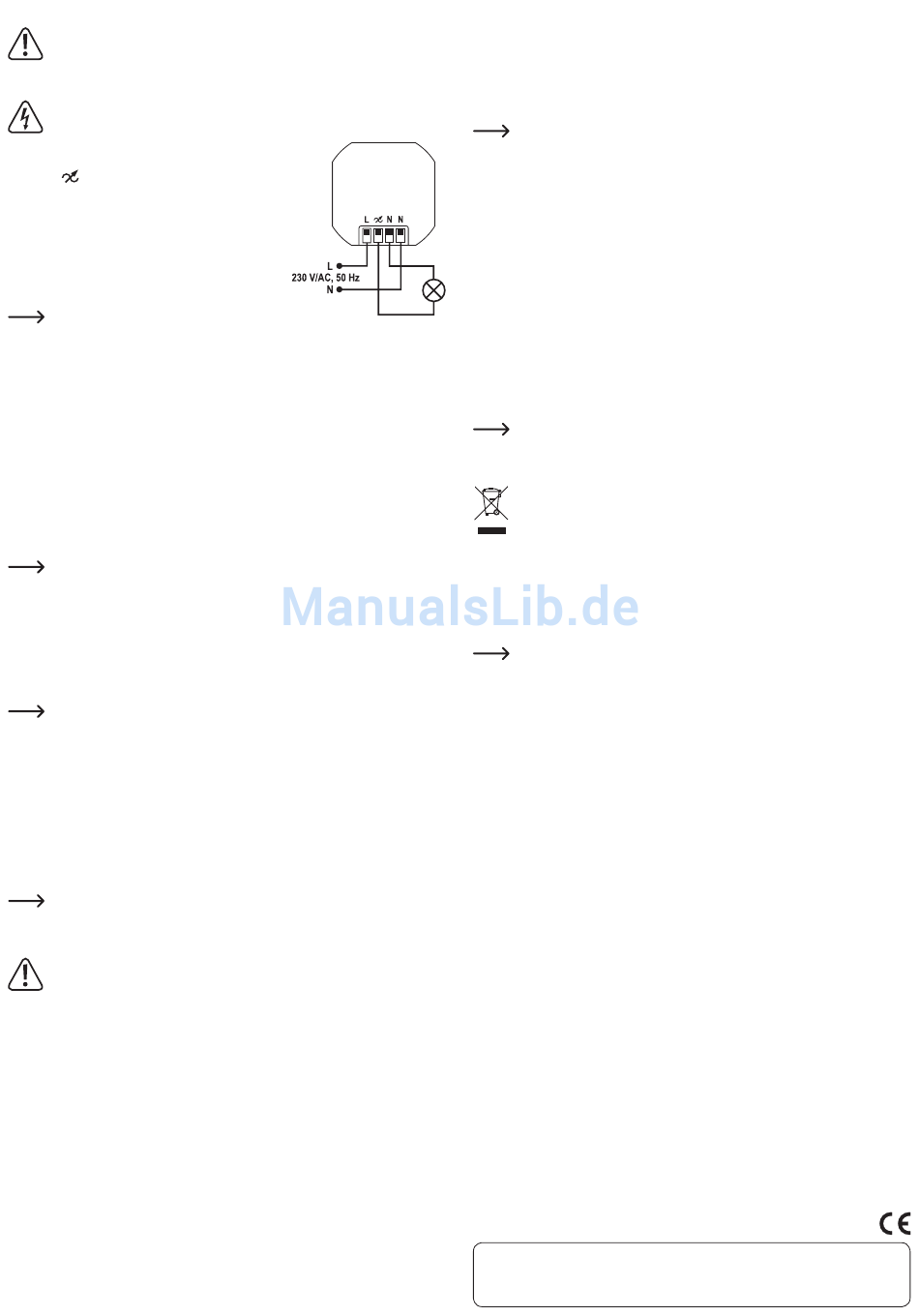

• Connect the consumer load to the two middle screw
terminals. The connection "N" is the neutral wire, the con-
nection " " is the connected output of phase/L.
• The outer two screw terminals are used for connecting to
the mains voltage ("N" = Neutral wire, "L" = Phase).
• Install the wireless switch in the flush/wall-mounted box or
the housing you are using such that the little control button
and the LED point to the front/outside towards you.
The openings of the side grounding clips match the screw
fastenings of a surface-/flush-mounted box (hole spacing
60 mm).
The control button is required to program/teach
the radio transmitter of the RS2W radio system.
When mounting make sure there is enough free space around the control button, so it
will not be switched on by accident.
• Now, switch on the mains voltage.
Function test: switching the connected load on/off using the push
button
Briefly press the push button on the radio-controlled switch to switch the connected consumer
on or off.
An LED next to the push button indicates the current switch state:
• LED on: Load switched on
• LED off: Load is switched off
Programming the radio-controlled switch to a radio transmitter
The radio-controlled switch can be taught-in to any radio transmitter of the RS2W radio
system.
Follow the operating instructions of the radio transmitter that will be used prior to the
teaching procedure.
During the teach-in process maintain a 20 - 30 cm minimum distance between the wire-
less switch and the radio transmitter. Failing to do this may result in a registration failure.
• If the wireless switch is on (LED next to the control button is on, device is activated), switch off
the wireless switch first.
Briefly press the control button, the LED next to the control button must go dark.
The wireless switch must be switched off (LED next to the control button is off), or else
the registration process cannot be conducted.
• Start with the registration process on the radio transmitter.
Example: Both buttons "ON" and "OFF" of the desired switch channel at the 12-channel hand-
held transmitter of the RS2W system must by pressed simultaneously until the red LED of the
hand-held transmitter starts flashing. Release both buttons, the red LED continues to flash, the
programming mode is activated.
• Press the button at the radio-controlled switched pressed until the programming process at the
transmitter is complete.
Example: The LED at the 12-channel hand-held transmitter of the RS2W system lights up blue
and then goes dark. Release the button at the radio-controlled switch.
• The radio-controlled switch switches on to indicate the end of the programming process.
Up to 5 receivers can be programmed to one switch channel of a transmitter of the
RS2W system. That means you can switch on or off up to 5 radio-controlled switches
simultaneously with the push of a button.
It is also possible to register the wireless switch on several radio transmitter.
However, the dimmer available for the RS2W system must not be programmed together
with a radio-controlled switch to a single switch channel! Always programme it to a
separate channel of the radio transmitter.
Deleting a programmed radio-controlled switch from a transmitter
The procedure is exactly the same as for programming the radio-controlled switch to the transmit-
ter. You can find further information in the operating instructions of the used radio transmitter of
the RS2W system.
Switching the load on/off
The radio-controlled switch and the connected load can only be switched on or off remotely, if they
are programmed to a transmitter of the RS2W radio system.
Observe the operating instructions of the used transmitter.

Maintenance

The product does not require any maintenance and should never be opened or dissembled for any
reason. Repair or maintenance work must be carried out by a specialist.
Range
The transmission range of the radio signals between a transmitter of the RS2W system and the
radio-controlled switch is up to 150 m under optimum conditions.
This value, however, is the so-called "open space range" (the range when transmitter
and receiver are in line of sight, without interference).
In practice, however, there may be walls, room ceilings, etc. between the transmitter and the
receiver which reduce the range accordingly.
Due to the different influences on the radio transmission, no specific range can be guaranteed.
However, trouble-free operation is usually possible in a single family house.
Sometimes the range can be considerably reduced due to:
• Walls, reinforced concrete ceilings, light-weight walls with metal post and beam construction
• Coated/metallised insulated glass
• Proximity to metallic & conductive objects (e.g. heating elements)
• Proximity to human bodies
• Other devices on the same frequency (e.g. wireless headphones, wireless speakers)
• Proximity to electric motors / appliances, transformers, power supplies, computers
Declaration of conformity (DOC)
We, Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau, herewith declare that this
product conforms to the fundamental requirements and the other relevant regulations of the direc-
tive 1999/5/EC.
The declaration of conformity for this product is available at
www.conrad.com
Disposal
The product must not be disposed of in the household waste.
Dispose of the product at the end of its serviceable life in accordance with the current
statutory requirements; e.g., return it to any suitable collection point.
Technical information
Operating voltage.........................................230 V/AC, 50 Hz
Power consumption.....................................approx. 0.4 W (off) or 1 W (on)
Max. power rating........................................resistive load: max. 2000 W (max. 8,7 A)
.........................................................................inductive load: max. 600 W (max. 2,6 A)
Devices with mainly resistive load are e.g., light bulbs, heaters, etc.
Devices with inductive load are, e.g., engines, control gears, conventional transform-
ers, energy saving bulbs, etc.
Transmission/reception frequency ...........868.3 MHz
Range .............................................................up to 150 m (see chapter "Range")
Ambient conditions ...................................... Temperature 0 °C to +45 °C, air humidity 0% to 90% rela-
Dimensions (H x W x D)...............................53 x 52 x 33 mm (without the mounting brackets)
Hole spacing for installation ......................60 mm
Weight ............................................................approx. 45 g
