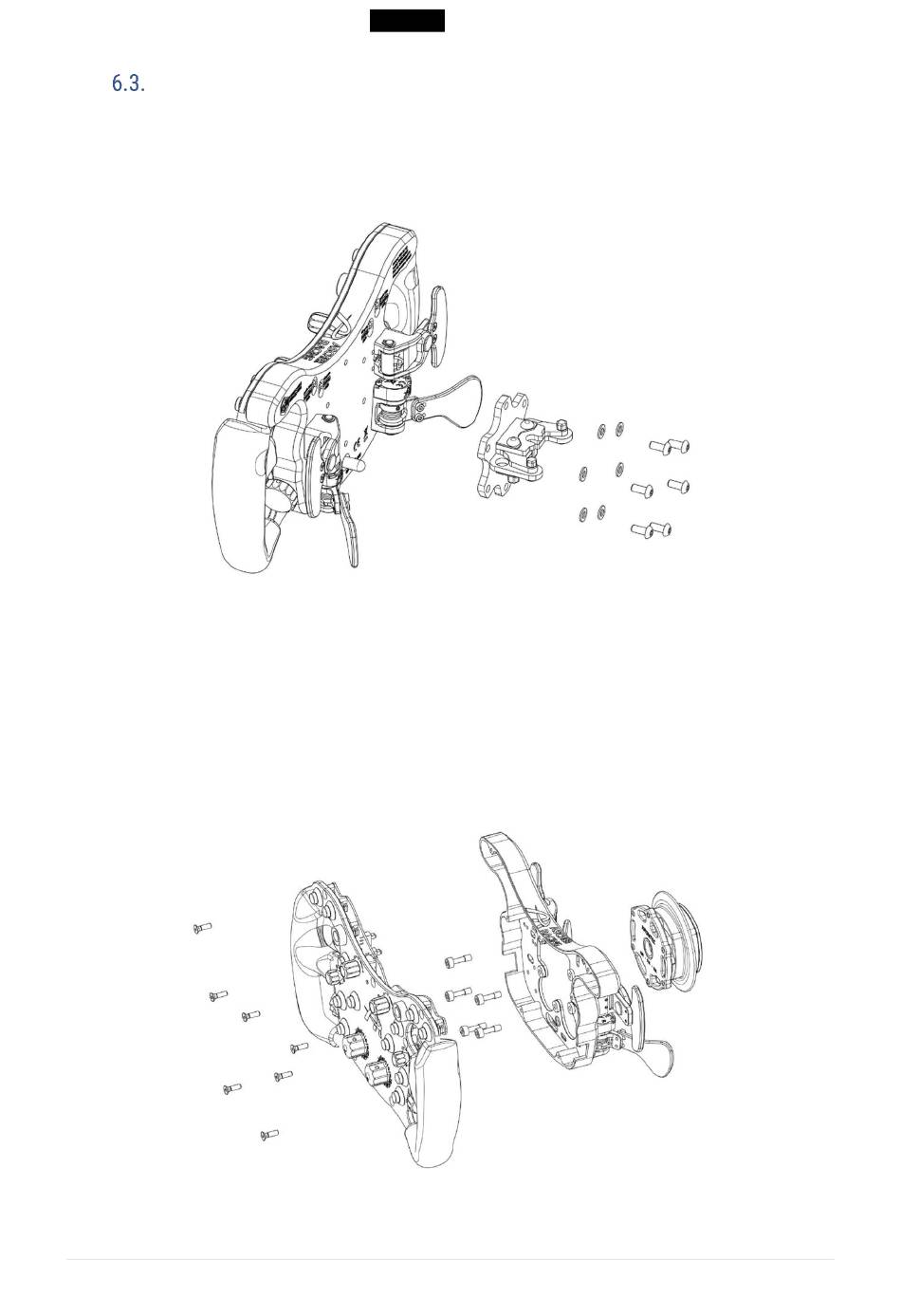

70mm Bolt Pattern Quick Release – Outside Mounting
Standard 70mm bolt pattern Quick Releases with non-threaded through holes (e.g. Q1R 70mm wheel
side) can be mounted as follows. QRs with threaded through holes can be mounted similarly by using
captive screws (section with a reduced shaft diameter) instead.
5.4 70mm Bolt Pattern Quick Release – Inside Mounting
QRs with either M5 threaded blind holes or other features preventing from conventional mounting
can be attached from the inside of the wheel casing. Captive screws are required to bypass the thread
of the casing.
First open the steering wheel by removing all (7) M4 screws on the frontplate. Unplug paddle shifters
and clutches in order to separate the casing from the frontplate assembly. Screw-in (5) captive screws
into the casing from the inside completely past their thread engagement. Then mount the QR by
turning each captive screw for only half a turn in a circular pattern until both opposing surfaces are
touching. Plug-in cables, reassemble the steering wheel and make sure to not squeeze any cables.
