IPC 1404 Bedienungsanleitung Seite 46

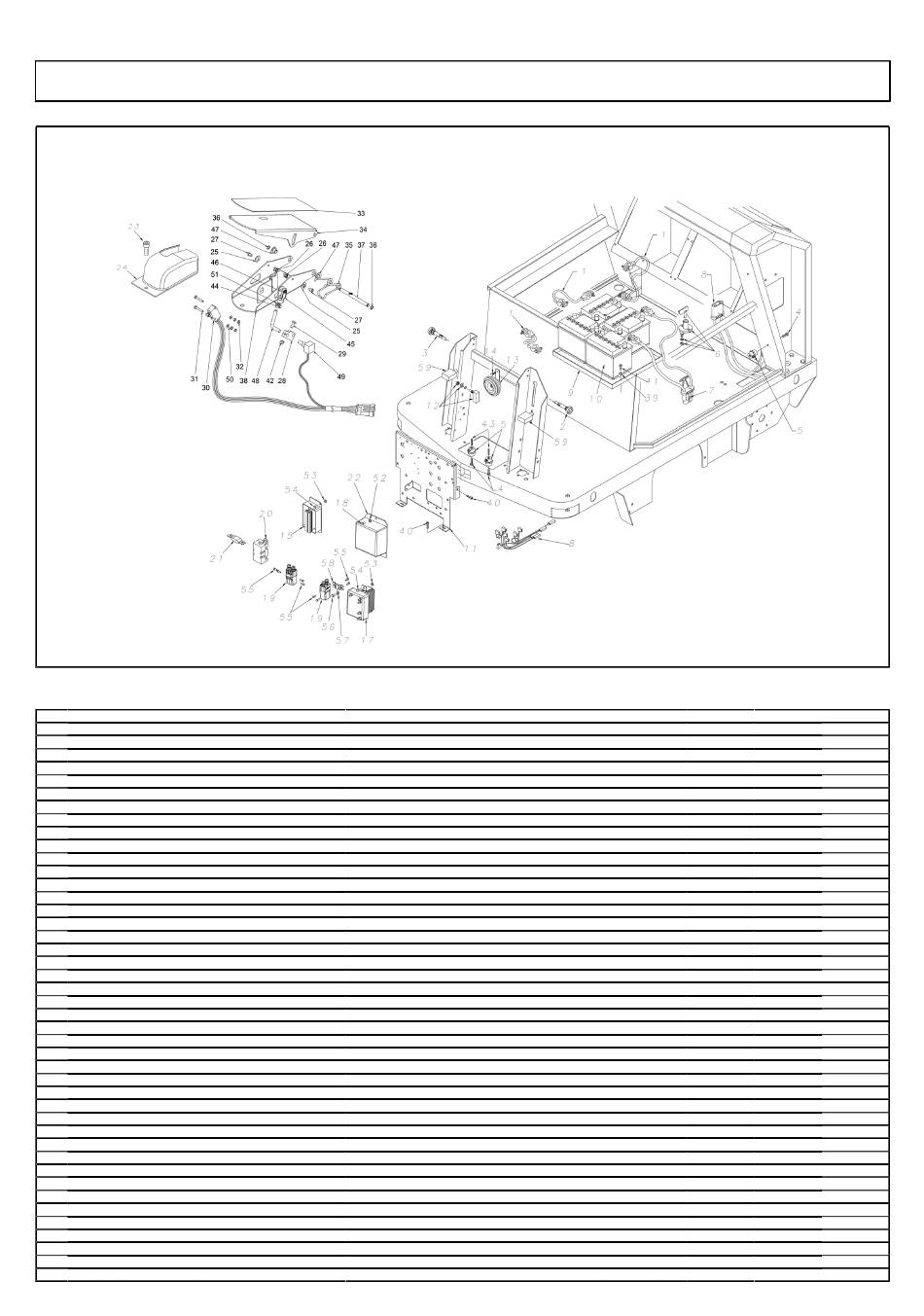

Table: ELECTRI.INSTAL. - DBDB07427
Ref. K Part n. Part n. 2
0001 MEVR34820
0002 MECI00026
0003 MECI00028
0004 VTVT75719
0005 MEVR47082
0006 AZMC75803
0007 MECB44780
0008 MEVR01665
0009 LAFN46836
0011 LAFN06784
0011 LAFN09188
0012 MECI75801
0013 MEVR47083
0014 VTVT85116
0015 MECE00420
0017 MECE00552
0018 VTVT14062
0019 METT00085
0020 MEVR00146
0021 MEVR01925
0022 MECE00555
0023 VTVT62920
0024 MPVR00302
0025 MPVR05528
0026 VTDD04369
0027 VTVT00089
0028 LAFN01149
0029 VTVT00727
0030 MECB01228
0031 VTVT01350
0032 VTDD21115
0033 MPVR00866
0034 LAFN06474
0035 MLML00034
0036 VTAE48552
0037 LAFN00524
0038 LAFN07532
0039 VTRS00503
0040 VTVT62920
0041 VTVT75726
0042 VTDD04369
0043 VTVT47088
0044 VTDD00482
0045 CMCV75717
Date: 17/02/2023
Description
WIRING BATTERY BRIDGE W/TERMINAL
BUTTON PIATTO ROTONDO D.22 ROSSO
SWITCH EMERGENCY 24V - RED
SCREW TE FR 6X10 ZB ZIGRINATE
INSULATOR MM35 M6 CH 32
KEY SW 1000
WIRING BATTERIA
PLUG CHARGER SBC160
CONTAINER BATTERIA TK1400
PLATE SUPPORTO ELETTRONICA
BRACKET -
MICROSWITCH A PISTONE (MS/10-Z15GC)
HORN 24 V
SCREW AUTOF.TE FR 6,3X19 ZB
BOARD HOPPER LIFTING 1404
BOARD 1404
SCREW TE UNI 5739 5X16 ZB A.8.8
CONTACTOR 100A
FUSE-HOLDER MEGA
FUSE 150A
BOARD CURTIS 1227-2102
SCREW TE FR 6X16 ZB ZIGRINATE
CRANKCASE PEDALE AVANZAMENTO
WASHER -
NUT M 4 TEF UNI 7473
SCREW TCCE UNI 5931 4X10 ZB
CONNECTING ROD PEDALE AVANZAMENTO G1050
SCREW TE M. 4-20
WIRING -
SCREW M3-20 INOX
NUT M 3 INOX
PLANE ANTISDRUCCIOLO G1050
SHEET METAL PA. PEDALE
SPRING PEDALE AVANZAMENTO G1050
CIRCLIP ESTERNO DIN 471 D.6
PIN PEDALE TK 1050
BASE -
WASHER D. 6 UNI 6592
SCREW TE FR 6X16 ZB ZIGRINATE
SCREW TBCE ISO 7380 6X16 ZB
NUT M 4 TEF UNI 7473
GRUB SCREW UNI 5923 6X30 GREZZO
NUT M 6 ZIN UNI 5588
CLIP UNI 1676 M6x12
Selected part: MSUB00579
Progressive number: 1
Validity
Quantity From
3,00
1,00
1,00
2,00
3,00
1,00
1,00
1,00
1,00
1,00 26/04/2012
1,00 27/04/2012
2,00
1,00
1,00
1,00
1,00
3,00
2,00
1,00
1,00
1,00
1,00
1,00
2,00
2,00
2,00
1,00
1,00
1,00
2,00
2,00
1,00
1,00
1,00
2,00
1,00
1,00
4,00
4,00
4,00
1,00
2,00
1,00
1,00
To Price
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Page 11
