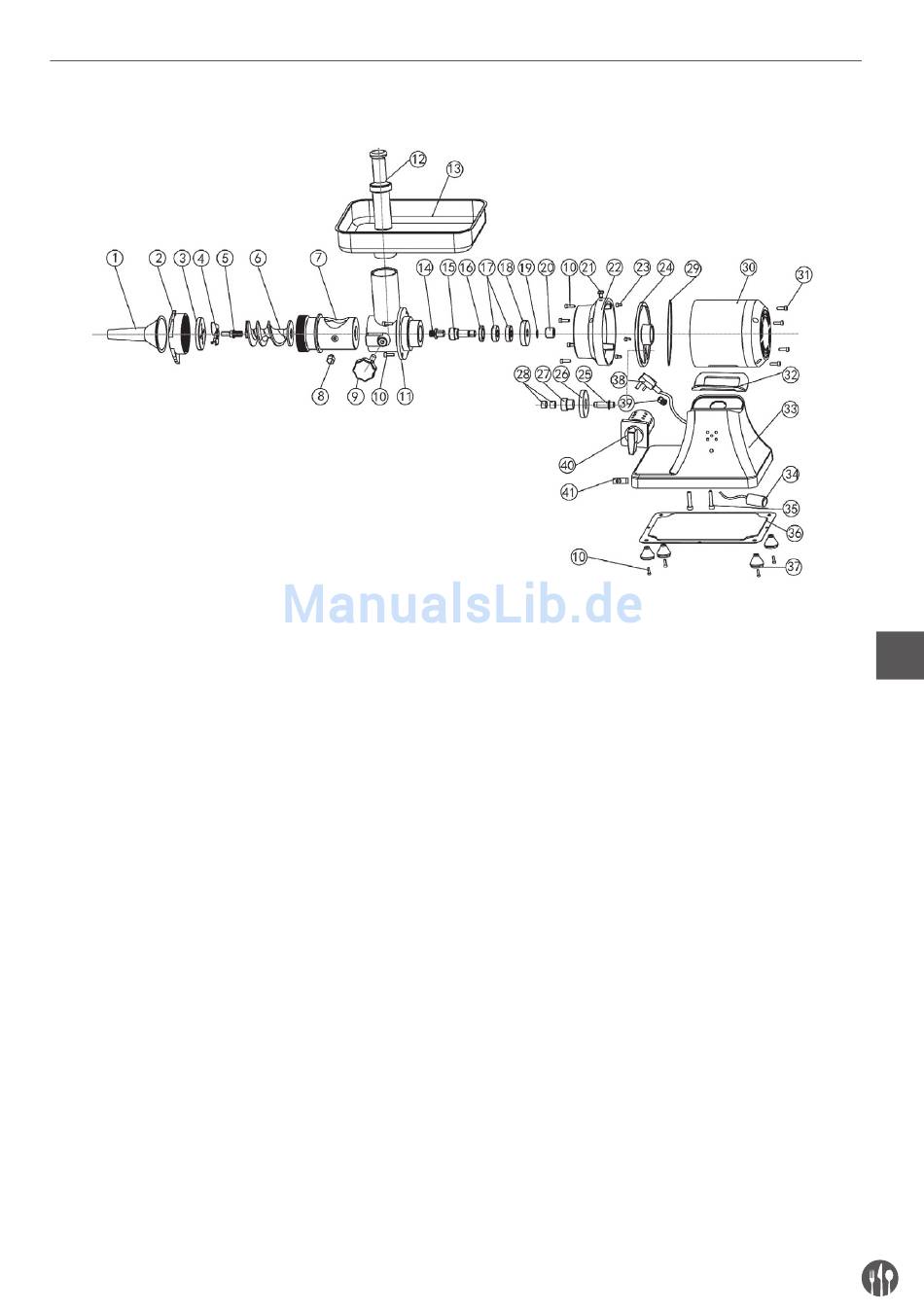

4. EXPLODED VIEW

1 sausage tube
2 coupling cover
3 die plate
4 cross knife
5 holder
6 spiral propeller
7 mincer head
8 locking seat
9 locking nut
10 screw
11 mincer head
12 pestle
13 feeder pan
14 plunger
15 output axis
16 oil seal
17 bearing
18 big gear B
19 elastic washer
20 small gear A
21 screw
22 gear box
23 screw
24 front motor cover
25 central shaft
26 big gear A
27 small gear B
28 sheath
29 seal ring
30 motor
31 screw
32 rubber pad
33 machine body
34 capacitor
35 screw
36 bottom plate
37 rubber feet
38 power cord
39 cable tie
40 on-off switch
41 reset
