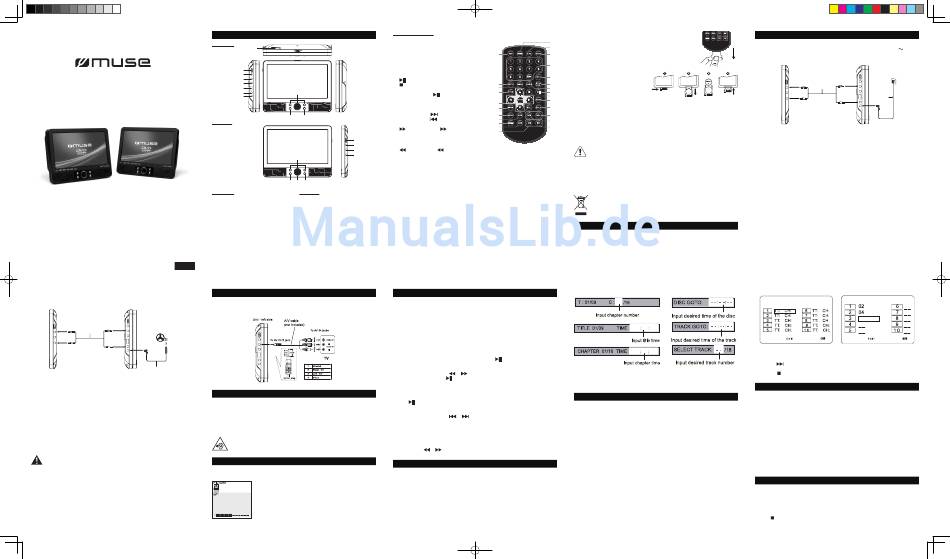

M-990 CVB
Twin Display Car DVD Player
User Manual
Please read the instruction carefully before operating the unit.
English
Using the Car Power Adaptor
The included 12V car power adaptor is designed for use with vehicles that have a 12V, negative
ground electrical system.
Moniter - right sid e Unit - left sid e
To AV OUT jack
To AV IN jack
DC-AV cable
To the cigarette
lighter socket
To DC IN 9-12V jack
To DC IN 9-12V jack
To DC OUT 9-12V jack
Car plug
WARNING: Disconnect this car power adaptor when not in use. Not for use in 24V vehicles.
Cautions
● Use only the included 12V car power adaptor. Use of any other 12V car power adaptor could
damage the unit.
● The 12V car power adaptor included is for use with this unit only. Do not use it with any other
equipment.
● In the interest of traffic safety, drivers should not operate the unit or view videos while driving.
● Make sure the unit is fastened correctly to prevent from falling in the vehicle in the event of
an accident.
● When the inside of the cigarette lighter socket is dirty with ashes or dust, the plug section
may become hot due to poor contact. Be sure to clean the cigarette lighter socket before use.
● After use, disconnect the car power adaptor from both the unit and cigarette lighter socket.
Using the Built- in battery
The unit has a built-in rechargeable battery (lithium-polymer). Charge the built-in battery before
using it for the first time. The charging indicator will change from red to green when the battery
becomes fully charged.
Note: If the main unit is powered by the built-in rechargeable battery, the separate
monitor might blink when the battery power is not strong enough (playback for around
50 minutes after the battery is fully charged).
Warnings:
• Recharge the built-in battery when you are ready to use it again.
• While using the built-in battery, the environmental temperature should be 5°C (41°F) to 35°C
(95°F).
• To get the longest service life of the built-in battery, charge at indoor-temperature.
• The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do
not disassemble, heat above 100°C (212°F), or incinerate.
• The unit should not be exposed to excessive heat such as sunshine, fire or the like.
• When discarding the unit, environmental problems must be considered and local rules or laws
governing the disposal of such products must be strictly followed.
• When the built-in battery power is low, "LOW BATTERY" will show on display, and then the
player will access to standby mode automatically.
GB - 5
DVP-3577 IB MUSE 001 REV2- GB.indd 1
LOCATION OF CONTROLS
MAIN UNIT
1
2
3
4
5
6
7
10
8
9 11
MONITOR
16
17
18
19
14
15 12 13
MAIN UNIT MONITOR
12. ▲, ▼
1. SD/MMC
2. POWER ON/OFF 13. MODE: Slaver TFT menu setting.
14. VOL-/VOL+ ◄, ►
3. EARPHONE OUT JACKS
15. BACK LIGHT: Slaver TFT backlight
4. VIDEO/AUDIO OUT
switch.
5. VIDEO/AUDIO IN
16. POWER ON/OFF
6. USB
17. AV IN
7. DC OUT
18. EARDPHONE OUT JACKS
8. DC IN 9-12V
19. DC IN
9. ENTER
10. ▲, ▼, ◄, ► /Vol+/Vol-
11. SOURCE: To select between DVD, AV IN
or MEDIA (USB/CARDS) mode.
GB - 1
CONNECTIONS
Watching a DVD on your TV
Note: Make sure to use the cable with correct plug.
USING HEADPHONES / EARPHONES
Maximum output voltage ≤ 150mV
Wide Band Characteristic Voltage ≥ 75mV
HEADPHONE VOLUME WARNING
Connect earphones with the volume set low and increase it if required. Prolonged listening
through some earphones at high volume settings can result in hearing damage. When
headphones/earphones are connected, no sound will be emitted from the unit's speaker. Caution:
Avoid listening to sound at levels which may be harmful to your ears.
To prevent possible hearing damage, do not listen at high volume levels for long
periods.
LCD MODE (MONITOR)
Press MODE button repeatedly to select "PICTURE".
PICTURE:
Press ▼, ▲ to select "BRIGHT", "CONTRAST", or "COLOR" then
press ◄, ► to adjust its level.
Select "LANG." and press ◄, ►to select the desired OSD language.
BRIGHT 50
Select "ZOOM", then press ◄, ► to select the aspect ratio between
CONTRAST 50
COLOR 50 16:9 and 4:3.
LANG. ENGLISH
Select "Reset" then press ◄, ►to reset to the default settings.
ZOOM 16:9
RESET
GB - 6
REMOTE CONTROL
1. SOURCE: To select between DVD, AV IN or MEDIA
16
(USB/CARD) mode.
2
2. MUTE: To mute or restore sound.
15 1
3. 0,1,2,...9,10+: number entry.
4. DISPLAY: To show status information on the screen.
5. MENU/PBC: Return to DVD root menu (DVD).
3
To turn PBC mode on/off for VCD.
6. AUDIO: To change the AUDIO setting.
4
7. PLAY/PAUSE: To start and pause the playback.
8. STOP: MP3/Jpeg/DivX files: press once to 17 5
18
6
stop playback. DVD/VCD/CD: press once to pre-
19 7
stop (resume with button), press again to stop
8
playback.
9
20
9. MODE: To access LCD setting mode.
21 10
10. VOL+
22
11. FORWARD SKIP , Go to next chapter/track.
11
23
12. REVERSE SKIP , Go to previous chapter/track
24
12
to the beginning. 25
26 13
13. BUTTON: Press button allow skipping
14
ahead at 5-level speed (X2-> X4->X8->X16->
X32->PLAY), press ENTER button return to normal
playback.
14. BUTTON: Press BUTTON allow skipping back at 5-level speed (X2-> X4->X8->
X16->X32->PLAY), press PLAY button return to normal playback.
15. STEP: To play frame by frame
16. SEARCH: to search for a desired title, chapter, time.
17. SUBTITLE: To change the subtitle setting.
18. ANGLE: To access the camera angle function for DVD disc.
19. TITLE: To access the disc TITLE menu.
20. Cursor (▼, ▲, ◄, ►) buttons
Press to highlight selections on a menu screen and adjust certain settings.
ENTER button
Press to confirm selections on a menu screen.
21. SETUP: To enter and exit the setup menu.
22. VOL-
23. REPEAT: To repeat playback.
24. SLOW: Press SLOW button repeatedly to enter slow playback, and cycle between different
speeds. The speeds are 1/2,1/4,1/8,1/16, and normal.
25. PROGRAM: To program playback sequences.
26. ZOOM: To access the zoom function.
Note: " " will be displayed if the function you select is not available.
GB - 2

DISC PLAYBACK

Region Management Information
Region Management Information: This unit is designed and manufactured to respond to the
Region Management Information that is encoded on DVD discs. If the Region number printed on
the DVD disc does not correspond to the Region number of this unit, this unit cannot play that disc.
The region number of this unit is 2.
Basic Playback
1. Slide ON /OFF switch to turn ON the unit. The power ON indicator will go on.
2. Slide "OPEN" lock according to the arrow, and hold the front panel to open the disc door.
3. Insert a disc with label face you.
4. Close the disc door. It takes a short while for your unit to load the disc. After loading, the unit
will automatically bring you to the main menu of the DVD or start playing the DVD. If the unit
does not automatically start playing the DVD, press the .
Accelerated play
While the disc is playing, press or one or more times to vary the speed and direction
of the accelerated play. Press to resume normal playback.
Frame advance (DVD)
1. While the disc is playing, press STEP once.
2. Press STEP a number of times to advance forward image by image.
3. Press to resume normal playback.
Changing chapter/track
While the disc is playing, press or to go immediately to the next or previous chapter
(DVD), or to the next or previous track (CD).
Zoom (DVD, JPEG)
While a disc is playing, press ZOOM until you reach the zoom size you want. The button cycles
through 2x, 3x, 4x and then zooms out to 1/2x, 1/3x and 1/4x, then returns to normal playback.
Note: Under Zoom function for JPEG file, press ZOOM button to go to Zoom 100% mode,
then Press or button a number of times to vary the Zoom steps which you want.

ADVANCED FUNCTIONS

On screen display
Press the DISPLAY button a number of times during playback to show in turn:
DVD: Title elapsed time, Title remaining time, Chapter elapsed time, Chapter remaining time,
Display off.
CD: Single elapsed time, Single remaining time, Total elapsed time, Total Remaining time.
Search a desired section
The user can access a specific location or a specific track by keying in the target time or the
track number.
1. Press SEARCH button repeatedly to enter different search mode.
GB - 7
The remote control operates on 1pc "CR2025" lithium battery
(included). To power up the remote control, remove the insulation
tab from the back of unit.
INSTALLING BATTERY
1. Push the button toward right.
2. Pull the battery loader out.
3. Insert one "CR2025" size battery with
the positive side (+) facing up.
4. Replace the cover.
NOTES:
- Before throwing any batteries away, consult your distributor who may be able to take them
back for specific recycling.
- In order to avoid leakage, always remove the batteries when unit will not be used for a long
period of time.
- If the remote control is not going to be used for a long time, remove the battery to avoid damage
caused by battery leakage corrosion.
- CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type.
WARNING
Do not ingest the battery, Chemical Burn Hazard.
(The remote control supplied with) This product contains a coin/ button cell battery.
If the coin/ button cell battery is swallowed, it can cause severe internal burns in just 2 hours
and can lead to death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it away
from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek
immediate medical attention.
If at any time in the future you should need to dispose of this product please note that
Waste electrical products should not be disposed of with house hold waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice. (Waste Electrical and Electronic Equipment Directive.)
ACCESSORIES
Remote Control (with battery) x 1
Car power adaptor x 1
AC adaptor x 1
DC-AV cable x 1
Earphones x 2
Car headrest mounting bracket x 2
GB - 3
DVD: CD:
2. Input the chapter number or playback time, then it will jump to the target location
immediately.
PLAY MODES
Repeat playback
While the disc is playing, press the REPEAT button repeatedly to select a play mode:
DVD: Repeat Chapter, Repeat Title , Repeat All , (Repeat Off);
CD: Repeat Track, Repeat All, Repeat Off;
MP3: Single , Repeat one, Repeat Folder, Folder, Shuffle, Random
Note:
"SINGLE": The selected track will play once and then stop playback.
"REPEAT ONE" : The selected track will play continuously.
"REPEAT FOLDER": All tracks in the selected folder will play continuously.
"FOLDER": All tracks in the selected folder will play once and then stop playback.
"SHUFFLE": Randomly play once and then stop playback.
"RANDOM": Random play continuously.
Note: Some DVD discs do not allow repeat function.
Program playback
With this option, you choose and program the playback order. You can store up to 20 tracks.
1. Insert a disc.
2. In playing or stop mode, press the PROGRAM button. The Program menu appears.
GB - 8
POWER SUPPLY
Using the AC adaptor
The supplied AC adaptors are suitable for use on AC mains supplies of 100-240V 50/60Hz
and should only be connected to a mains supply within these parameters.
Moniter - right sid e Unit - left sid e
To AC outlet
(100-240V 50/60Hz)
To AV OUT jack
To AV IN jack
DC-AV cable
AC adaptor
To DC IN 9-12V jac k
To DC IN 9-12V jack
To DC OUT 9-12V jack
Cautions:
* The AC adaptor included with this unit is for its use only. Do not use it with other equipment.
* Turn off the unit before unplugging the AC adaptor from the unit so as to avoid the unit being
damaged.
* When the unit is not going to be used for long time, disconnect the AC adaptor from the AC outlet.
* Be sure to use it near the wall outlet and easily accessible. If a malfunction occurs, disconnect
the plug from the wall outlet at once.
* AC adaptor is used as the disconnect device. It shall remain readily operable and should
not be obstructed during intended use. To be completely disconnected the apparatus from
supply mains, the AC adaptor of the apparatus shall be disconnected from the mains socket
outlet completely.
* Never use an AC adaptor that is damaged, route power lead in a safe manner and make sure
it is not subjected to trapping or pinching. If the power lead is damaged refer to a qualified
service agent.
GB - 4
DVD CD
3. Use the number buttons to enter the title number and then the chapter number (DVD) or
the track number (CD).
4. Use ◄, ►,▼, ▲button moving to the next input. Repeat step 3 until programming is completed.
Note: press to go to next page for programming track 11 to 20.
5. Highlight the "PLAY" icon, press ENTER button to start the program play.
6. Press the button twice to stop the program playback and clear the program memory.
USB OR SD/MMC CARD PLAYBACK
You can connect a USB flash drive (not included) to the USB connector port or a SD/MMC
card (not included) to the memory expansion card slot on the unit to play DivX movies as well
as sound & picture files.
1. Plug the USB flash drive into the USB port on the unit. Plug the SD card into the memory
expansion card slot.
2. Press SOURCE button , then press▼ to select "Media". Press ►, ▲,▼ to select "USB" or
"SD" (When "MMC" or "SD" card is inserted, it displays "MMC" or "SD" instead.), then press
ENTER to confirm.
For operation of playing files on the USB flash drive or SD/MMC card, please refer to the section
"PLAYING MP3/DIVX/PICTURE FILES"
Note:
* It is recommended USB flash drive or the SD/MMC card is plugged when the unit is in OFF
mode.
* There are many USB devices in the market. We cannot guarantee to support all different
models. Please try another USB device if your device is not supported.
* Some SD/MMC card may be incompatible.
PLAYING MP3/DIVX/PICTURE FILES
This unit can play MP3, DivX and Picture files recorded on CD-R/CD-RW/ DVD+ R/DVD+RW
discs, USB flash drive and SD/MMC card.
1. Insert a disc.
2. The content of disc will be displayed on screen.
3. Press ◄, ►,▼, ▲ button to view and select the file that you want to play, then press ENTER
button to confirm the selected file and start playback.
4. Press button to stop playback.
GB - 9
2016/8/12 9:44:32
