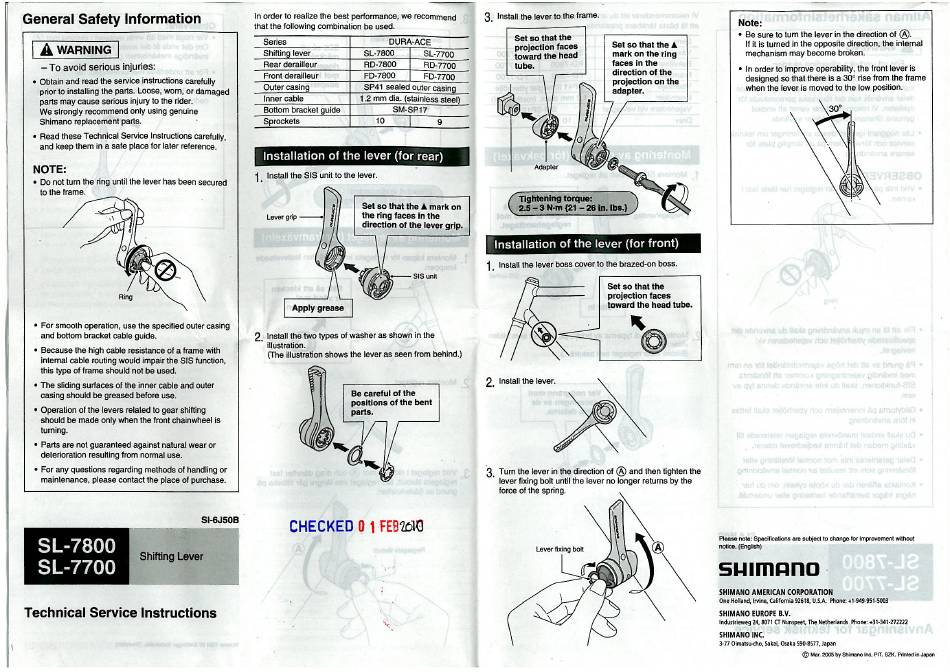

Shimano SL-7800 Montageanleitung

General Safety Information
A WARNING
—To avoid serious injuries:
• Obtain and read the service instructionscarefully
prior to installing the parts. Loose, worn, or damaged
parts may cause serious injury to the rider.
We strongly recommendonly using genuine
Shimano replacement parts.
• Read theseTechnical Service Instructionscarefully,
and keep them in a safe place for later reference.
NOTE:
• Do not tum the ring until the lever has been secured
to the frame.
Ring
• For smooth operation, use the specified outer casing
and bottom bracket cable guide.
• Because the high cable resistance Of a frame with
internal cable routing would impair the SIS function,
this type of frame should not be used.
• The sliding surfaces of the inner cable and outer
casing should be greased before use.
• Operation of the levers related to gear shifting
should be made only when the front chainwheel is
tuming.
• Parts are not guaranteed against natural wear or
deterioration resulting from normal use.
• For any questions regarding methods of handling or
maintenance, please contact the place of purchase.
Sl-6J50B
SL-7800
Shifting Lever
SL-7700
Technical Service Instructions
In order to realize the best performance, we recommend
that the following combination be used.
DURA-ACE
Series
Shifting lever SL-7800 SL-7700
Rear derailleur RD-7800 RD-7700
Front derailleur FD-7800
FD-7700
SP41 sealed outer casin
Outer casin
I .2 mm dia. (stainlessstee
Inner cable
SM-SP17
Bottom bracket uide
Sprockets 10
Installation of the lever (for rear)
1. Install the SIS unit to the lever.
Set so that the A mark on
the ring faces in the
Lever grip
direction of the lever grip.
;sxÉvms
O
SIS unit
Apply grease
Install the two types of washer as shown in the
2.
illustration.
(Theillustration shows the lever as seen from behind.)
Be careful of the
positions Ofthe bent
parts.
CHECKED O I FEBßO
3. Install the lever to the frame.
Set so that the
Set
projection faces
mark on the ring
toward the head
faces
tube.
direction
projection
adapter.
9
o
- s enh9tnoM
Adapter
Installation of the lever (for front)
1. Install the lever boss cover to the brazed-on boss.
Set so that
projection faces
toward
2.
Install the lever.
Turntheleverin thedirectionOf@and thentightenthe
3.
lever fixing bolt until the lever no longer returns by the
force of the spring.
Lever fixing bolt
Note:
• Besureto tumtheleverinthe directionof @
If it iSturned in the opposite direction, the internal
so that the A
mechanism may become broken.
in the
• In order to improve operability,the front lever is
of the
designedso that there is a 300rise from the frame
on the
when the lever is moved to the low position.
the
the head tube.
