Vision TC-HDMICAT+ Produkthandbuch Seite 4

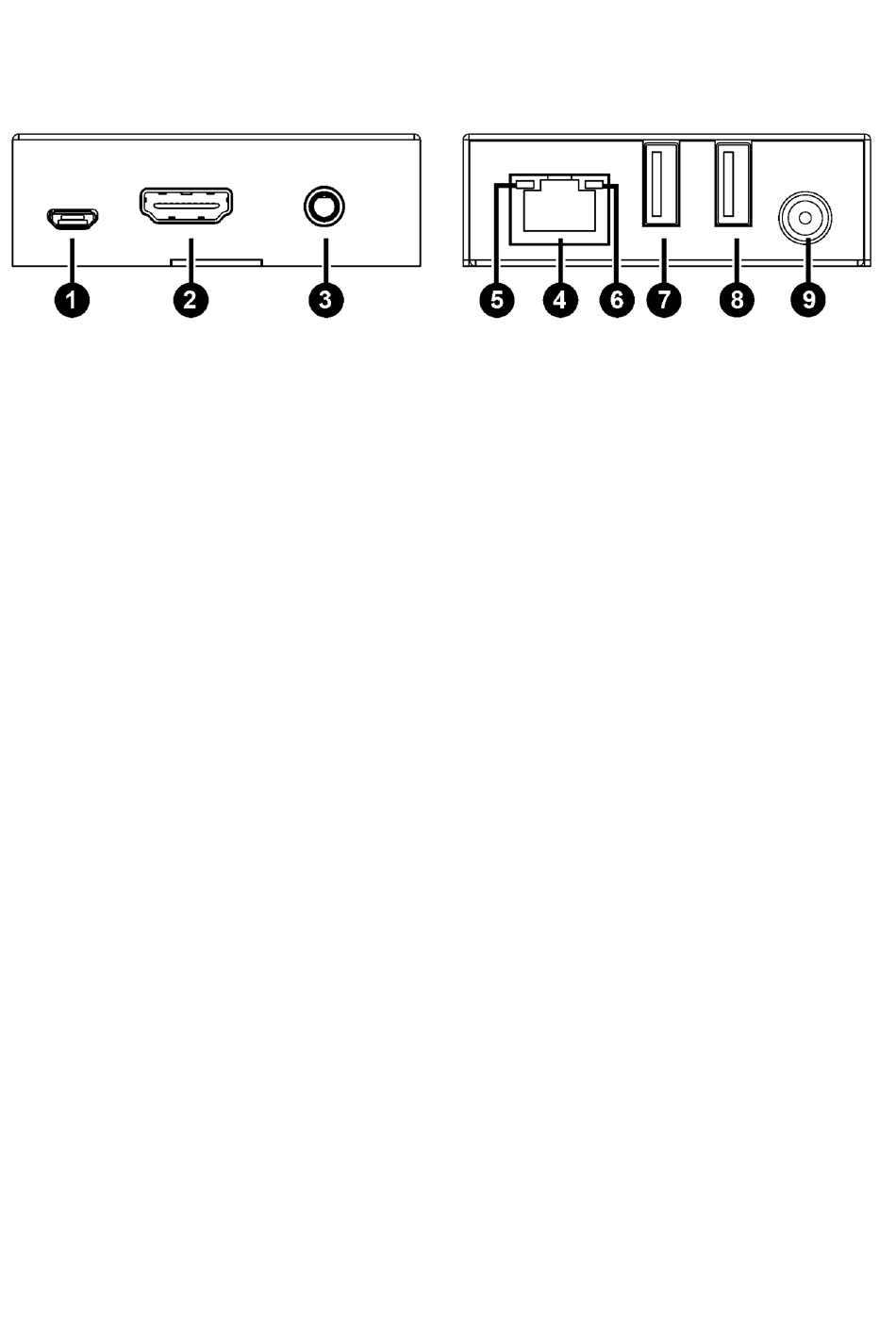

RECEIVER
1. MICRO-USB SERVICE PORT
For firmware updates
2. HDMI OUTPUT
Connect to display
3. 3.5 MM AUDIO OUTPUT
De-embedded stereo audio – line level
4. CAT6 OUTPUT
Links transmitter and receiver with CAT5 or CAT6 cable. Maximum cable length:
CAT6/6A/7: 4K 60 Hz 70 m
5. DATA LED - yellow
On: HDMI signal has HDCP
Flashing: HDMI signal does not have HDCP
Off: No HDMI signal
6. LINK LED - green
On: transmitter and receiver are connected to each other
Flashing: poor connection
Off: transmitter and receiver not connected
7. USB-A
Connect keyboard here. Supports USB 1.1.
8. USB-A
Connect mouse (or other item) here. Supports USB 1.1.
9. 12V/1A DC POWER
Only one power supply comes with this product. It can be used either at the transmitter or
receiver. Power is passed to the other end through the CAT6 cable.
4
