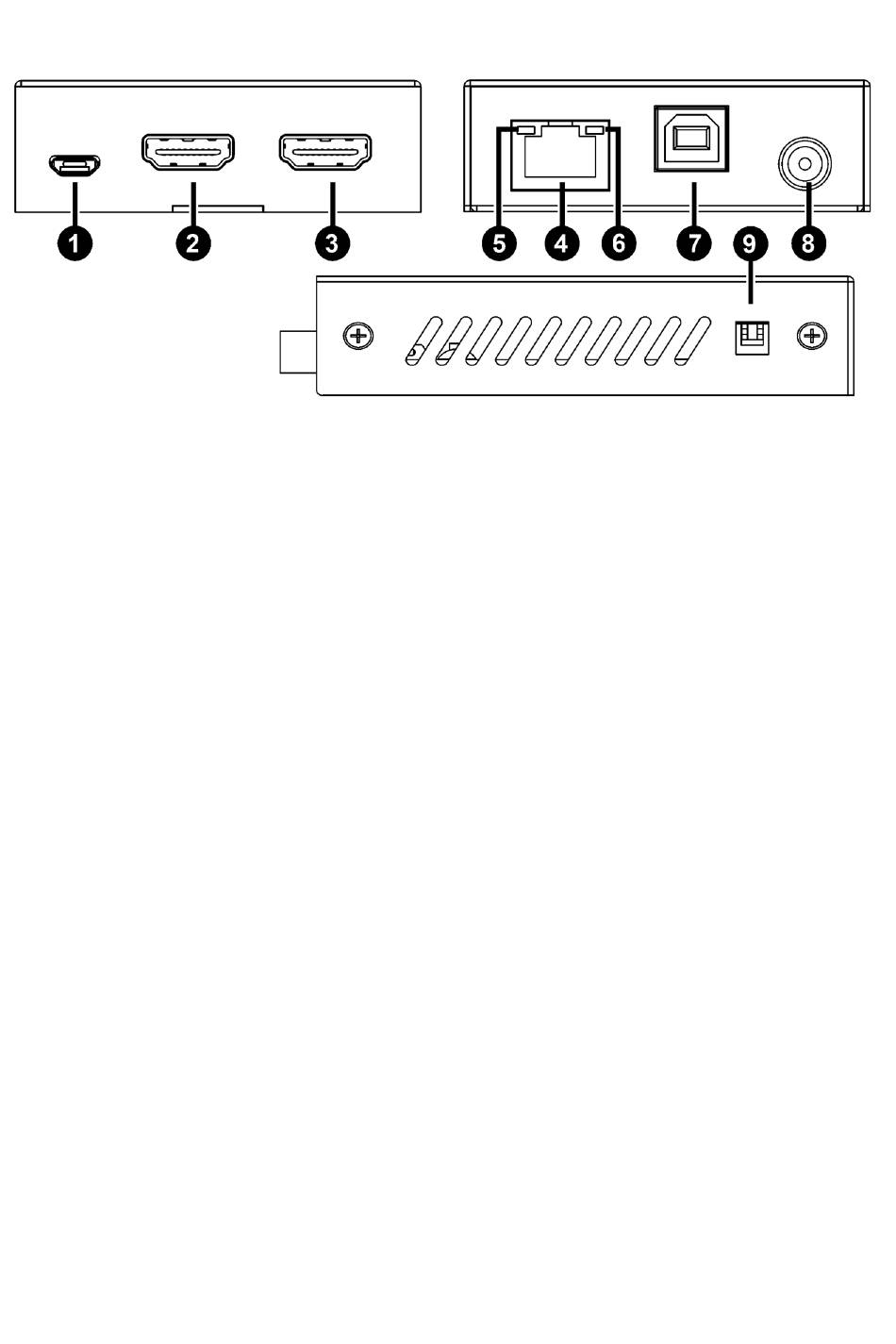

TRANSMITTER
1. MICRO-USB SERVICE PORT
For firmware updates
2. HDMI LOOP OUTPUT
Connect to local display like computer monitor
3. HDMI INPUT
Connect source like PC or laptop
4. CAT6 OUTPUT
Links transmitter and receiver with CAT5 or CAT6 cable. Maximum cable length:
CAT6/6A/7: 4K 60 Hz 70 m
5. DATA LED - yellow
On: HDMI signal has HDCP
Flashing: HDMI signal does not have HDCP
Off: No HDMI signal
6. LINK LED - green
On: transmitter and receiver are connected to each other
Flashing: poor connection
Off: transmitter and receiver not connected
7. USB-B
Connect PC here. Supports USB 1.1.
8. 12V/1A DC POWER
Only one power supply comes with this product. It can be used either at the transmitter or
receiver. Power is passed to the other end through the CAT6 cable.
9. EDID DIP SWITCH
UP position = 1, DOWN position = 0.
