Fig. 3
"y"

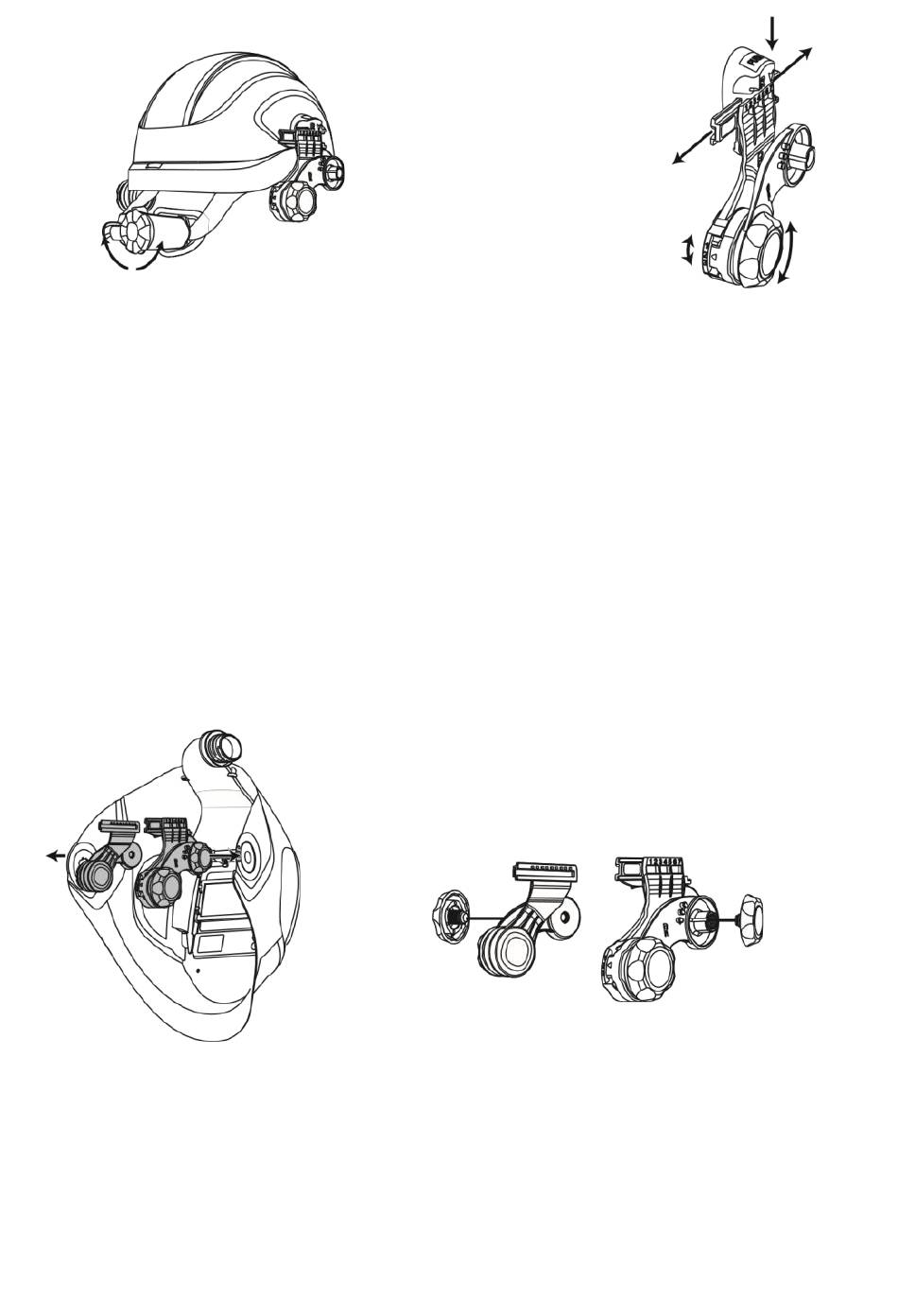

• HARD HAT ASSEMBLY
• Match each adapter with the correct side of the helmet shell. Note: L= Left Side R=Right
Side (See fig.5a).
• Unscrew main connection knob of each adapter (See fig.5b).
• Place each adapter into the helmet shell assembly points and screw main connection
knob until secure (See fig.5c).
• In accordance with the order of 1-4 in the figure, align the face seal with the Velcro inside
the helmet shell and make sure the face seal is closely attached to helmet shell (See
fig.6).
• Pull the elastic at face seal and put it on adapter (See fig.7).
• Insert adapter base into hard hat slots (See fig.8).
• Press "PUSH" button on adapter base and slide hard hat into helmet shell (See fig.9).
• Attach the fixing band on face seal to the headgear of hard hat (See fig.10).
• Adjust face seal to fit (See fig.11).
Fig.5a Fig.5b
7
fig.4
