This product is designed to protect the wearer against falling objects and consequential
brain injury and skull fractures. The product is made to absorb the energy of a blow by
partial destruction or damage to the shell and the harness and even though such damage
may not be readily apparent any product subjected to severe impact should be replaced.
Do not modify or remove any of the original component parts of the product, other than
those recommended by the manufacturer.
Products should not be adapted for the purpose of fitting attachments in any way not
recommended by the manufacturer.
Do not apply paints, solvents, adhesives or self-adhesive labels except in accordance with
instructions.
Any product may be adversely affected by certain chemicals.
For further information contact the manufacturer.
FITTING & ADJUSTMENT - STANDARD
For adequate protection the products must fit or be adjusted to the size of the user's head.
Ensure the strap under the chin is adequately tightened for optimum security. The chinstrap
can be adjusted using the rear slider if required (See fig.1).
For a secure fit adjust the headband at the rear of the product (See fig.2).
FITTING & ADJUSTMENT – WITH OPERATOR HELMET
By rotating the rear knob of hard hat headgear, overall perimeter of headgear can be made
larger or smaller to ensure that hard hat is comfortable and stable (see "Y" in fig 3).
Front and back bands will automatically self-adjust according to headform, and softpads suit
forehead and back of head perfectly, which will bring more comfort (See fig.4). If the
headband moves while tilting, re-adjust it until it is stable.
• ADJUSTING THE DISTANCE BETWEEN THE HELMET AND THE FACE
To adjust the distance between the user's face and lens by pressing the button down on
each adapter and then sliding forward or back.
• ADJUSTING ROTATION RANGE
Tilt adjustment is located on the right side of the helmet. To adjust the resting position and
rotation range, loosen tension knob, rotate lever to 1 of the 3 positions and tighten tension
knob (See fig.4).
USER ADVICE

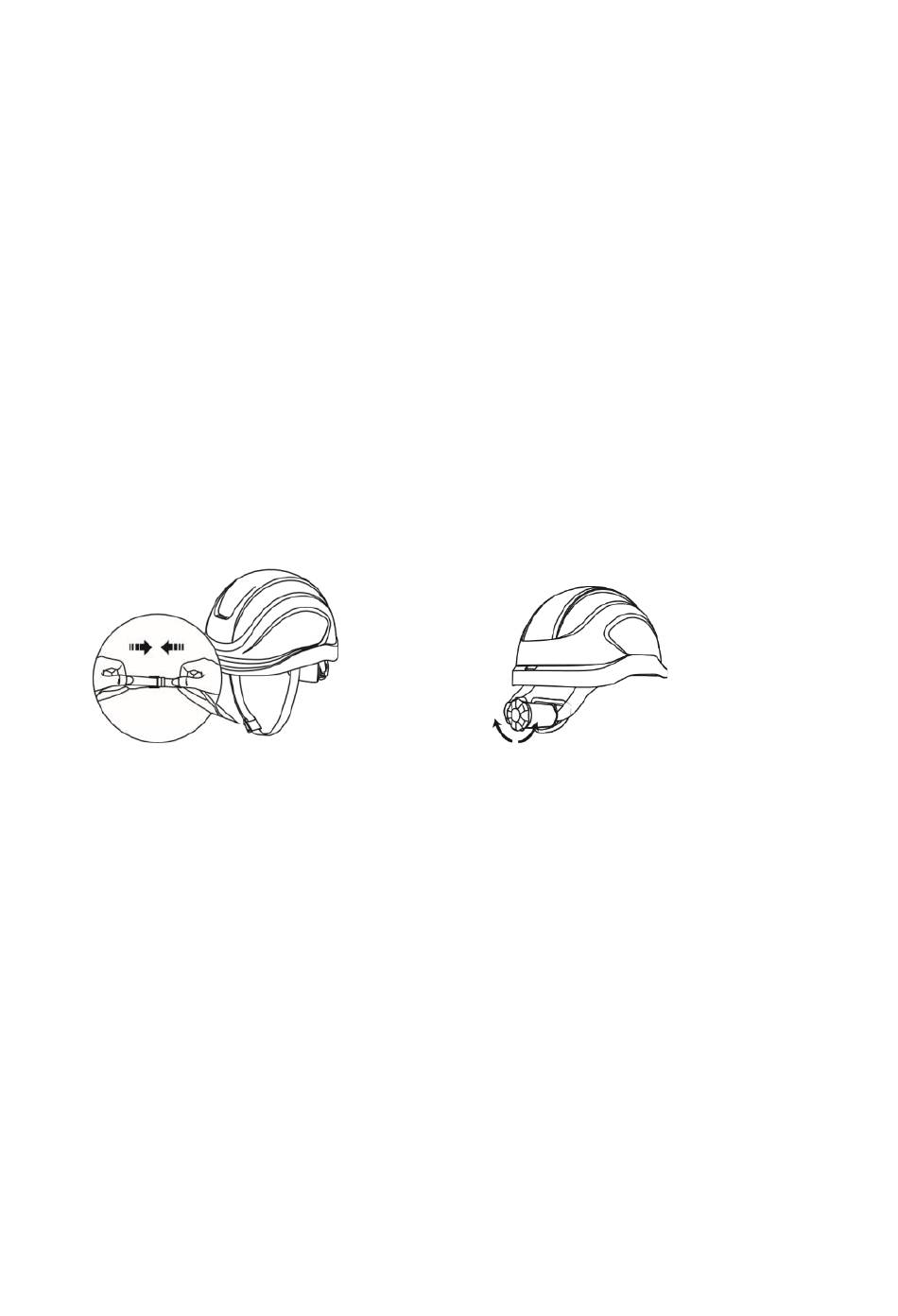

Fig.1
6
Fig.2
