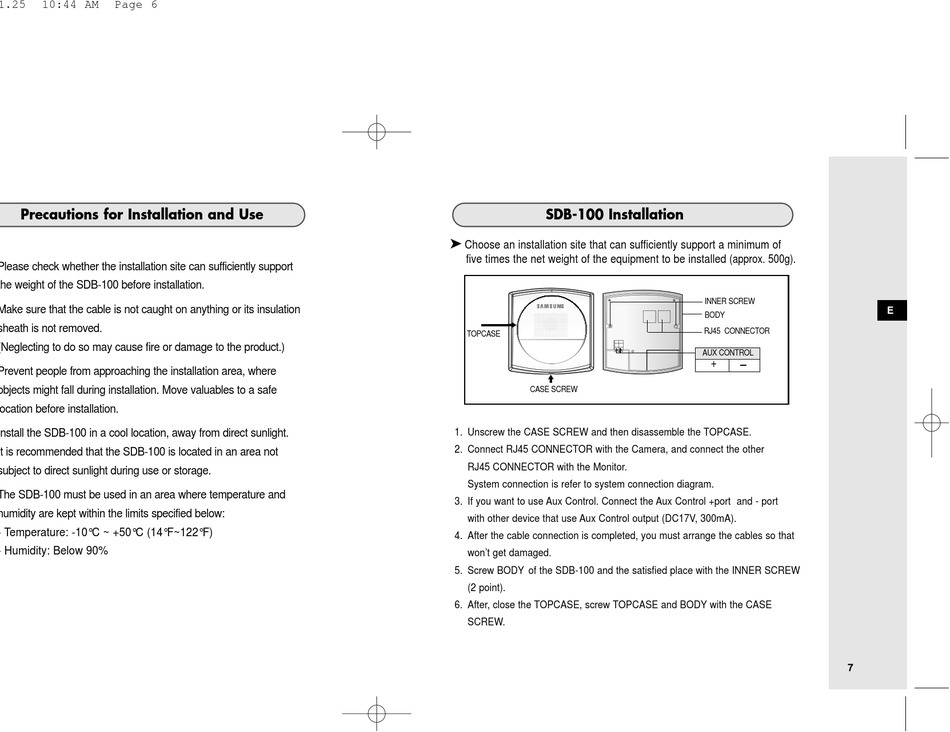

Precautions for Installation and Use
Please check whether the installation site can sufficiently support
the weight of the SDB-100 before installation.
Make sure that the cable is not caught on anything or its insulation
E
sheath is not removed.
(Neglecting to do so may cause fire or damage to the product.)
Prevent people from approaching the installation area, where
objects might fall during installation. Move valuables to a safe
location before installation.
Install the SDB-100 in a cool location, away from direct sunlight.
It is recommended that the SDB-100 is located in an area not
subject to direct sunlight during use or storage.
The SDB-100 must be used in an area where temperature and
humidity are kept within the limits specified below:
- Temperature: -10°C ~ +50°C (14°F~122°F)
- Humidity: Below 90%
6
SDB-100 Installation
Choose an installation site that can sufficiently support a minimum of
five times the net weight of the equipment to be installed (approx. 500g).
❖
TOPCASE
w
CASE SCREW
1. Unscrew the CASE SCREW and then disassemble the TOPCASE.
2. Connect RJ45 CONNECTOR with the Camera, and connect the other
RJ45 CONNECTOR with the Monitor.
System connection is refer to system connection diagram.
3. If you want to use Aux Control. Connect the Aux Control +port and - port
with other device that use Aux Control output (DC17V, 300mA).
4. After the cable connection is completed, you must arrange the cables so that
won't get damaged.
5. Screw BODY of the SDB-100 and the satisfied place with the INNER SCREW
(2 point).
6. After, close the TOPCASE, screw TOPCASE and BODY with the CASE
SCREW.
INNER SCREW
E
BODY
RJ45 CONNECTOR
AUX CONTROL
+
7
