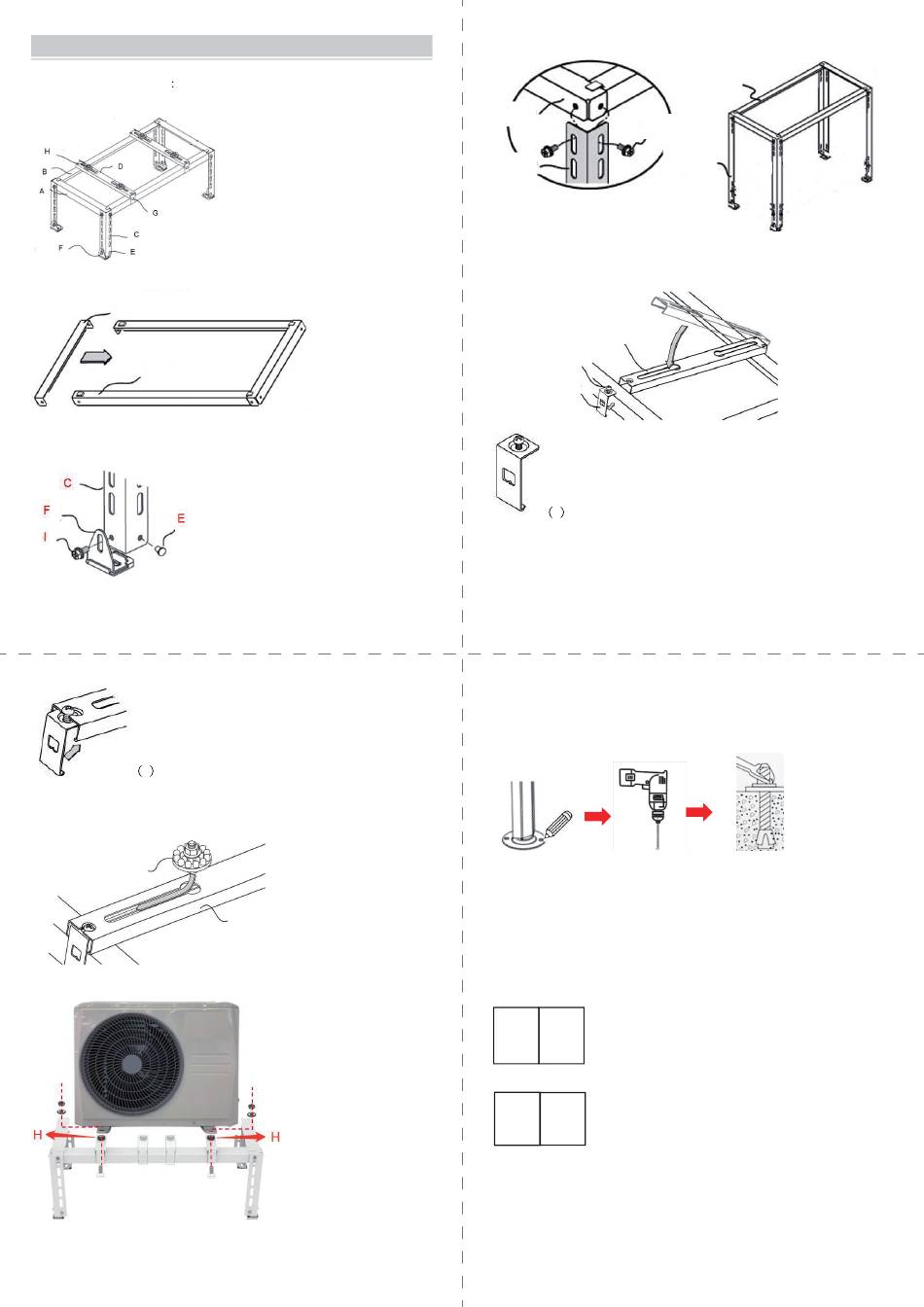

ASSEMBLY INSTRUCTIONS
Finished product graphics
Step1: Assemble the
longitudinal poles(A) with horizontal poles(B) to be a frame.
A
B B B B B B B B B B
Step2: Assemble the base(F) with the vertical pole(C), assemble them with
screw(I), insert the plastic cover(E).
2 Then insert the mounting plate to the support pole,
fasten the screw slowly.
Step5: Put the buffer pad(H) onto the support pole(D), fasten the AC on the
buffer pad.
D
Buffer pad
- 4 -
D
Support
pole
- 6 -
Step3: Assemble the group(1) and group(2) with screw component(I)
Group1
I
Group2
Step4: Put the Support pole(D) on the frame according to the AC size.
Insert the mounting plate(G) to the support pole.
D
Support
pole
Screw
Mounting
G
plate
1 Lock the screw with the mounting plate(G), do not fasten the
screw first.
Step6: Confirm the installation position and mark the hole positions, then
drill holes. Hammer the plastic tube of the expansion screw(J) into the hole.
Lock the expansion screw with the base.
