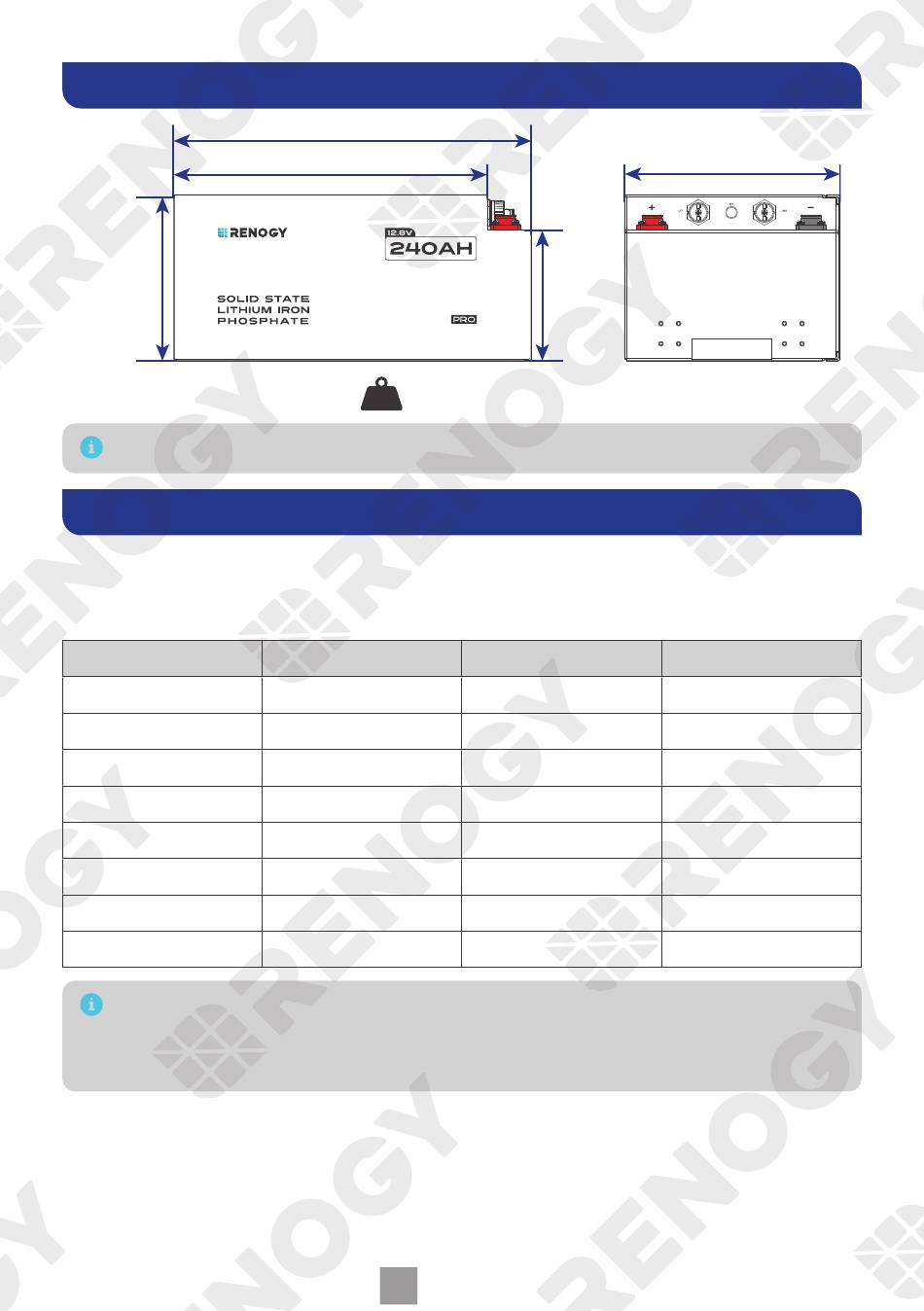

Dimensions

7.4 in
(188 mm)
Dimension tolerance: ±0.2 in (0.5 mm)

How to Size Battery Adapter Cables?

Use appropriately sized Battery Adapter Cables (sold separately) based on expected loads. Refer to
the table below for copper cable ampacities with different gauge sizes for up to 13 feet (4 m) cables.
Cables longer than 13 feet (4 m) may require thicker gauge wires to prevent excessive voltage drop in
undersized wiring.
Cable Gauge Size
14 AWG (2.08 mm²)
12 AWG (3.33 mm²)
10 AWG (5.26 mm²)
8 AWG (8.37 mm²)
6 AWG (13.3 mm²)
4 AWG (21.15 mm²)
3 AWG (26.67 mm²)
2 AWG (33.62 mm²)
The above values are from the NEC Table 310.16 for copper cables rated at 194°F (90°C),
operating at an ambient temperature of no more than 86°F (30°C). Please note that wire gauge
standards may vary due to factors such as temperature and installation conditions. In actual
applications, it is recommended to refer to the latest NEC standards.
15.94 in (405 mm)
14.21 in (361 mm)
56.22 lbs / 25.5 kg
Weight
Ampacity
25A
30A
40A
55A
75A
95A
115A
130A
EN
— 07 —
5.83 in
(148 mm)
Cable Gauge Size
1 AWG (42.41 mm²)
1/0 AWG (53.49 mm²)
2/0 AWG (67.43 mm²)
3/0 AWG (85.01 mm²)
4/0 AWG (107.22 mm²)
300 kcmil (152.1 mm²)
400 kcmil (202.8 mm²)
500 kcmil (253.5 mm²)
9.61 in (244 mm)
Ampacity
145A
170A
195A
225A
260A
320A
380A
430A
