Step 2: Pair the Renogy ONE Core with the Renogy app through Wi-Fi or by scanning the QR code
in Renogy ONE Core. On Renogy ONE Core, go to "System > Settings > Pair with App" to
get the QR code. For pairing instructions on Renogy ONE Core, see
Manual.

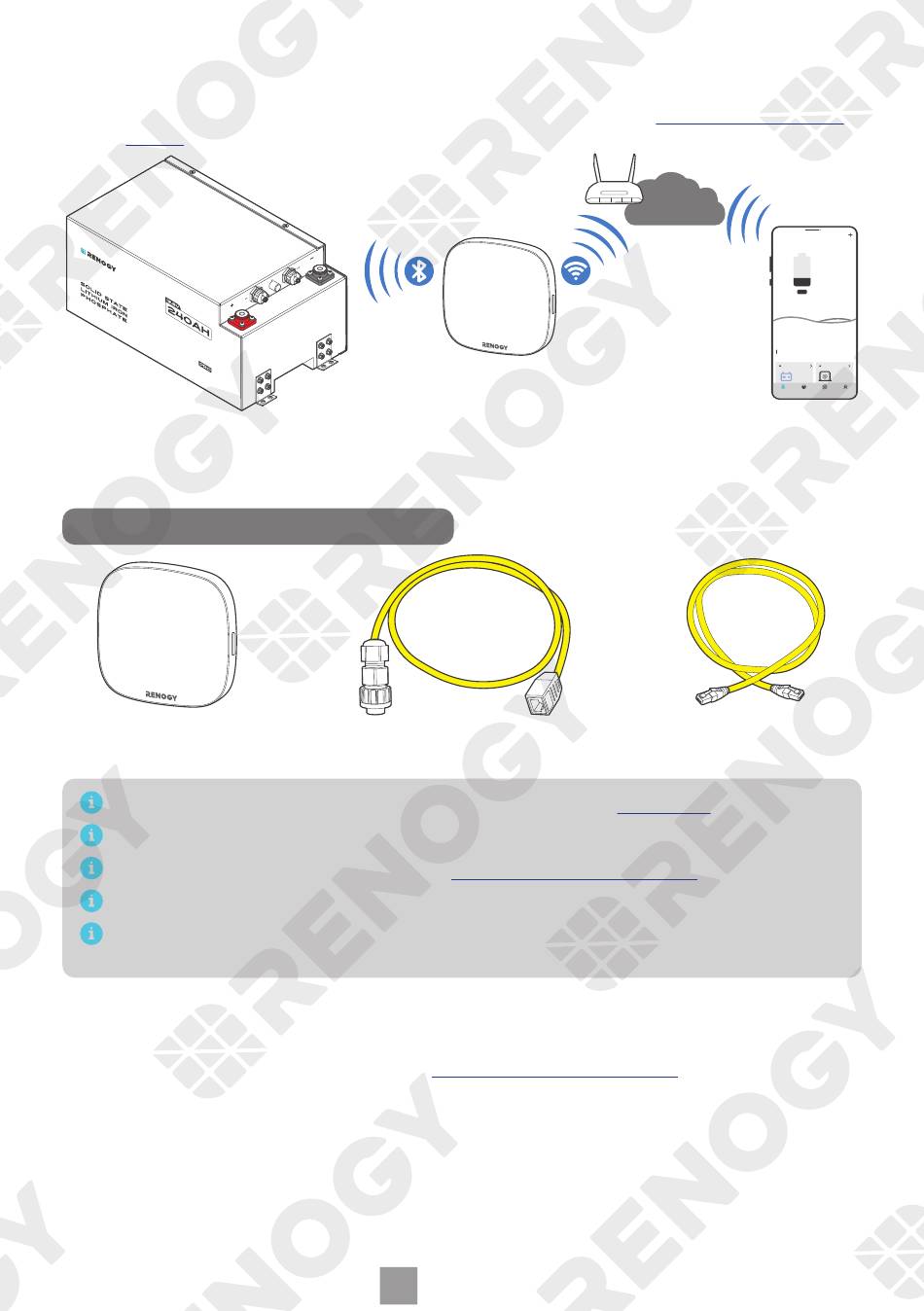

Wired Long-Range Monitoring (Daisy Chain Network)

If long-range communication and programming are required, connect the battery to Renogy ONE
Core through wires, and the Renogy ONE Core to the Renogy app through Wi-Fi.
Recommended Components & Accessories
*RENOGY ONE Core
Components and accessories marked with "*" are available on renogy.com.
Ensure that the Renogy ONE Core is powered on before the connection.
For instructions on Renogy ONE Core, see
Ensure the battery does not communicate with any other device.
Select the appropriate communication cable (sold separately) according to the distance
between devices. The communication cable should be less than 19.6 feet (6 m).
Step 1: Remove the Terminator Plug from the Renogy device at either end of the daisy chain.
Step 2: Connect the Renogy ONE Core to the free CAN Communication Port on the Renogy device
with the Communication Adapter Cable (sold separately) and RJ45 Ethernet Cable. For wiring
instructions on Renogy ONE Core, see
Step 3: Pair Renogy ONE Core with the Renogy app. Monitor and program the complete system on
the Renogy ONE Core or the Renogy app.
*7-Pin CAN Communication Terminal Plug to
RJ45 Port Adapter Cable
Renogy ONE Core User
EN
— 19 —
Renogy ONE Core User
Manual.
Renogy ONE Core User
