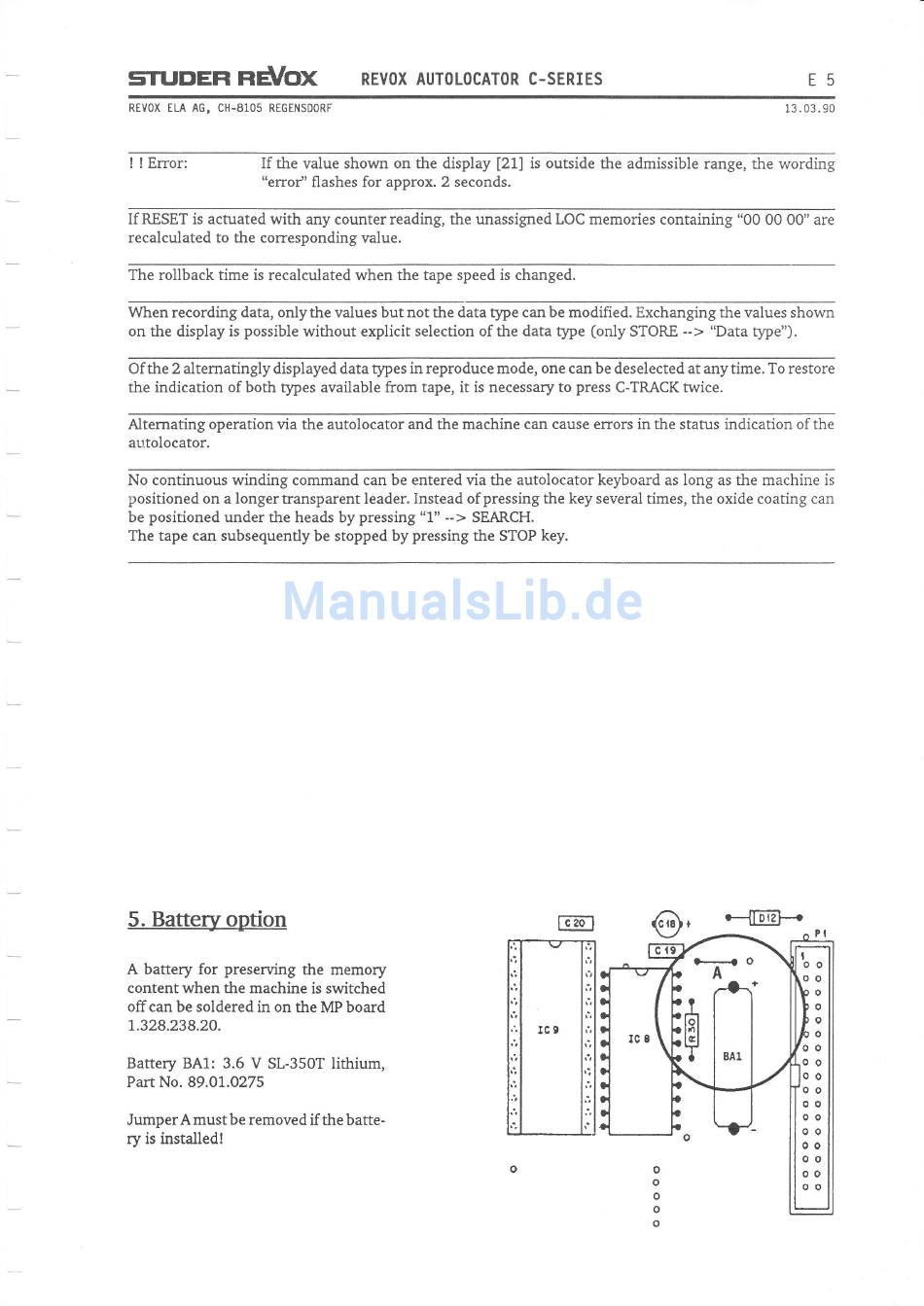

REVOX AUTOLOCATOR
C-SERIES
E5
REVOX
ELA
AG,
CH-8105
REGENSDORF
13.03.90
!
!Eror:
If the
value shown on
the display
[21]
is outside
the admissible range, the wording
"errot''flashes for approx. 2
seconds.
If
RXSET
is actuated
with
any counter reading, the
unassigned LOC
memories containing "00 00 00"
are
recalculated to the corresponding value.
The rollback time
is recalculated
when the tape
speed is changed.
When recording data, onlythe
values
but not
the data
qpe
can be
modified. Exchanging
the values
shown
on the display is possible
without explicit
selection of
the data type (only
STORE
-->
"Data type").
Of
the
2
alternatingly
displayed data types in reproduce mode, one can be deselected
at
any time.
To
restore
the indication of both types available from tape,
it
is necessary
to
press C-TRACK twice.
Alternating operation via the autolocator
and the machine can cause errors in the status
indication
of the
autolocator.
No continuous
winding
command
can be entered
via the autolocator keyboard
as
long
as
the machine
is
positioned
on a
longer transparent
leader.
Instead of pressing the key
several
times, the oxide coating
can
be
positioned
under the
heads
by pressing
"1."
-->
SEARCH.
The tape can subsequently
be
stopped by pressing the
STOP
key.
A battery for preserving
the
memory
content when the machine
is
switched
offcan
be soldered
in
on
the
MP board
1,.328.238.20.
Battery BAL:
3.6 V
SL-350T
lithium,
Part No.
89.01,.0275
JumperAmustbe
removed
if
the
batte-
ry is installed!
fc?ö-l
*{trEl-
;----{
A
-a rl
tlll
I
lsr:
I
o
o
o
o
o
o
o
o
o
o
o
o
o
o
0
o
o
I
o
o
o
o
o
o
o
o
o
o
o
q
