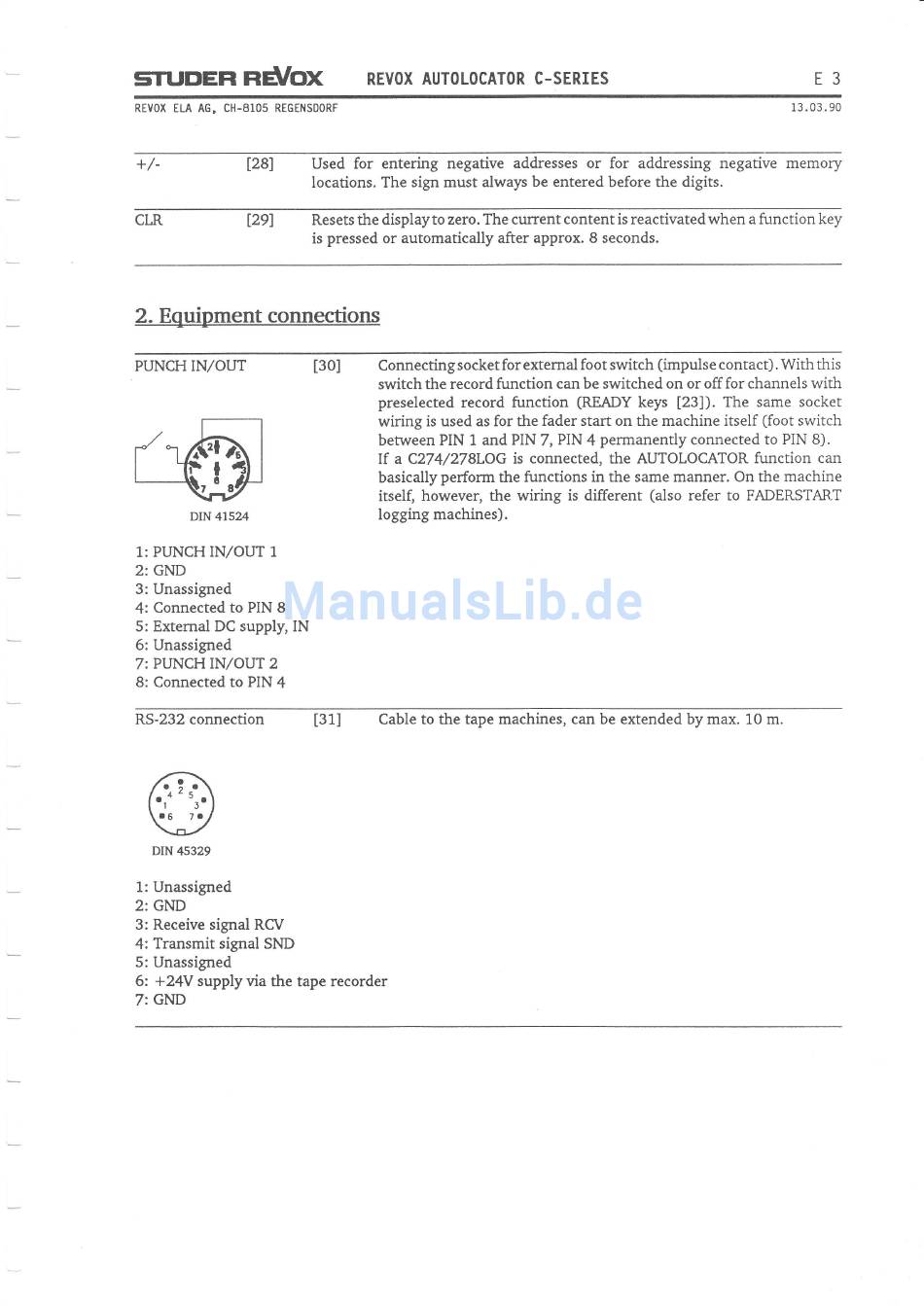

5TUDER RÄ/OX
REVOX AUTOLOCATOR
C-SERIES
E3
REVoX
ELA
AG, Cll-8105
REGENSDoRF
13.03.90
t28l
Used
for
entering negative
addresses
or for
addressing negative memory
locations. The sign
must always
be
entered before
the digits.
CLR
I29l
Resets
the
displaytozero.
The
cur"rent
content
is
reactivatedwhen
a
function key
is pressed
or automatically after approx. 8
seconds.
2. Equipment connections
PUNCH
IN/OUT
DIN 41524
1: PUNCH
IN/OUT
1
2:
GND
3: Unassigned
4: Connected to PIN
8
5: External
DC
supply,
IN
6: Unassigned
7:
PUNCH
IN/OUT
2
8: Connected to
PIN
4
t3ol
Connecting
socket
for
external foot
switch (impulse
contact)
.
With
this
switch
the record
function
can
be
switched
on or
offfor
channels
with
preselected
record
function
(READY
keys [23]). The
same
socket
wiring
is used
as
for the fader start
on
the machine
itself (foot switch
between PIN
1
and PIN
7,
PIN 4
permanently connected to PIN 8).
lf
a
C274/278LOG
is
connected,
the
AUTOLOCATOR
function
can
basically perform the
functions in the
same
manner.
On
the machine
itself, however,
the wiring is different
(also
refer
to
FADERSTART
logging machines).
A
\-7
DIN 45329
RS-232
connection
t31l
Cable
to the tape machines, can
be
extended by
max.
10 m.
1:
Unassigned
2:
GND
3:
Receive
signal
RCV
4: Transmit signal
SND
5: Unassigned
6:
+24V supply via the tape recorder
7:
GND
