ASSEMBLY INSTRUCTIONS
Finished product graphics

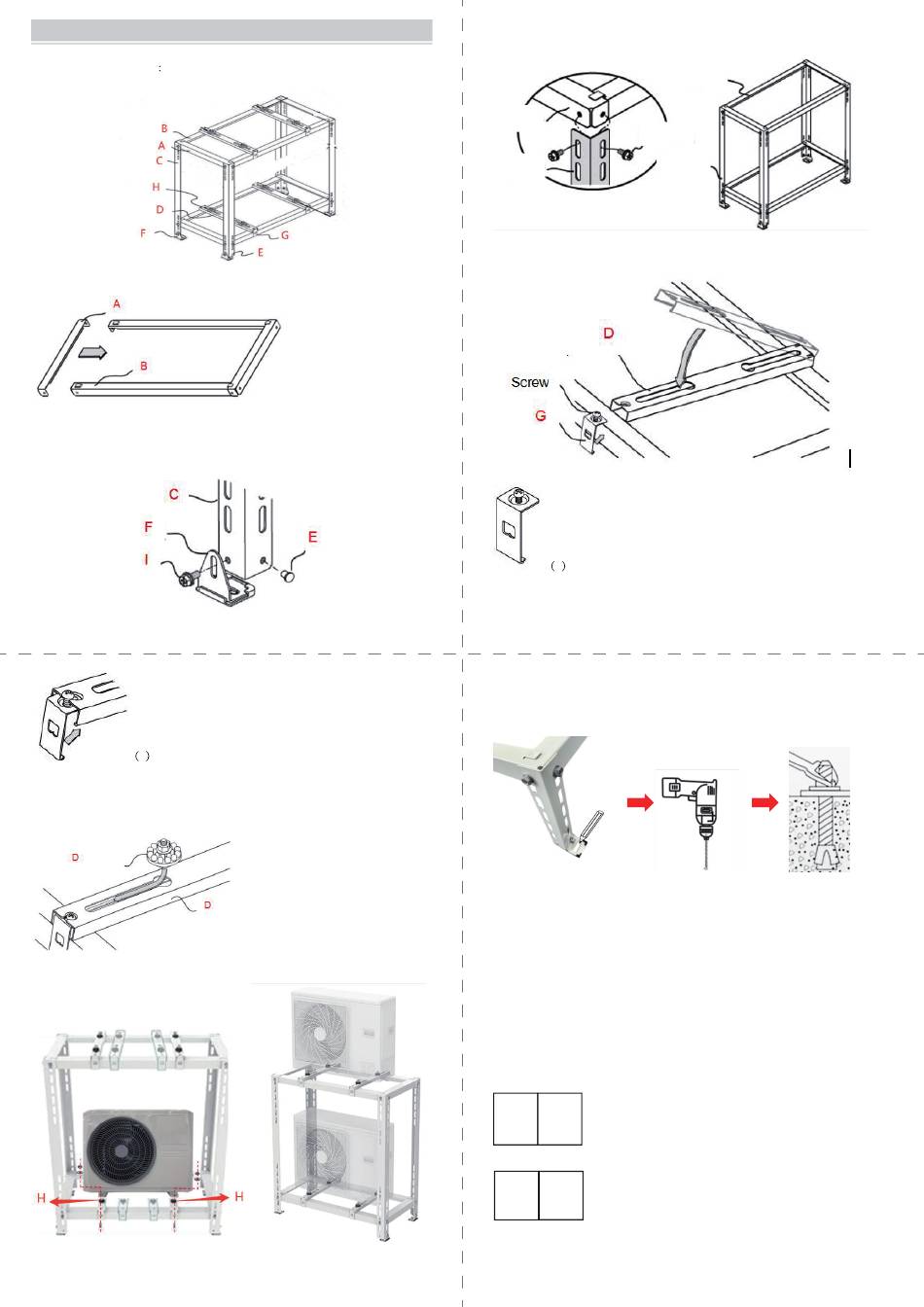

Step1: Assemble the longitudinal poles(A) with horizontal poles(B) to be a frame.
Step2: Assemble the base(F) with the vertical pole(C) , assemble them with
screw(I), install the plastic cover(E).
2 Then insert the mounting plate to the support pole, fasten
the screw slowly.
Step5: Put the buffer pad(H) onto the support pole(D).
fasten the AC on the buffer pad(H). Install another AC on the top layer.
- 4 -
- 6 -
Step3: Assemble the group(1) and group(2) with screw component(I) .
Group1
I
Group2
Group2
Step4: Put the Support pole(D) on the frame according to the AC size. Insert the
mounting plate(G) to the support pole.
1 Lock the screw with the mounting plate(G), do not fasten the screw
first.
Step6: Confirm the installation position and mark the hole positions, then drill holes.
Hammer the plastic tube of the expansion screw(J) into the hole. Lock the
expansion screw with the base.
