SHARP

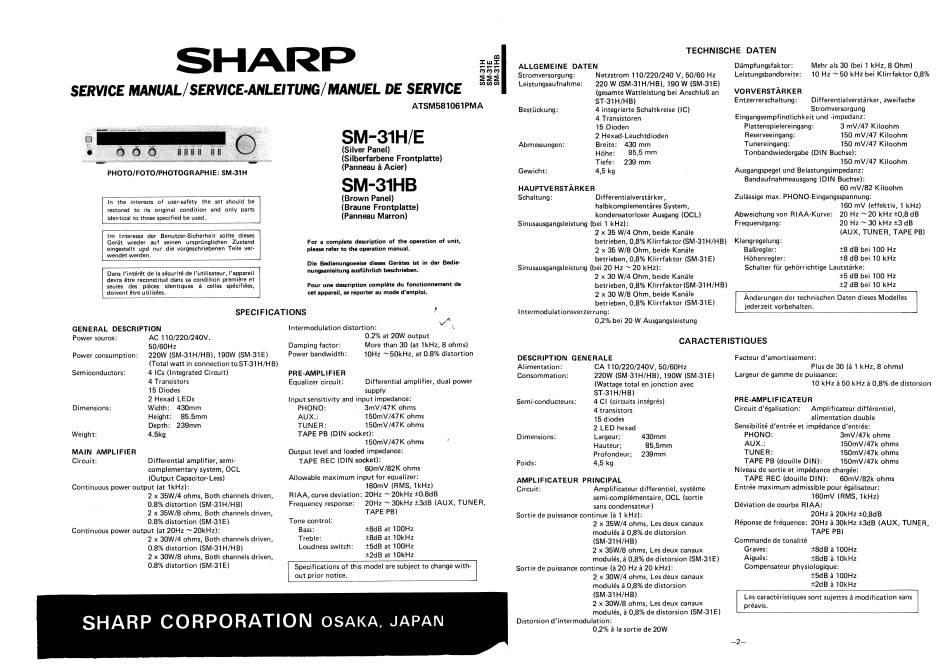

SERVICE MANUAL SERVICE-ANLEITUNG MANUEL DE SERVICE
000
nn
PHOTO/FOTO/PHOTOGRAPHIE:
SM-31H
In the
interests
of
user-safety
the
set should
be
restored
to
its original
condition
and only
parts
identical
to those specified be used.
1m
Interesse
der
Benutzer-Sicherheit
sollte
dieses
Gerät
wieder
auf
seinen
ursprünglichen
Zustand
eingestellt upd nur die vorgeschriebenen Teile ver-
wendet
werden.
Dans I'intérét
de la sécurité de I'utilisateur.
l'appareil
devra étre reconstitué
dans sa condition
premiére et
seules des piéces identiques
å celles spécifiées,
doivent
étre utilisées.
SPECIFICATIONS
GENERAL
DESCRIPTION
AC 110/220/240V.
Power
source:
50/60Hz
220W (SM-31H/HB),
190W (SM-31E)
Power consumption:
(Total watt in connection
to ST-31 H/HB)
Sem iconductors:
4 ICs (Integrated Circuit)
4 Transistors
15 Diodes
2 Hexad
LEDs
Width:
430mm
Dimensions:
Height:
85.5mm
Depth:
239mm
Weight:
4.5kg
MAIN
AMPLIFIER
Circuit:
Differential
amplifier, semi-
complementary
system, OCL
(Output Capacitor-Less)
Continuous power output (at IkHz):
2 x 35W/4
ohms, Both channels driven,
0.8% distortion
(SM-31H/HB)
2 x 35W/8 ohms, Both channels driven,
0.8% distortion
(SM-31E)
Continuous power output (at 20Hz
20kHz):
2 x 30W/4 ohms, Both channels driven,
0.8% distortion
(SM-31H/HB)
2 x 30W/8 Ohms, Both channels driven,
0.8% distortion
(SM-31E)
SHARP
CORPORATION
ATSM581061PMA
SM-31H/E
(Silver Panel)
(Silberfarbene Frontplatte)
(Panneau å Acier)
SM-31HB
(Brown Panel)
(Braune Frontplatte)
(Panneau Marron)
For a complete description of the operation of unit,
please refer to the operation manual.
Die Bedienungsweise dieses Gerätes ist in der Bedie•
nunFanIeitung ausführlich beschrieben.
Pour une description
complåte
du fonctionnement
de
cet appareil, se reporter
au mode d'emploi.
Intermodulation
distortion
:
0.2% at 20W output
More than 30 (at IkHz, 8 ohms)
Damping
factor:
IOHz —50kHz, at 0.8% distortion
Power
bandwidth
:
PRE-AMPLIFIER
Equalizer circuit:
Differential
amplifier,
dual power
supply
Input sensitivity and input impedance:
3mV/47K
ohms
PHONO:
150mV/47K
ohms
AUX.:
150mV/47K
ohms
TUNER:
TAPE PB (DIN socket):
150mV/47K
Ohms
Output level and loaded impedance:
TAPE REC (DIN socket):
60mV/82K
ohms
Allowable maximum input for equalizer:
160mV
(RMS, 1kHz)
RIAA, curve deviation: 20Hz —20kHz ±O.8dB
Frequencyresponse: 20Hz
30kHz ±3dB (AUX,
TUNER,
TAPE
"B)
Tone
control:
±8dB
at IOOHz
Bass:
±8dB
at 10kHz
Treble:
±5dB
at IOOHz
Loudness
switch:
±2dB
at 10kHz
Specifications of this model are subject to change with-
out prior notice.
OSAKA, JAPAN
TECHNISCHE
ALLGEMEINE
DATEN
Neustrom
110/220/240
V, 50/60
Stromversorgung:
Leistungsaufnahme:
220 W (SM-31H/HB),
190 W (SM-31E)
(gesamte Wattleistung bei Anschluß an
ST-31H/HB)
Bestückung:
4 integrierte Schaltkreise (IC)
4 Transistoren
15 Dioden
2 Hexad-Leuchtdioden
Abmessungen:
430
mm
Breite:
85,5 mm
Höhe:
Tiefe:
239 mm
Gewicht:
4,5 kg
HAUPTVERSTÄRKER
Schaltung:
Differentialverstärker,
halbkomplementäres
System,
kondensatorloser
Ausgang (OCL)
Sinusausgangsleistung (bei I kHz):
2 x 35 W/4 Ohm, beide Kanäle
betrieben,
0,8% Klirrfaktor
(SM-31 H/HB)
2 x 35 W/8 Ohm, beide Kanäle
betrieben, 0,8% Klirrfaktor
(SM-31 E)
Sinusausgangsleistung (bei 20 Hz
20 kHz):
2 x 30 W/4 Ohm, beide Kanäle
betrieben,
Klirrfaktor
(SM-31H/HB)
2 x 30 W/8 Ohm, beide Kanäle
betrieben,
Klirrfaktor
(SM-31 E)
I ntermodu
lationsverzerrung:
02% bei 20 W Ausgangsleistung
CARACTERISTIQUES
DESCRIPTION
GENERALE
Alimentation:
CA 110/220/240V,
50/60Hz
Consommation:
220W (SM-31 H/HB), 190W (SM-31E)
(Wattage total en jonction
avec
ST81H/HB)
4 CI (circuits intégrés)
Semi-conducteurs:
4 transistors
15 diodes
2 LED
hexad
Dimensions:
Largeur;
430mm
Hauteur;
85,5mm
Profondeur;
239mm
Poids:
kg
AMPLIFICATEUR
PRINCIPAL
Amplificateur
differentiel,
systéme
Circuit:
semi-complémentaire,
OCL (sortie
sans condensateur)
Sortie de puissance continue
(å I kHz):
2 x 35W/4
ohms, Les deux canaux
modulés å 0,8% de distorsion
(SM-31H/HB)
2 x 35W/8
ohms, Les deux canaux
modulés, å
de distorsion (SM•31 E)
Sortie de puissance continue (å 20 Hz å 20 kHz):
2 x 30W/4
ohms, Les deux canaux
modulés
å 0,8% de distorsion
(SM-31H/HB)
2 x 30W/8 ohms, Les deux canaux
modulés, å
de distorsion
(SM-31E)
Distorsion
d'intermodulation:
0,2% å la sortie de 20W
DATEN
Dämpfungsfaktor:
Mehr als 30 (bei I kHz, 8 Ohm)
Leistungsbandbreite:
10 Hz —50
kHz
bei Klirrfaktor
Hz
VORVERSTÄRKER
Entzerrerschaltung:
Differentia Iverstärker, zweifache
Stromversorgung
Eingangsempfindlichkeit
und -impedanz:
Plattenspielereingang:
3 mV/47
Kiloohm
Reserveeingang:
150 mV/47
Kiloohm
Tunereingang:
150 mV/47
Kiloohm
Tonbandwiedergabe
(DIN Buchse):
150 mV/47
Kiloohm
Ausgangspegel
und Belastungsimpedanz:
Bandaufnahmeausgang (DIN Buchse):
60 mV/82
Kiloohm
Zulässige max. PHONO-Eingangsspannung:
160 mV (effektiv,
Abweichung von R IAA-Kurve:
20 Hz
20 kHz
Frequenzgang:
20 Hz —30
kHz
(AUX, TUNER, TAPE PB)
Klangregelung:
dB bei 100 Hz
Baßregler:
Höhenregler:
dB bei 10 kHz
Schalter für gehörrichtige
Lautstärke:
dB bei 100 Hz
dB bei 10 kHz
Anderungen der technischen Daten dieses Modelles
jederzeit
vorbehalten.
Facteur
d'amortissement:
Plus de 30 (å 1 kHz, 8 ohms)
Largeur de gamme de puissance:
10 kHz å 50 kHz å 0,8% de distorsion
PRE-AMPLIFICATEUR
Circuit d'égalisation:
Amplificateur
différentiel,
alimentation
double
Sensibilité d'entrée et impédance d'entrée:
PHONO:
3mV/47k
ohms
AUX.:
150mV/47k
ohms
TUNER:
150mV/47k
ohms
TAPE PB (douille
DIN):
150mV/47k
ohms
Niveau de sortie et impédance chargée:
TAPE
REC (douille
DIN):
60mV/82k
ohms
Entrée maximum admissible pour égalisateur:
160mV (RMS, 1kHz)
Déviation
de courbe
RIAA:
20Hz
å 20kHz
Réponse de fréquence: 20Hz å 30kHz ±3dB (AUX. TUNER,
TAPE PB)
Commande
de tonalité
Graves:
±8dB
å IOOHz
Aigués:
±8dB
å 10kHz
Compensateur physiologique:
±5dBå
IOOHz
±2dB
å 10kHz
Les caractéristiques sont sujettes å modification
préavis.
—2—
1 kHz)
dB
±3 dB
sans
