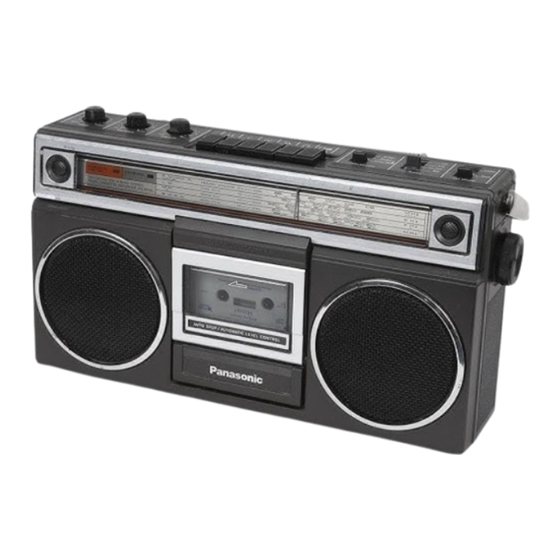

Panasonic RX-5012LS Serviceanleitung

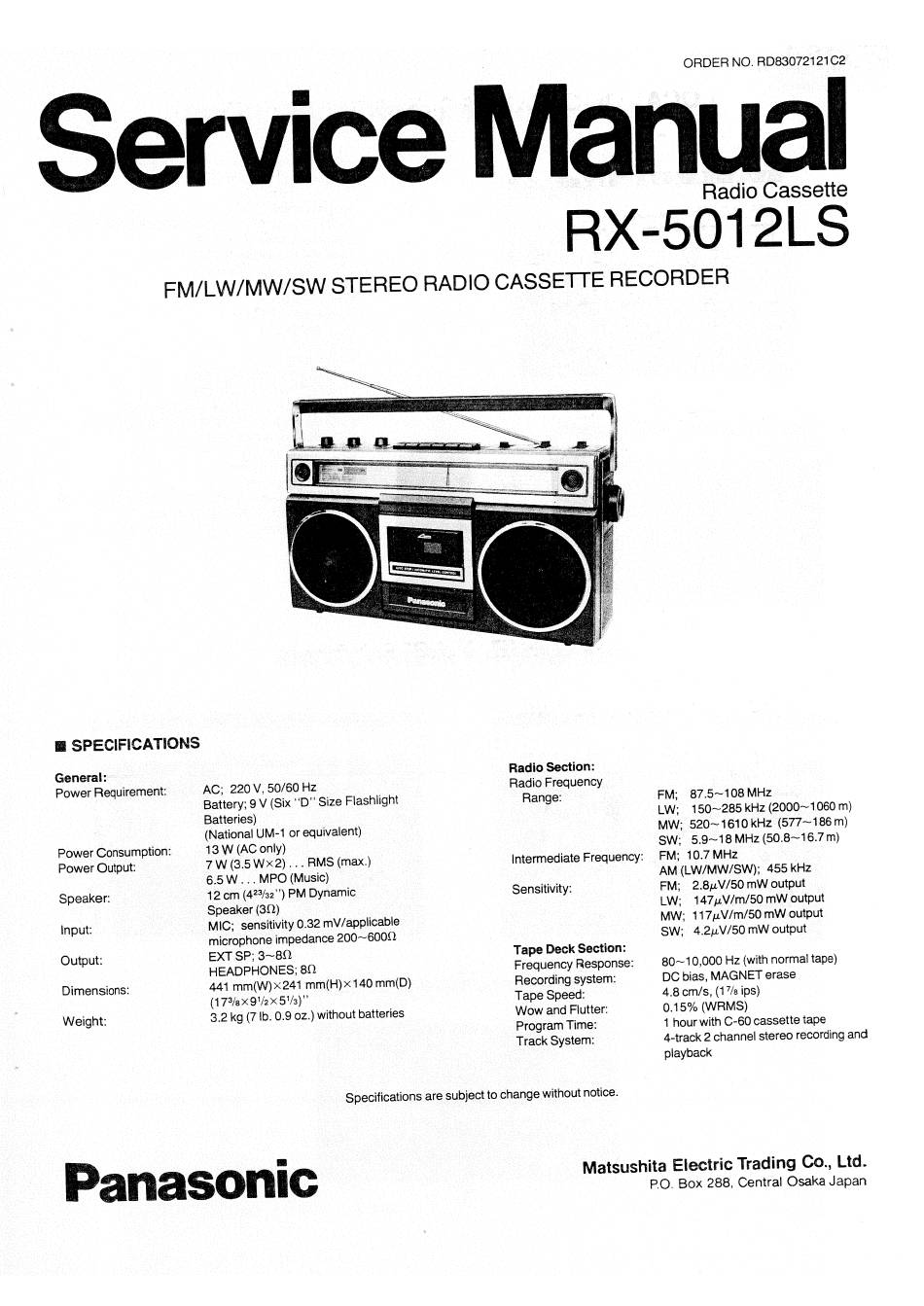

Service
FM/LW/MW/SW
SPECIFICATIONS
General:
AC; 220 V, 50/60 Hz
Power Requirement:
Battery; 9 V (Six "D" Size Flashlight
Batteries)
(National I-JM-I or equivalent)
Power Consumption: 13 W (AC only)
Power Output: 7 W (3.5 wx2)
6.5 W . .. MPO (Music)
Speaker: 12 cm (423/32")PM Dynamic
Speaker (30)
MIC; sensitivity 0.32 mV/applicable
Input:
microphone impedance 200—6000
Output: EXT sp; 3—80
HEADPHONES;
441 mm(W)x241
Dimensions:
Weight: 3.2 kg (7 lb. 0.9 oz.) without batteries
Panasonic
STEREO RADIO
. RMS (max.)
80
mm(D)
Specifications are subject to change without notice.
Manual
RX-5012LS
CASSETTE RECORDER
Radio Section:
Radio Frequency
Range: FM;
LW;
MW; 520—1610kHz
SW;
Intermediate Frequency: FM; 10.7 MHz
AM (LW/MW/SW);
Sensitivity: FM;
LW;
MW;
SW;
Tape Deck Section:
Frequency Response•
Recording system: DC bias, MAGNET erase
Tape Speed: 4.8 cm/s, (1 7/8ips)
Wow and Flutter: 0.15% (WRMS)
Program Time: 1 hour with C-60 cassette tape
Track System: 4-track 2 channel stereo recording and
playback
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
ORDER NO. RD83072121 C2
Radio Cassette
87.5--108 MHz
150—285 kHz (2000—1060 m)
(577—186m)
5.9—18 MHz (50.8—16.7 m)
455 kHz
2.8gV/50 mw output
147gV/m/50 output
117gV/m/50mW output
4.2gV/50mW output
Hz (with normal tape)
