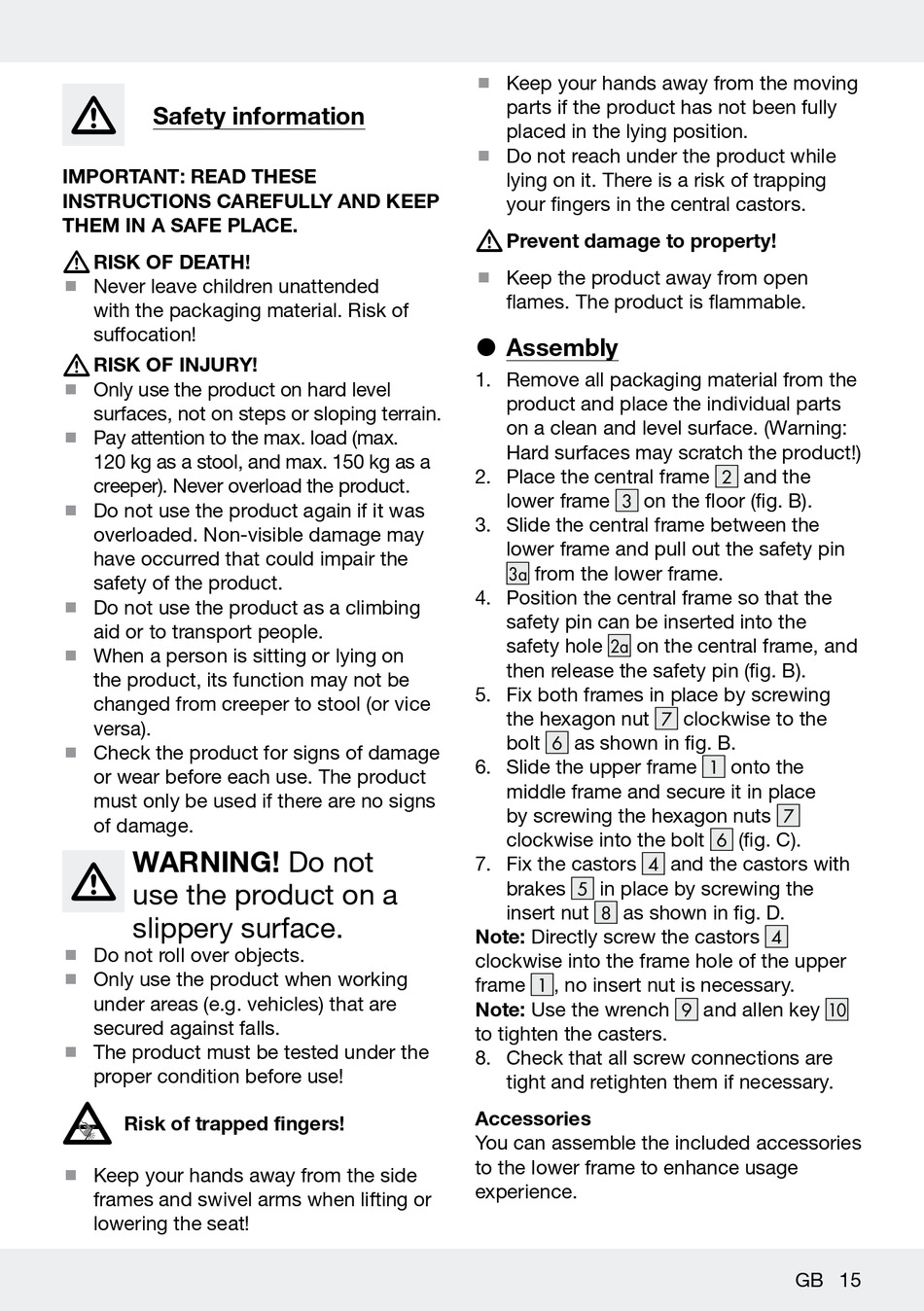

Safety information

IMPORTANT: READ THESE
INSTRUCTIONS CAREFULLY AND KEEP
THEM IN A SAFE PLACE.

RISK OF DEATH!

m
Never leave children unattended
with the packaging material. Risk of
suffocation!

RISK OF INJURY!

m
Only use the product on hard level
surfaces, not on steps or sloping terrain.
Pay attention to the max. load (max.
120 kg as a stool, and max. 150 kg as a
creeper). Never overload the product.
Do not use the product again if it was
overloaded. Non-visible damage may
have occurred that could impair the
safety of the product.
Do not use the product as a climbing
aid or to transport people.
When a person is sitting or lying on
the product, its function may not be
changed from creeper to stool (or vice
versa).
Check the product for signs of damage
or wear before each use. The product
must only be used if there are no signs
of damage.
WARNING! Do not
use the product on a
slippery surface.
Do not roll over objects.
Only use the product when working
under areas (e.g. vehicles) that are
secured against falls.
The product must be tested under the
proper condition before use!
Risk of trapped fingers!
Keep your hands away from the side
frames and swivel arms when lifting or
lowering the seat!
Keep your hands away from the moving
parts if the product has not been fully
placed in the lying position.
Do not reach under the product while
lying on it. There is a risk of trapping
your fingers in the central castors.
Prevent damage to property!
m
Keep the product away from open
flames. The product is flammable.
˜ Assembly
1. Remove all packaging material from the
product and place the individual parts
on a clean and level surface. (Warning:
Hard surfaces may scratch the product!)
2. Place the central frame
lower frame on the floor (fig. B).
3 ] [
3. Slide the central frame between the
lower frame and pull out the safety pin
from the lower frame.
3a ] [
4. Position the central frame so that the
safety pin can be inserted into the
safety hole on the central frame, and
[ 2a ]
then release the safety pin (fig. B).
5. Fix both frames in place by screwing
the hexagon nut
bolt as shown in fig. B.
[ 6 ]
6. Slide the upper frame
middle frame and secure it in place
by screwing the hexagon nuts
clockwise into the bolt
7. Fix the castors
4 ] [
brakes in place by screwing the
5 ] [
insert nut as shown in fig. D.
[ 8 ]
Note: Directly screw the castors
clockwise into the frame hole of the upper
frame , no insert nut is necessary.
1 ] [
Note: Use the wrench
to tighten the casters.
8. Check that all screw connections are
tight and retighten them if necessary.
Accessories
You can assemble the included accessories
to the lower frame to enhance usage
experience.
and the
2 ] [
clockwise to the
[ 7 ]
onto the
[ 1 ]
[ 7 ]
(fig. C).
6 ] [
and the castors with
4 ] [
and allen key
[ 9 ] [ 10 ]
GB 15
