Deye Spring Serie Benutzerhandbuch Seite 5

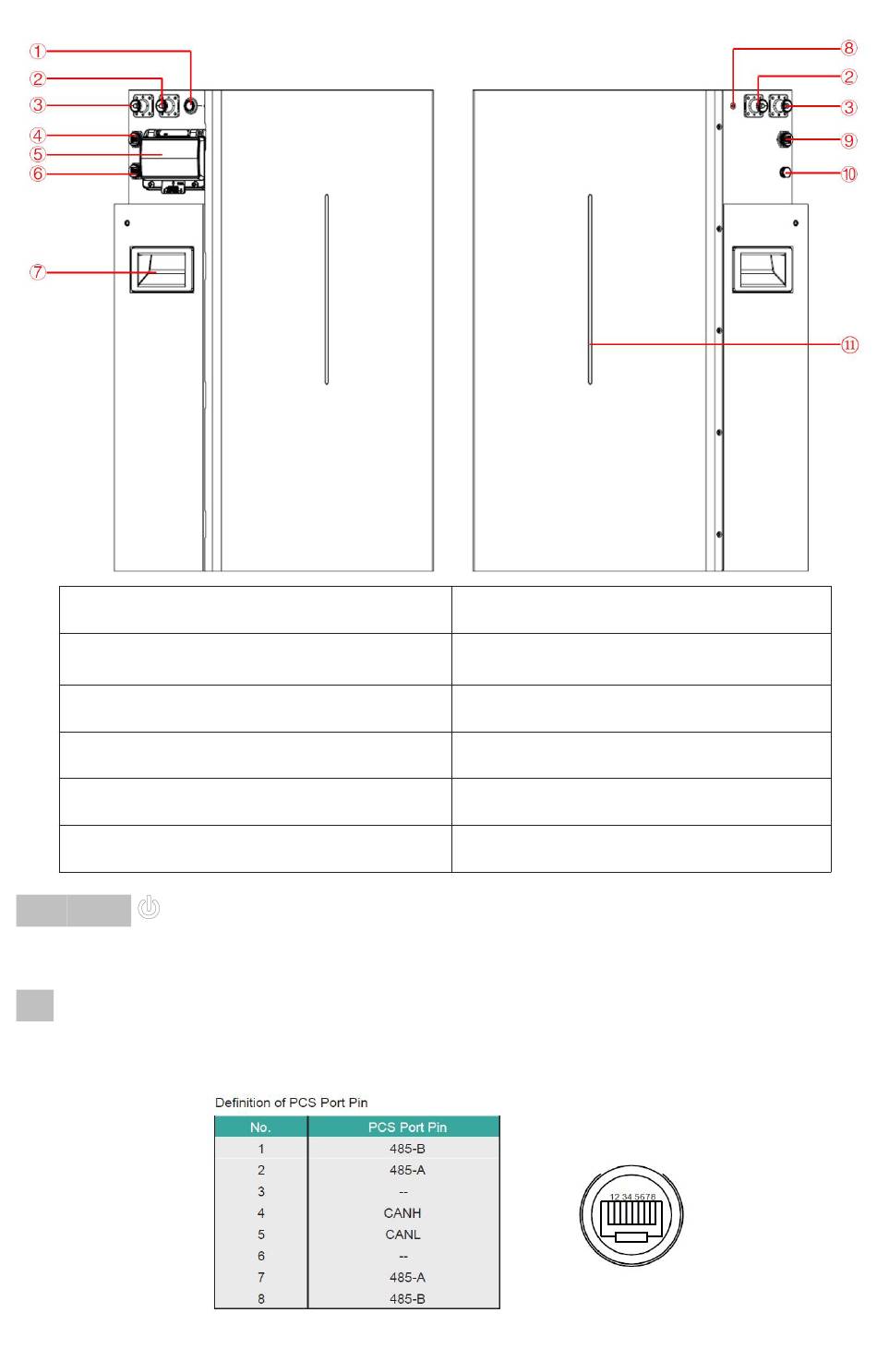

1. BMS Switch
2. Battery negative-
3. Battery positive+
4. Inverter CAN/RS485 port PCS
5. Micro circuit breaker
6. Parallel communication port IN
BMS Switch
BMS Switch: to turn ON/OFF the whole battery BMS standby, no power output.
PCS
Inverter communication terminal: (RJ45 port) follow the CAN protocol (baud rate: 500K),
used to output battery information to the inverter.
7. Handle
8. Grounding bolt
9. Parallel communication port OUT
10. Breather valve
11. Battery indicators
