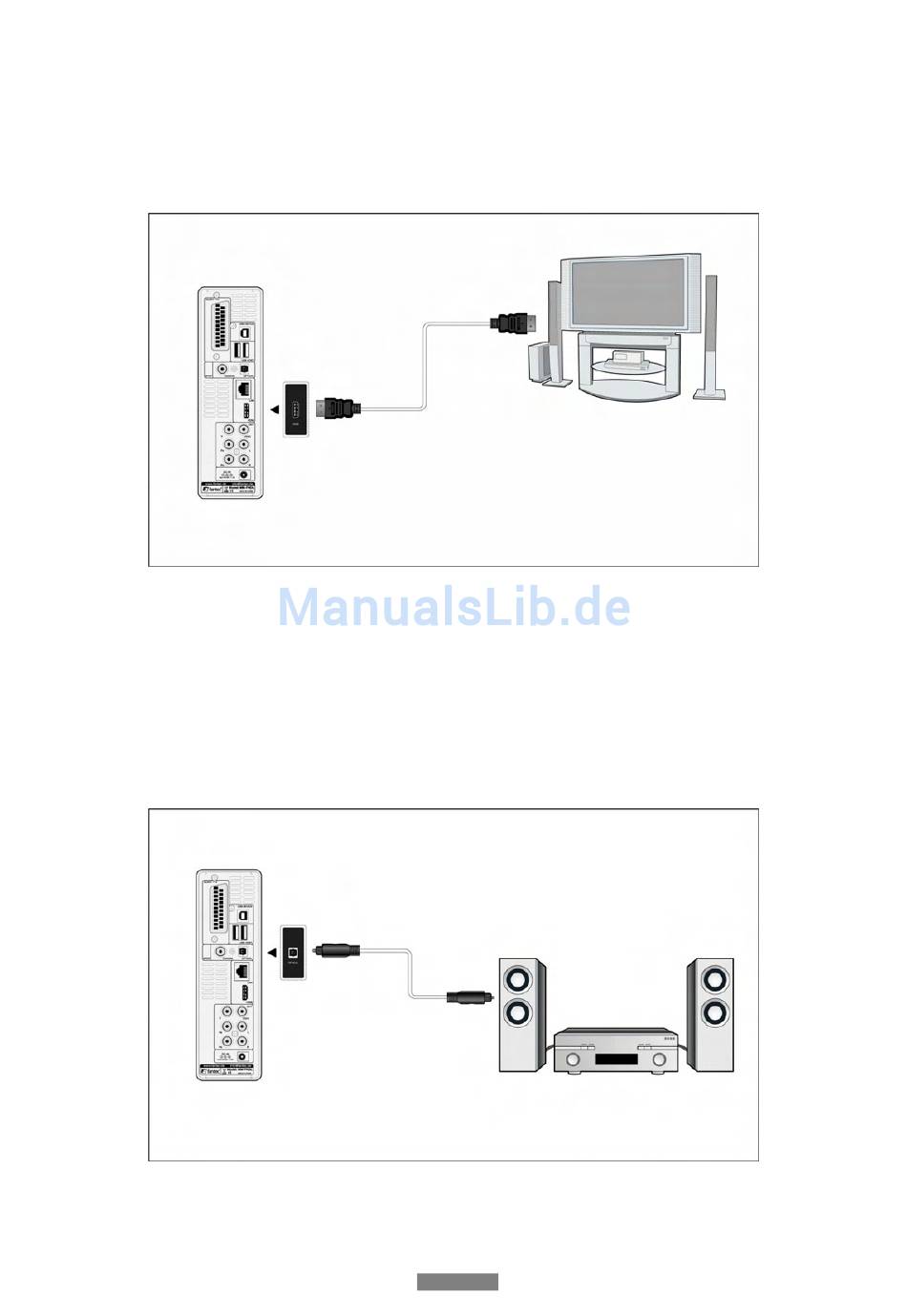

1.4.4.4 HDMI OUT
(1) Follow the picture and plug one connector on your HDMI cable to the player's HDMI jack;
(2) Follow the picture and plug the other connector on your HDMI cable to the TV's HDMI jack.
Note: The HDMI cable is an optional accessory sold separately.
In this way, you can have the highest quality video and audio via a single cable.

1.4.5 Connecting to an Digital Amplifier

(1) Follow the picture and plug in the RCA connector on your coaxial cable to the player's
S/PDIF Coaxial jack. Or if you use optical fiber, please plug in the Toslink connector on your
optical fiber to the player's S/PDIF Optical jack;
(2) Follow the picture and plug in the other connector on your coaxial cable or optical fiber to
the digital audio device (digital amplifier or decoder).
Note: Optical fiber and coaxial cable are not supplied.
In this way, you can enjoy powerful Dolby Digital or MPEG sound. (Please refer to '3.1
Changing Audio Settings' for configuration)
