TOOLS REQUIRED: One (1) Phillips screwdriver, one (1) small flat screwdriver
Estimated assembly time 30-60 minutes. (Note the assembly time is only approximate
and individual assembly experience may vary.)
INCORRECTLY CONNECTED PARTS MAY RESULT IN AN UNSTABLE LADDER OR
LADDER FAILURE WHICH CAN CAUSE FALLING AND PERSONAL INJURY OR DEATH.

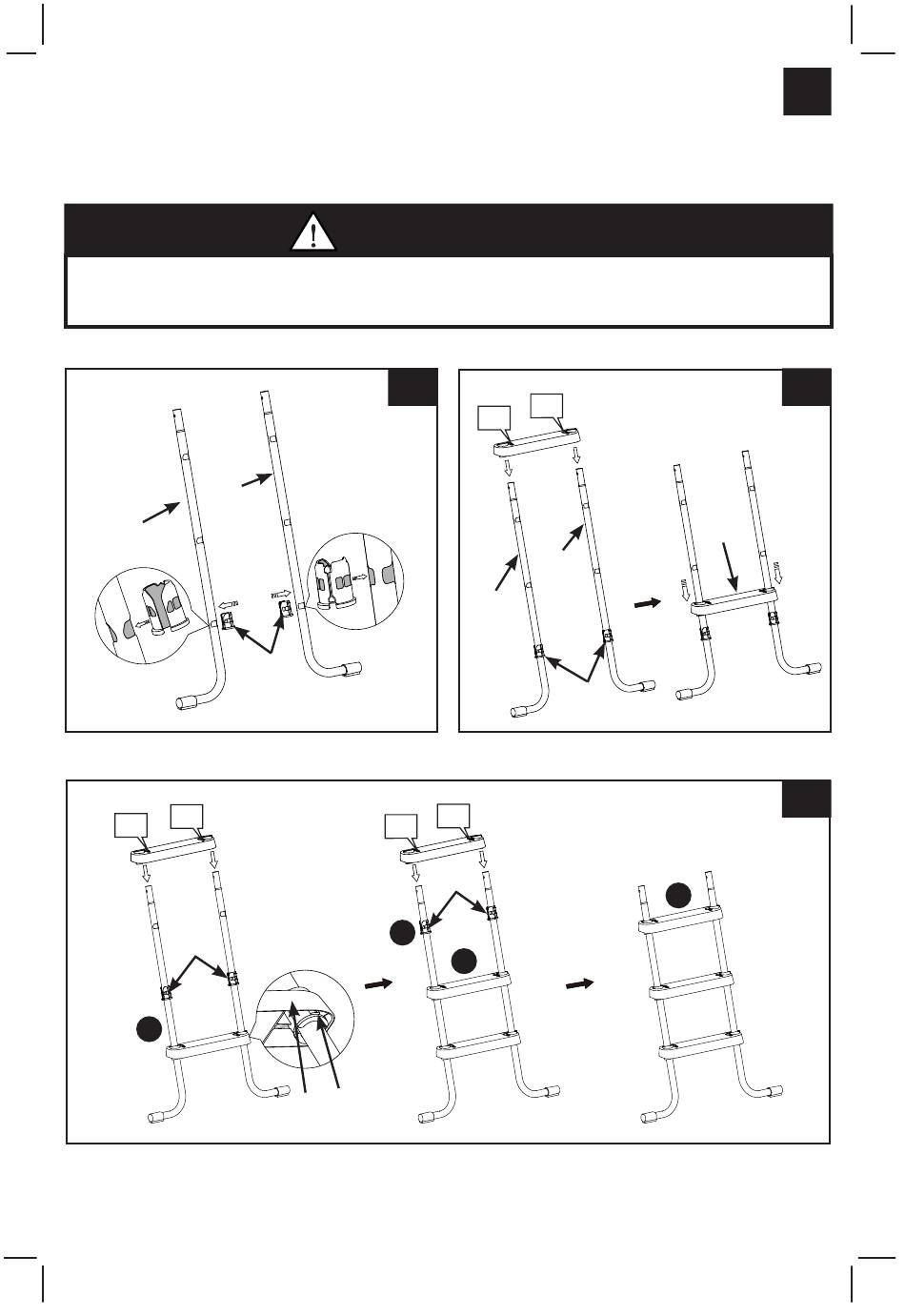

1. SIDE A LEGS ASSEMBLY (refer to figures 1.1 through 1.3):
A
7
6
IMPORTANT: Ensure the J-shaped legs are pointing outwards before installing the steps.
B
A
B
A
9
1
S AVE THESE INSTRUCTIONS
