The DALI2 Coupler for VISION Sensors features a SELECT Button,
Sensitivity Adjustment, Light Sensor, and LED Indicator. To confirm
wiring connections quickly press the SELECT Button. If DALI voltage
is present the LED Indicator will turn on. Another quick press to the
SELECT Button will turn off the LED Indicator, otherwise it will switch off
after 30 seconds.
The Sensitivity Adjustment allows the lights to be set from bright to dark.
The Light Sensor can be adjusted in its sensitivity by a potentiometer for
optimize measurement window usage. At the recommended mounting
height of 4-5 to 5 meters, the Sensitivity adjustment should be set to a
value of 1. If mounting at a higher height, you may want to increase the
adjustment value.

Resetting to Factory Defaults

With the power connected to the Coupler, press and hold the SELECT
Button for about 10 seconds until the LED Indicator blinks red for 4
seconds. The Coupler is then reset to the factory default settings.
NOTE: Resetting to factory default settings will delete the DALI short address and require the device to be re-commissioned.
1
L L N N GND GND LS NS DA- DA+ DA- DA+
To Sensor

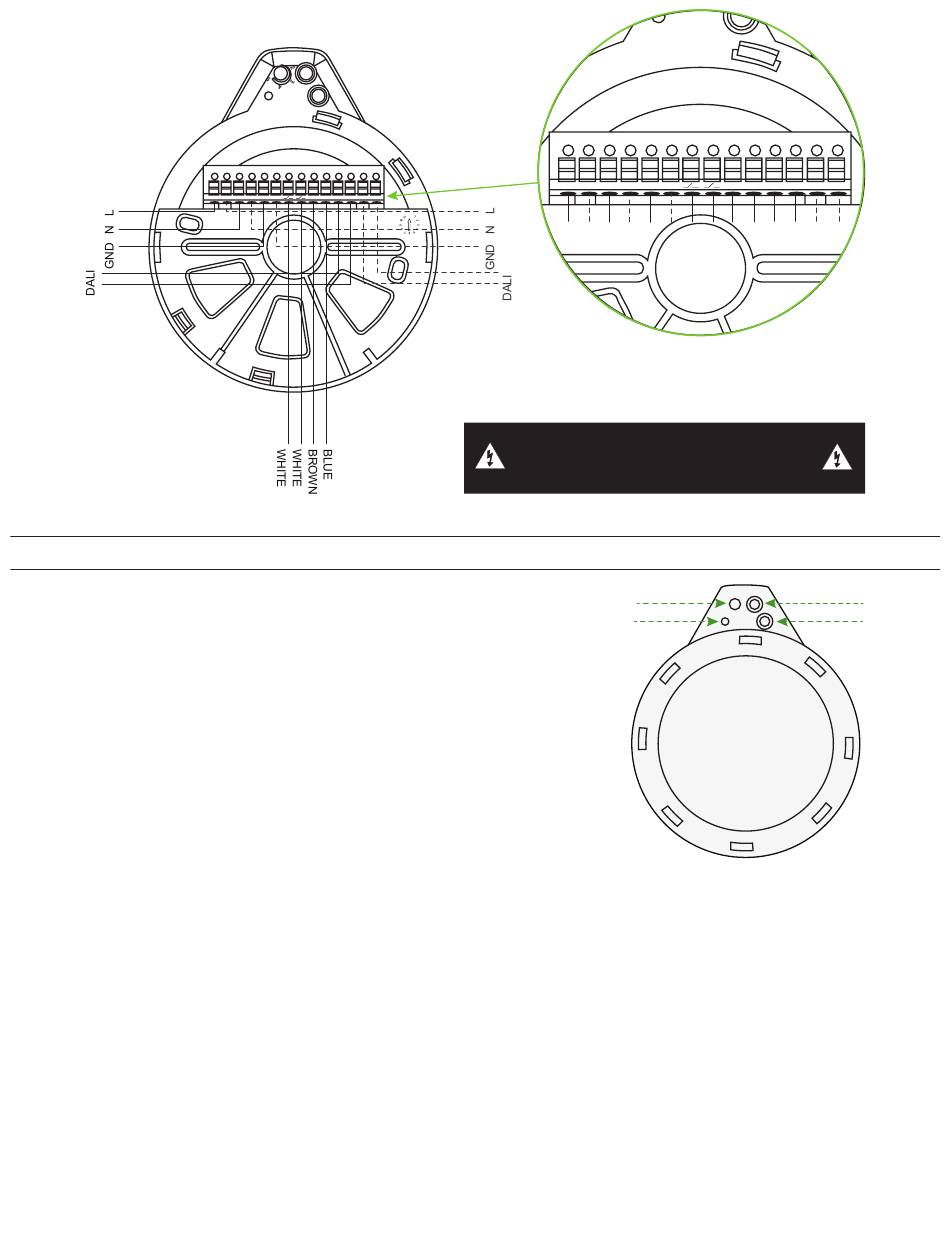

DALI2 COUPLER FOR VISION SENSOR FEATURES
L
12
1 2
WARNING: TURN THE POWER OFF AT
THE CIRCUIT BREAKER BEFORE WIRING.
Sensitivity Adjustment
SELECT Button
3
L N N GND GND LS NS DA- DA+ DA- DA+
Light Sensor
LED Indicator
