Mounting And Wiring - Legrand Plus Installationsanleitung

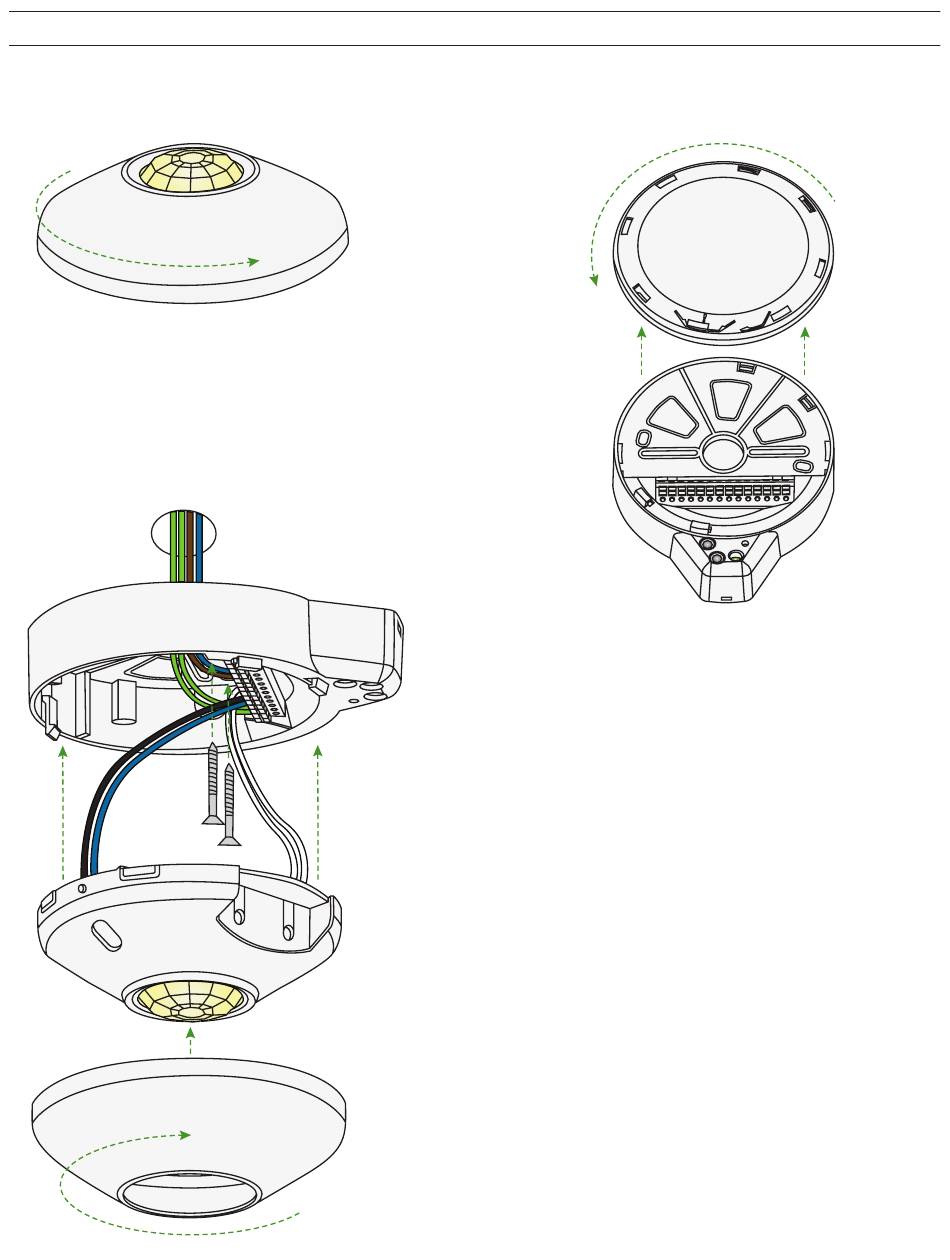

Remove the VISION Sensor cover by turning it
counterclockwise. Place cover aside.
Cut a Ø 22 mm (0.87 inch) hole in the ceiling. Line up
the Coupler holes to the ceiling hole and screw into
the ceiling. Connect the Mains and DALI wires into the
DALI Coupler connector block as shown on the following
page. Connect the VISION Sensor wires into the Coupler
connector block. Place the VISION Sensor into the
Coupler and push until it clicks into place. Then install
the VISION Sensor Cover by turning clockwise until it is
secure.
Ceiling Opening
Ø 22 mm (0.87 inch)

MOUNTING AND WIRING

Remove the Coupler cover plate by turning counterclockwise
and lifting up. The included cover plate is not needed and can be
discarded.
