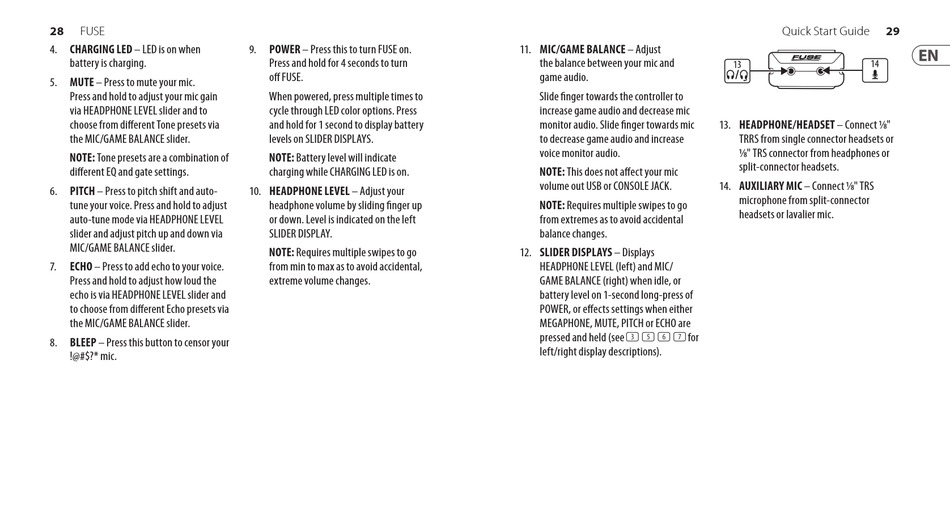

28
FUSE
4. CHARGING LED – LED is on when
battery is charging.
5. MUTE – Press to mute your mic.
Press and hold to adjust your mic gain
via HEADPHONE LEVEL slider and to
choose from different Tone presets via
the MIC/GAME BALANCE slider.
NOTE: Tone presets are a combination of
different EQ and gate settings.
6. PITCH – Press to pitch shift and auto-
tune your voice. Press and hold to adjust
auto-tune mode via HEADPHONE LEVEL
slider and adjust pitch up and down via
MIC/GAME BALANCE slider.
7.
ECHO – Press to add echo to your voice.
Press and hold to adjust how loud the
echo is via HEADPHONE LEVEL slider and
to choose from different Echo presets via
the MIC/GAME BALANCE slider.
8. BLEEP – Press this button to censor your
!@#$?* mic.
9.
POWER – Press this to turn FUSE on.
Press and hold for 4 seconds to turn
off FUSE.
When powered, press multiple times to
cycle through LED color options. Press
and hold for 1 second to display battery
levels on SLIDER DISPLAYS.
NOTE: Battery level will indicate
charging while CHARGING LED is on.
10. HEADPHONE LEVEL – Adjust your
headphone volume by sliding finger up
or down. Level is indicated on the left
SLIDER DISPLAY.
NOTE: Requires multiple swipes to go
from min to max as to avoid accidental,
extreme volume changes.
11. MIC/GAME BALANCE – Adjust
the balance between your mic and
game audio.
Slide finger towards the controller to
increase game audio and decrease mic
monitor audio. Slide finger towards mic
to decrease game audio and increase
voice monitor audio.
NOTE: This does not affect your mic
volume out USB or CONSOLE JACK.
NOTE: Requires multiple swipes to go
from extremes as to avoid accidental
balance changes.
12. SLIDER DISPLAYS – Displays
HEADPHONE LEVEL (left) and MIC/
GAME BALANCE (right) when idle, or
battery level on 1-second long-press of
POWER, or effects settings when either
MEGAPHONE, MUTE, PITCH or ECHO are
pressed and held (see (3) (5) (6) (7) for
left/right display descriptions).
(12)
29
Quick Start Guide
13. HEADPHONE/HEADSET – Connect 1/8"
TRRS from single connector headsets or
1/8" TRS connector from headphones or
split-connector headsets.
14. AUXILIARY MIC – Connect 1/8" TRS
microphone from split-connector
headsets or lavalier mic.
