3. INSTALLATION

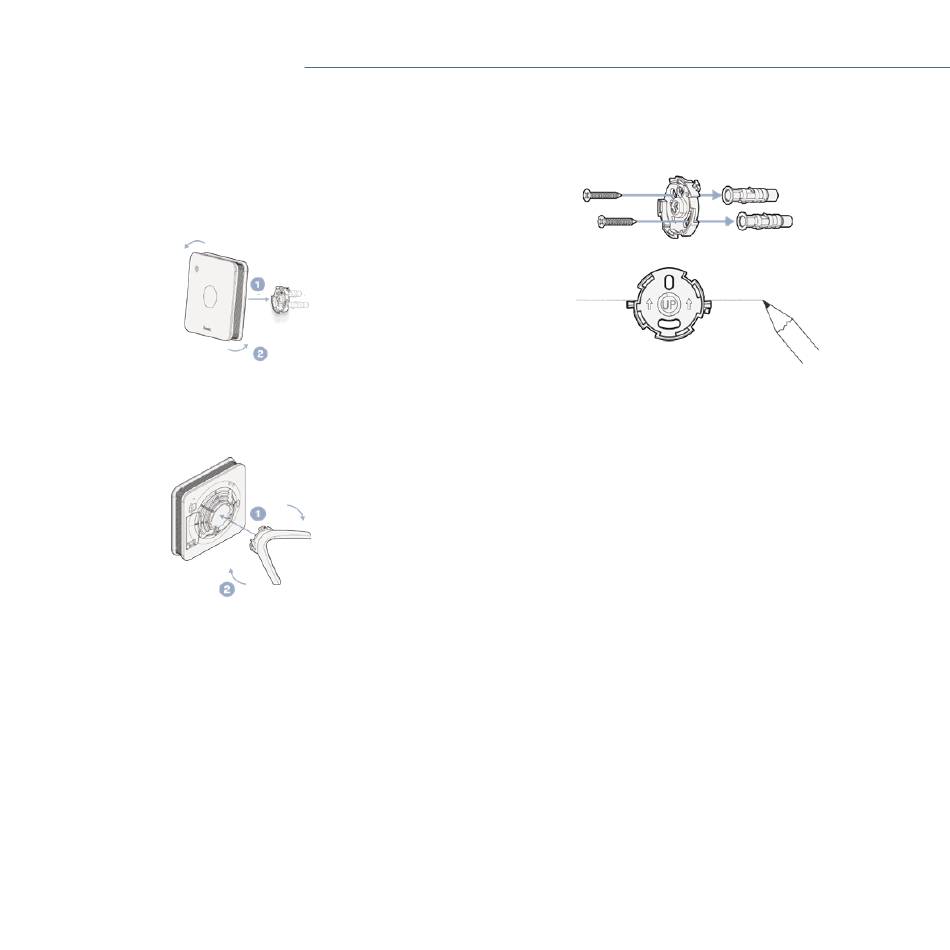

Mounting description
Mounting base for wall mounting
Removable bracket for free standing
Wall mouting
Use the mounting base, the screws
and the plugs supplied with the
sensor. Alternatively, you can mount
the sensor using
adhesive backing.
the included
Installation with screws and dowels
To ensure that the sensor is correctly
mounted (level) on the wall, proceed
as follows:
- Draw a line of about 5 centimetres
on your wall with a level
- Position the mounting base on the
line with the «UP» marking and the
arrows pointing upwards. The small
ears on both sides of the base should
follow the bottom edge of the line
- Mark the screw holes with a pencil,
then drill the holes
- Insert the nylon plugs provided and
screw the base plate in place
