Commissioning
The decoder is designed to control turnout drives
◆
with double coils and has eight outputs with 3
connections each.
The connection cables of a point machine with
◆
double coil drive are connected to the three
connections of an output accordingly.
The middle connection is the supply line
◆
with positive voltage pole.
The outer connections are the return line
◆
with negative voltage pole.

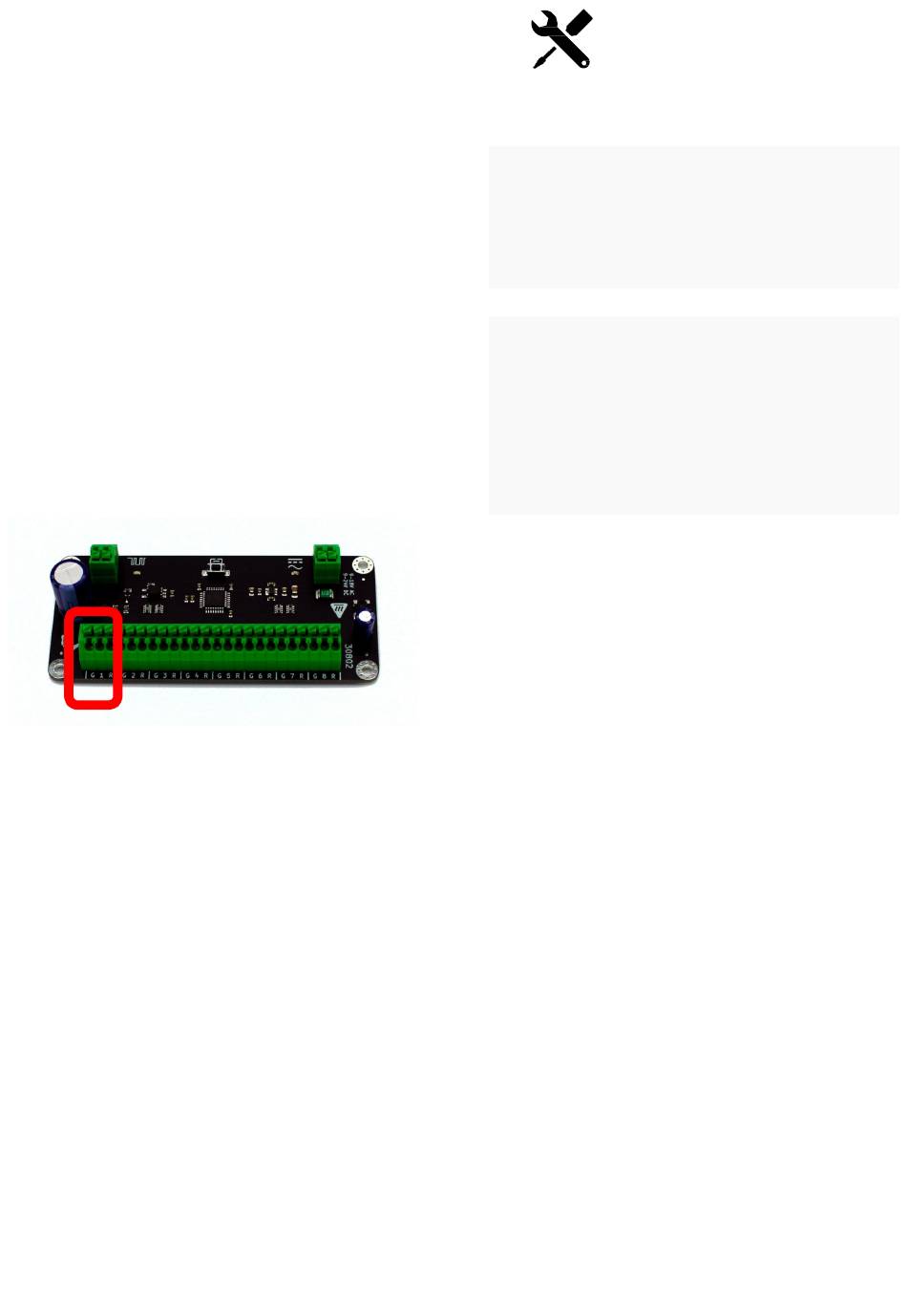

Connect outputs
Performance
9-24V direct voltage
◆
2A current per output
◆
Maximum 2A Total
◆
Switching time
The preset switching time is 400ms.
◆
If the output is switched via a command from
◆
the control panel, either connection G or R is
switched through and the switch is thus
activated.
set to straight ahead or turn-off.
