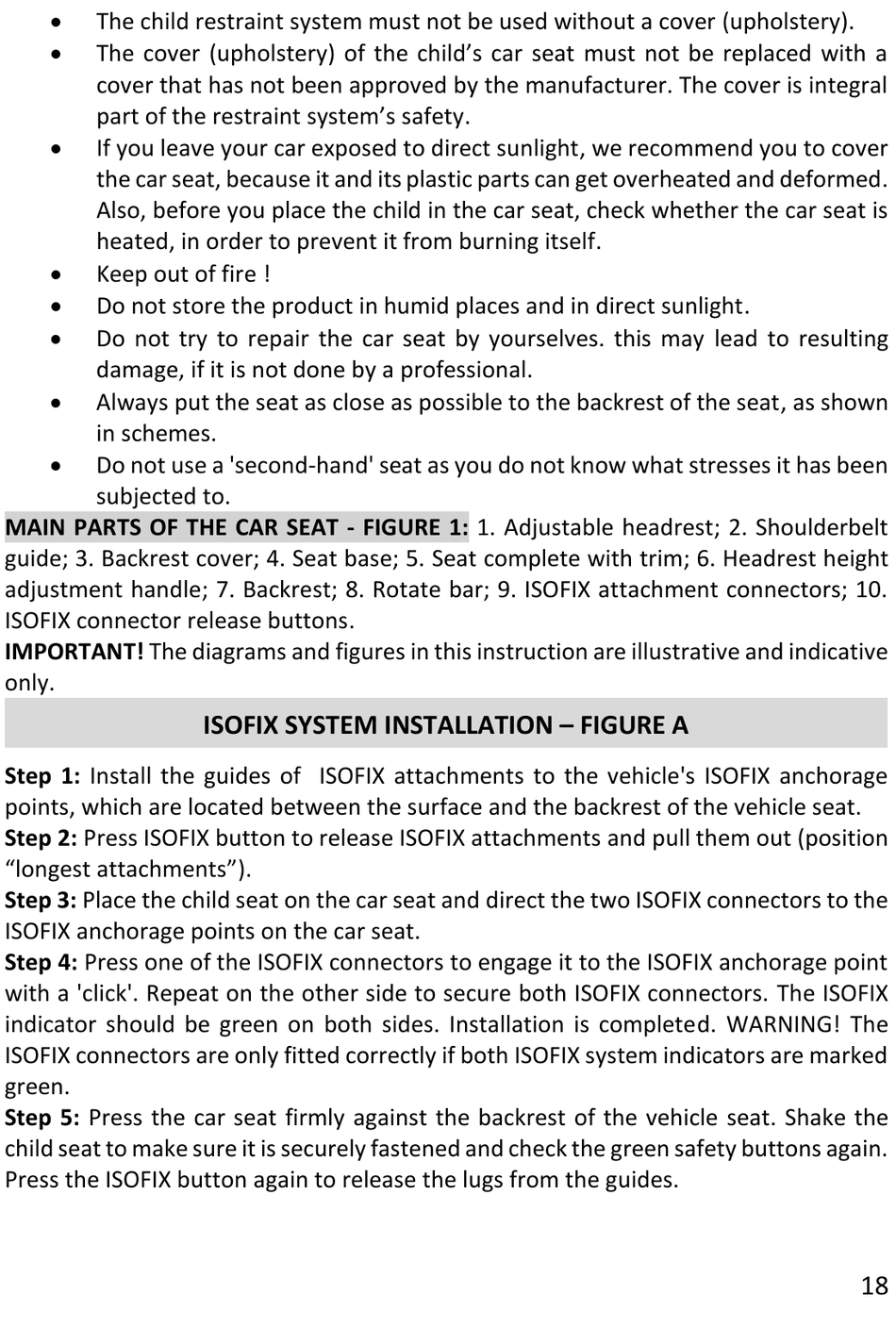

CANGAROO PERFORMANCE Bedienungsanleitung Seite 18

The child restraint system must not be used without a cover (upholstery).

 The cover (upholstery) of the child's car seat must not be replaced with a
cover that has not been approved by the manufacturer. The cover is integral
part of the restraint system's safety.
 If you leave your car exposed to direct sunlight, we recommend you to cover
the car seat, because it and its plastic parts can get overheated and deformed.
Also, before you place the child in the car seat, check whether the car seat is
heated, in order to prevent it from burning itself.
 Keep out of fire !
Dо not store the product in humid places and in direct sunlight.

Do not try to repair the car seat by yourselves. this may lead to resulting

damage, if it is not done by a professional.
 Always put the seat as close as possible to the backrest of the seat, as shown
in schemes.
Do not use a 'second-hand' seat as you do not know what stresses it has been

subjected to.
MAIN PARTS OF THE CAR SEAT - FIGURE 1: 1. Adjustable headrest; 2. Shoulderbelt
guide; 3. Backrest cover; 4. Seat base; 5. Seat complete with trim; 6. Headrest height
adjustment handle; 7. Backrest; 8. Rotate bar; 9. ISOFIX attachment connectors; 10.
ISOFIX connector release buttons.
IMPORTANT! The diagrams and figures in this instruction are illustrative and indicative
only.
Step 1: Install the guides of ISOFIX attachments to the vehicle's ISOFIX anchorage
points, which are located between the surface and the backrest of the vehicle seat.
Step 2: Press ISOFIX button to release ISOFIX attachments and pull them out (position
"longest attachments").
Step 3: Place the child seat on the car seat and direct the two ISOFIX connectors to the
ISOFIX anchorage points on the car seat.
Step 4: Press one of the ISOFIX connectors to engage it to the ISOFIX anchorage point
with a 'click'. Repeat on the other side to secure both ISOFIX connectors. The ISOFIX
indicator should be green on both sides. Installation is completed. WARNING! The
ISOFIX connectors are only fitted correctly if both ISOFIX system indicators are marked
green.
Step 5: Press the car seat firmly against the backrest of the vehicle seat. Shake the
child seat to make sure it is securely fastened and check the green safety buttons again.
Press the ISOFIX button again to release the lugs from the guides.
ISOFIX SYSTEM INSTALLATION – FIGURE A
18
