ProKart – Air Operating Portable Foamer

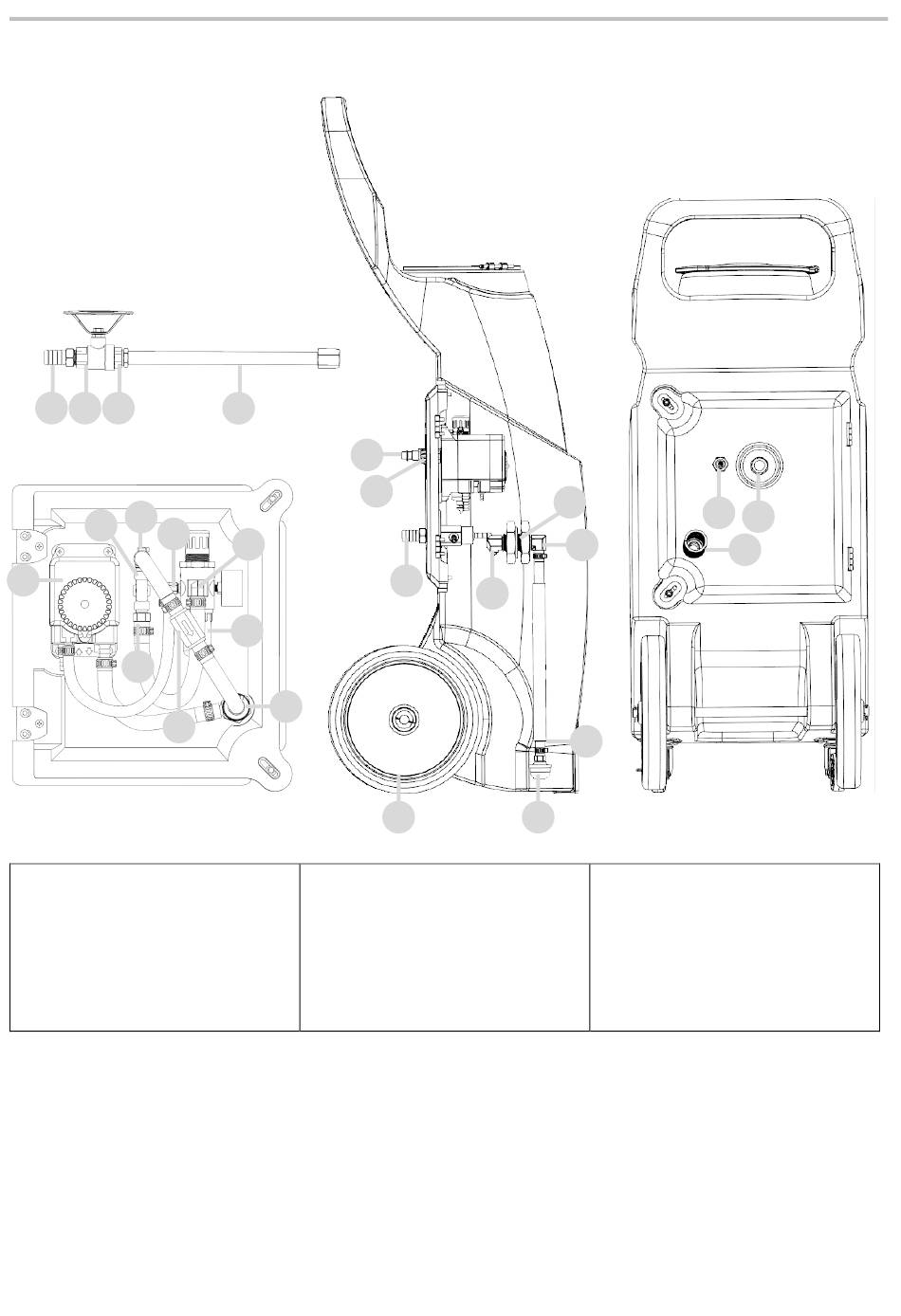

PARTS LIST
1 2 3
11
5
12
6
10
9
1. Straight connection 1/2" x 3/4"
2. Ball Valve
3. Reducing Bushing
4. Foam Lance
5. Air Needle Valve
6. Diaphragm Pump
7. Air Filter and Regulator
ProKart
4
13
14
11
15
7
8
19
8. Connection T - Mixer
9. Check Valve
10. Straight connection - 1/4 "x 3/8"
11. Elbow - 1/4 "x 3/8"
12. Elbow - 1/8 "x 1/4"
13. Air intake - Male quick
connector SWE/1
0000139039 rev. 1.0
17
16
16
10
18
14. Needle Valve Knob
15. Extended Straight Connection -
1/2 "x 3/4"
16. Elbow - 1/2 "x 3/8"
17. Union
18. Suction Filter
19. Wheel
