1. Introduction
Precise alignment of belt driven machinery is essential to increase belt and
pulley life, reduce vibration, and reduce energy costs.
The SKF TKBA 40 Belt Alignment Tool offers an easy and accurate method to
adjust the machinery so that the grooves of the V-belt pulleys are accurately
aligned.
1.1 Principle of operation
The TKBA 40 consists of two units that attach magnetically to the grooves
of each pulley. One unit, the laser unit, emits a laser line that is projected
onto the receiver unit. The receiver unit has three target areas with three
reference lines, the top reference line and the two bottom reference lines.
Depending on the laser pattern projected on the target area, it is possible to
determine the type of misalignment and how to correct it. Belt alignment is
easily performed by adjusting the moveable machine(s) until the laser line
coincides with the three reference lines on the receiver unit.

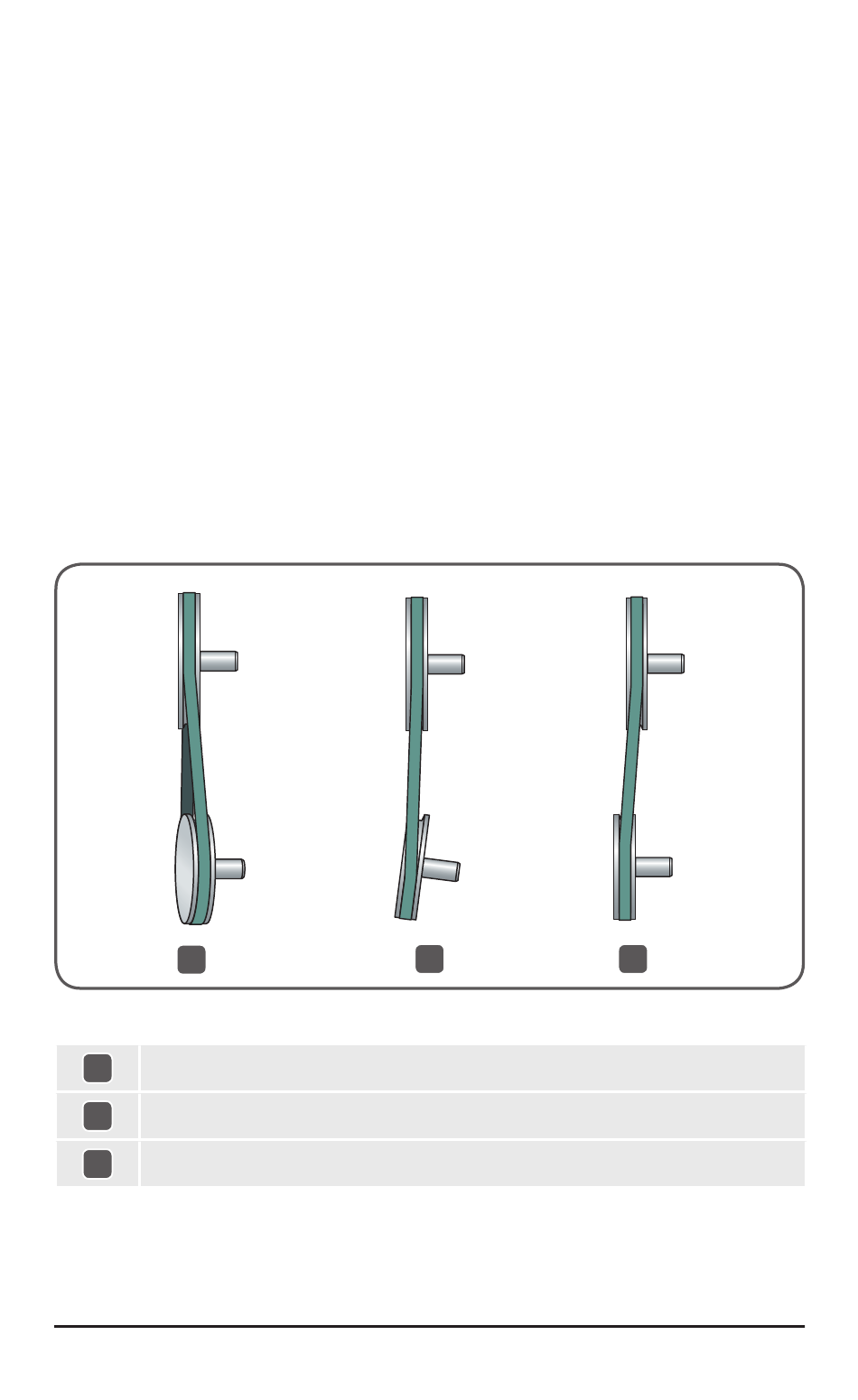

Fig 1 Different types of pulley misalignment
A
Vertical angle misalignment
B
Horizontal angle misalignment
C
Parallel misalignment
