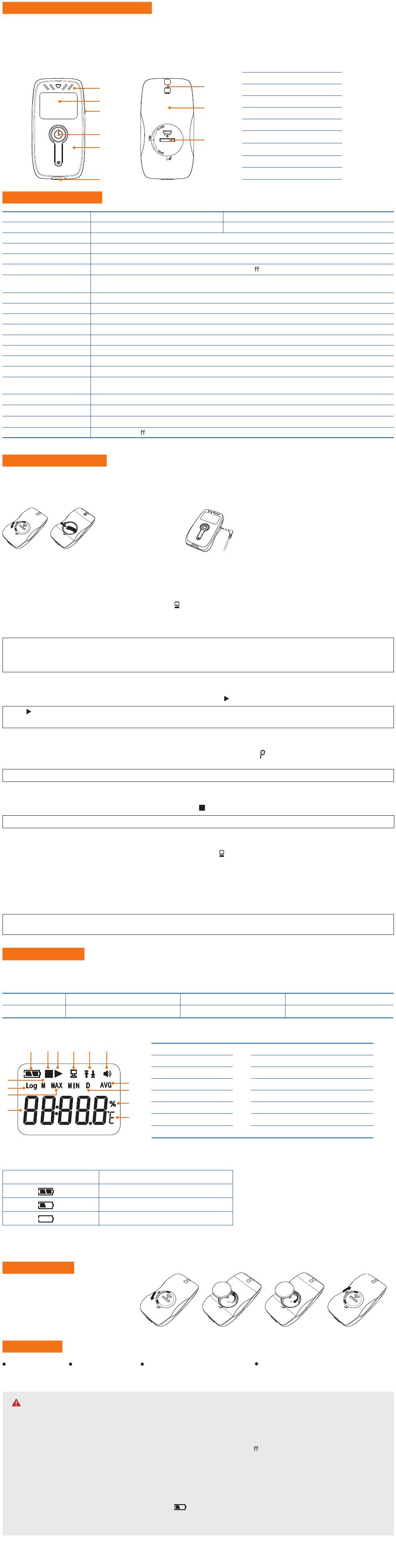

Product Overview and Appearance
RC-4 Pro is a recorder used for recording temperature and humidity data during transportation of food, drugs, chemicals, and other products. It
is widely used in various transportation links such as warehousing and logistics, such as containers, refrigerated trucks, refrigerated containers,
cold storage, and so on. By using a single button to start/stop recording, you can flip through pages to view various interfaces. Powered by a
single CR2450 battery for easy replacement; Transfer data to the "Jingchuang Data Center" management software through the TypeC interface,
and the software can export files in formats such as PDF, EXCEL, TXT, etc.
Technical parameters
Model
Probe type
Temperature measuring range
Measuring precision
Resolution
Screen
Key function
Record Interval
Record capacity
Data interface
Start mode
Stop mode
Pause record
Shadow data
Data export
Power supply
shelf-life
Alarm Mode
Dimension
Total weight
Operating instructions
1、Activate the recorder
Remove the insulation sheet and power on the recorder
3、Install the software
Please download and install the Jingchuang Data Center software through www.elitechlog.com.
4、Configure parameters
Connect the recorder to the computer via a USB cable and wait
Software configuration: If you do not need to modify the default parameters, please click on the Summary menu>Quick Reset button. Can
synchronize local time;
if there is a need to modify parameters, please click on the Configure Device menu, change parameters, and click Save
Parameters to complete the configuration.
Note! To avoid time/time zone errors, please be sure to click on the quick reset or save parameters before first use or after replacing the
battery to ensure that the local time is configured in the recorder.Exceeding the limit and shortening the recording interval parameter:
default to be prohibited; If changed to allow, the recording interval will be automatically shortened to once every 1 minute after the humidity
exceeds the limit.
5、Start the recording
Press and hold the button for 5 seconds to activate the recording, and the symbol
Note!
The continuous flashing of the symbol indicates that the recorder is set with a startup delay. It will start recording after the end
of the delayed startup.
6、Pause the recording
Click the button, and when the Log interface appears, double-click the button. When a symbol
recording.
Note! The pause function can only be used after being configured through the data center software.
7、Stop the recording
Stop recording: Press and hold the button for 5 seconds, and the symbol
Note! The stopping method can be configured through data center software.
8、Download the data
Connect the recorder to the computer via a USB cable and wait until the symbol
Data center: The data will be automatically uploaded. Click the export button to select the file format to export the report; If it is not
automatically uploaded, please manually click the download button and repeat the operation.
USB drive: directly export the corresponding report file;
9、Reuse
Stop connecting the recorder to the computer, save or export data/reports, and repeat steps 4. Configure parameters and 5. Start the recording.
Note! After saving the parameters, the recorded historical data will be cleared; If you forget to save/export data, you can view and manage
the device through the historical data menu of the data center software.
Status indication
1、Functions of the keypad
Operation
Function
2、Main screen
➀
➁ ➂
➃
➇
➆
➈
⑬
3、Battery level
Recorder battery display
Note: When the battery level is less than 10%, please replace the battery as soon as possible.
Battery change
1. Open the battery cover.
2. Remove the old battery
3. Install a new CR2450 battery and place it in
the battery compartment
4. Close the battery cover.
Product list
Recorder×1
Precautions
1. Please store the recorder in a room temperature environment;
2. When using the recorder for the first time, please make sure to use the Jingchuang Data Center software for parameter
configuration to synchronize system time;
3. Please do not remove the battery during the recording process of the recorder;
4. If there is no button operation for 15 seconds, the recorder will automatically turn o the screen. Click the button to reset the
battery screen;
5. After each parameter reconfiguration of the recorder, the previously recorded data will be cleared. Please export the data before
saving the parameters;
6. To ensure humidity accuracy, please avoid contact with unstable chemical solvents or other chemical substances, especially
avoid long-term presence or exposure to high concentrations of ketones, acetone, ethanol, isopropanol, toluene, and other
environments;
7 The battery symbol on the screen is below one square (
8. Propylene glycol liquid is used inside the probe of gel bottle to simulate the temperature change inside the vaccine, which is
more suitable for medical use scenarios.
①
②
③
④
⑤
⑥
RC-4 Pro
Internal temperature+ external temperature
Internal：-30~70℃、0～100%
-20 ~ 40℃，±0.5℃；others ±1℃；±5%RH
0.1℃；0.1%RH
LCD Segment code screen（ Default 15 seconds screen o ）
Single button design; Short press to switch screen display, long press to start/stop recording,
double-click to pause (Log interface)
10 seconds to 24 hours can be set (default 5 minutes)
64000
Type-C
Button, timer, delay
Button, full, software, loop (default full)
Support pause recording function (under the Log interface, the screen displays pause status)
Support front and rear shadow data function
Export report from data center software+automatic generation of PDF/CSV
CR 2450， Ex-Factory with insulation sheet; Supports Typec port power supply (non rechargeable)
Continuous recording for no less than 180 days (at room temperature, 5-minute recording interval)
12 months
buzzer+ screen
91.5*48*20（mm）
62g（ Due to di erences in configuration, there may be variations in weight ）
Keep holding for 5 seconds
Start/Stop the records
➄
➅
⑫
⑪
➉
⑭
⑮
Capacity
25%～100%
10～25%
<10%
USB data line ×1
External temperature probe×1
⑦
⑧
⑨
RC-4H Pro
Internal temperature and humidity+external temperature
External：-40~85℃
2、Install sensors (according to actual needs)
Install sensors according to the requirements, and configure them through
the Jingchuang Data Center before enabling the external probe function
until the symbol appears on the screen;
appearing on the screen indicates successful activation.
appearing on the screen indicates a successful stop;
ppears on the screen.
Single click
View/Switch Display Interface
1、 Battery level
2、 Stopped
3、 Recording
4、 USB connected
5、 Upper and lower limit
6、 Buzzer switch
7、 Recording groups
8、 Month
), please do not use it for long-distance transportation
➀ Air vent
➁ LCD screen
➂ External probe
➃ keypad
➄ Buzzer
➅ TypeC interface
➆ Hanging rope hole
➇ Equipment nameplate
➈ Battery cover
appears on the screen, it represents a pause in
Double click
Pause recording (Log interface)
9、 Max. value
10、 Min. value
11、 Date
12、 Average value
13、 Data area
14、 Percentage
15、 Data unit
3V button battery (CR2450) x 1
