Specification of Modules

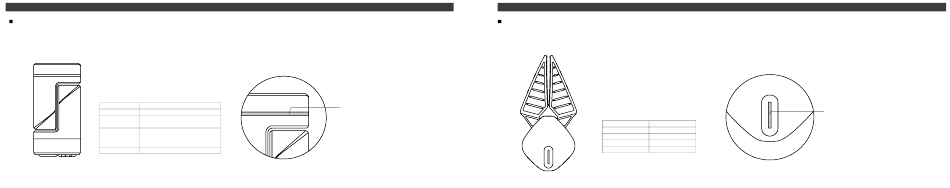

Distance Sensor
The Distance Sensor is a functional sensor module. It uses a high-precision
infrared probe and built-in micro-processor to control and measure the
distance from an obstacle.
Diameter 40*40*82 mm
Net Weight 53 g
Distance Dection 2 - 100 cm
Range
Adjustment of DOF Cardan joint on the bottom: 0° - 180°
Horizontal knob of the main part:
-90° - 90°
Connector Bottom
14
All manuals and user guides at all-guides.com
Distance sensor has a red indicator. After connecting onto the ClicBot,
the luminance of indicator will automatically brighten when the distance
is shortening. The indicator can also indicate the connection status and
update status.
Connection Status
·Light On→Connected correctly
·Light flashing→Waiting for module
connection
·Light flashing quickly→Connection is
wrong
Update Status
·Light On→Successfully updated
·Light flashing→Currently updating
Grasper
The Grasper is a functional actuator module. It is of a flexible bionic design
and is controlled by a built-in micro-processor. It is able to grasp objects of
various shapes and sizes.
Dimension 75*57*165 mm
Net Weight 98 g
Max. Grasping Weight 250 g
Max. Grasping Size 6 cm
Buckle Position Bottom
Specification of Modules
Grasper has a yellow indicator which can also indicate the connection status
and update status.
Connection Status
·Light On→Connected correctly
·Light flashing→Waiting for module
connection
·Light flashing quickly→Connection is
wrong
Update Status
·Light On→Successfully updated
·Light flashing→Currently updating
