Assembly How to connect modules
All manuals and user guides at all-guides.com
Any two modules can be connected parallelly or non-parallelly.

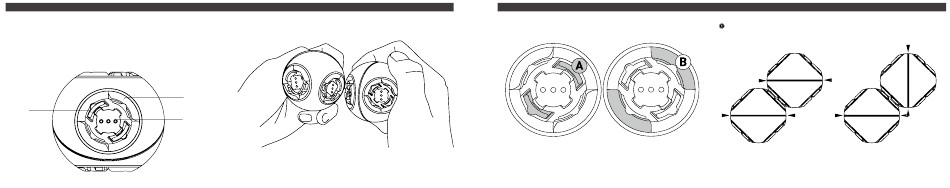

All ClicBot modules can be connected to each other by connectors. A
connector contains an A-conn, a B-conn and golden "po-go" pins. You can
connect two modules by interlacing the A-conn and B-conn, and the golden
"po-go" pins transfer instruction and supply power.
B-conn
A-conn
Golden "po-go" pins
Note:Align the A-conn of one module with the
Parallel Connection Non-Parallel Connection
B-conn of the other to connect two modules
