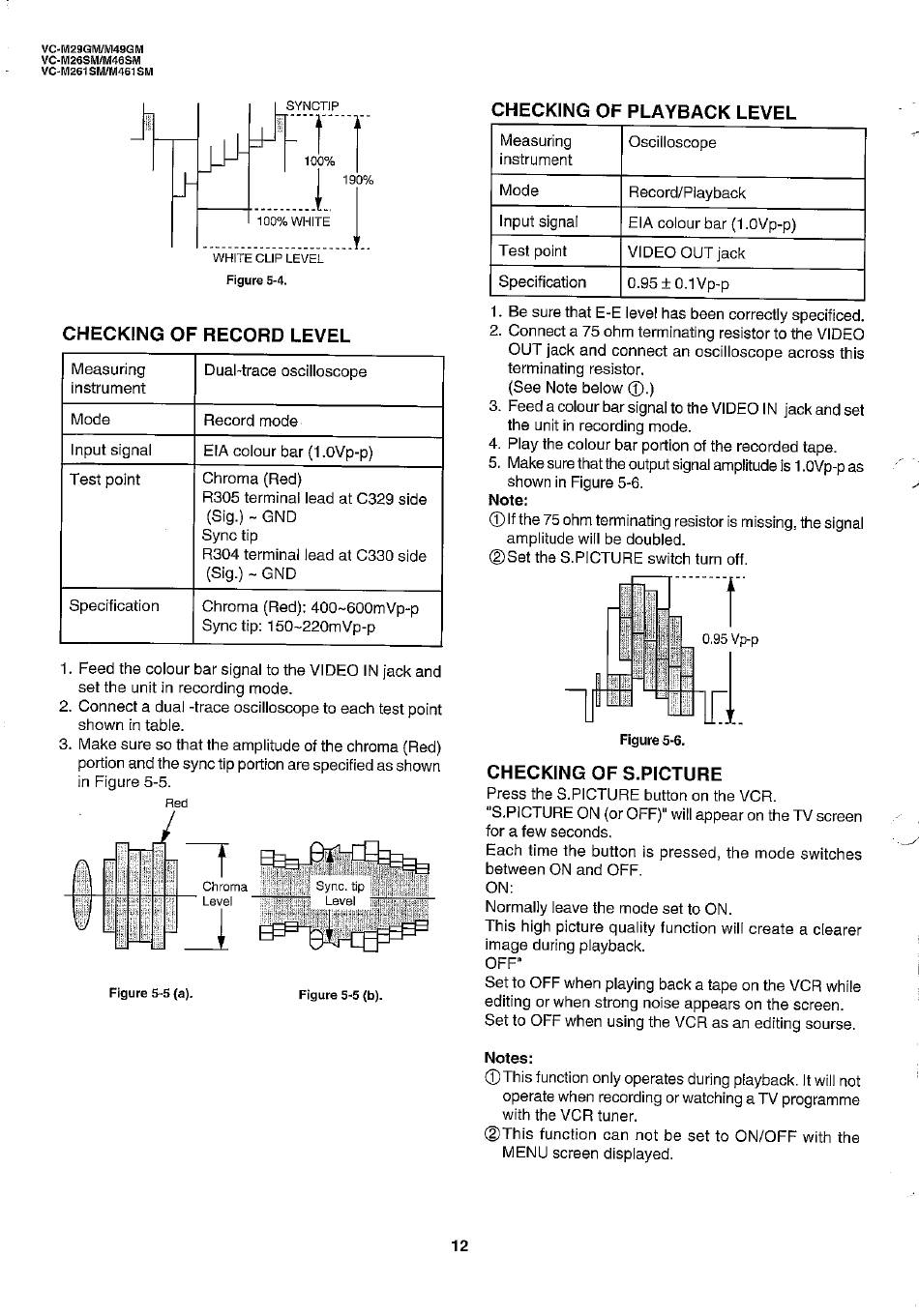

VC-M29GWM49GM
VC-M26SMIM46SM
vc-M261
SM/M461
SM
WHITE
CHECKING
OF RECORD
Measuring
Dual-trace oscilloscope
instrument
Mode
Record
Input signal
ElA colour bar (1.0Vp-p)
Chroma (Red)
Test point
R305 terminal
(Sig.) - GND
Sync tip
R304 terminal
(Sig.)
Specification
Chroma (Red): 400—600mVp-p
Sync tip: 150-220mVp-p
1. Feedthe colour bar signalto the VIDEOIN jack and
set the unit in recording mode.
2. Connecta dual -traceoscilloscope to each test point
shown
in table.
3. Makesureso that the amplitudeof the chroma(Red)
portion and the sync tip portion are specifiedas shown
in Figure 5-5.
Red
Ch roma
Level
Figure 5-5 (a).
SYNCTIP
100%
190%
100% WHITE
CLIP LEVEL
Figure 5-4.
LEVEL
mode
lead at C329 side
lead at C330 side
GND
Level
Figure 5-5 (b).
CHECKING
OF PLAYBACK
Measuring
instrument
Mode
Input signal
Test point
Specification
1. Besurethat E-E levelhas beencorrectlyspecificed.
2. Connecta 75 ohmterminatingresistorto the VIDEO
OUT jack and connect an oscilloscopeacross this
terminating resistor.
(See Note below O,)
3. Feeda colourbarsignalto theVIDEOIN jackandset
the unit in recording mode.
4. Playthecolour bar portionof the recordedtape.
5. Makesurethattheoutputsignal a mplitude is 1.0Vp-p as
shown in Figure 5-6.
Note:
O Ifthe75ohm terminating resistor ismissing, thesignal
amplitude will be doubled.
@Set the S.PICTURE switch turn off.
Figure 5-6.
CHECKING
OF S.PICTURE
Press the S.PICTURE
"S.PICTUREON (or OFF)" will appear on the TV screen
for a few seconds.
Each time the button is pressed, the mode switches
between
ON and OFF.
ON:
Normally leave the mode set to ON.
This high picture quality function will create a clearer
image during playback.
OFF"
Set to OFF when playing back a tape on the VCR while
editing or when strong noise appears on the screen.
Setto OFFwhen usingthe VCR as an editingsourse.
Notes:
O Thisfunction onlyoperates d uring playback. I twillnot
operatewhen recordingor watchinga TV programme
with
the VCR
tuner.
@This function can not be set to ON/OFF with the
MENU screen displayed.
12
LEVEL
Oscilloscope
Record/Playback
ElA colour bar (1.OVp-p)
VIDEO OUT jack
0.95 ± O.1Vp-p
0.95 vp-p
button on the VCR.
