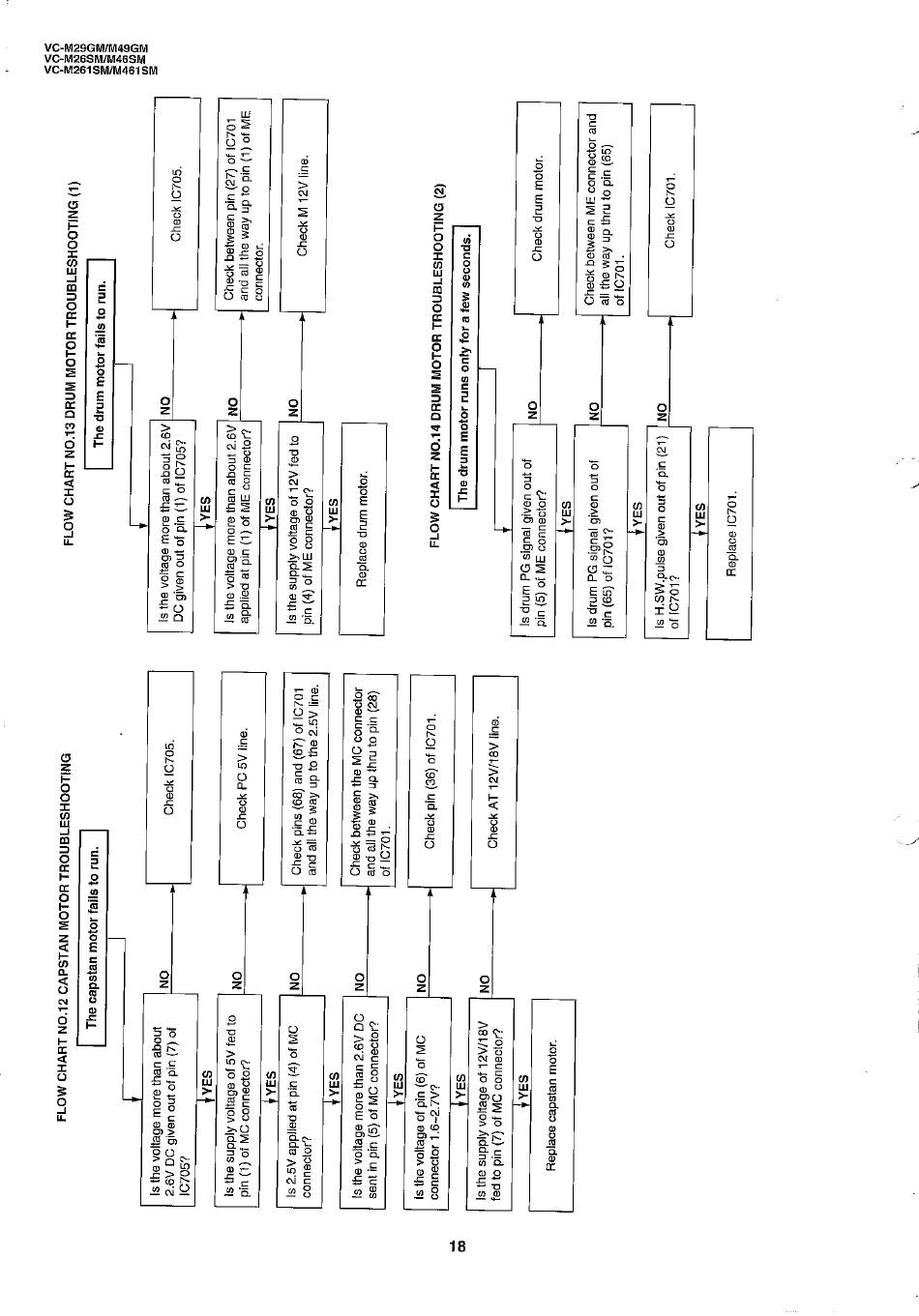

FLOW CHART NO.12 CAPSTAN MOTOR TROUBLESHOOTING
The capstan motor fails to run.
Is the voltage more than about
2.6V DC given out of pin (7) of
IC705?
YES
Is the supply voltage of 5V fed to
pin (1) of MC connector?
YES
Is 2.5V applied at pin (4) of MC
connector?
YES
Is the voltage more than 2.6V DC
sent in pin (5) of MC connector?
YES
Is the voltage of pin (6) of MC
connector I .6—2.7V?
YES
Is the supply voltage of 12V/18V
fed to pin (7) of MC connector?
YES
Replace capstan motor.
NO
NO
Check PC 5V line.
NO
Check pins (68) and (67) of 10701
and all the way up to the 2.5V line.
Check between the MC connector
NO
and all the way up thru to pin (28)
of IC701.
NO
Check pin (36) of JC701.
NO
Check AT 12V/18V
Check IC705.
line.
FLOW CHART NO.13 DR
Is the voltage more than about 2.6V
DC given out of pin (1) of IC705?
YES
Is the voltage more than about 2.6V
applied at pin (1) of ME connector?
YES
Is the supply voltage of 12V fed to
pin (4) of ME connector?
YES
Replace drum motor.
FLOW CHART NO.14 DR
The drum motor ru
Is drum PG signal given out of
pin (5) of ME connector?
YES
Is drum PG signal given out of
pin (65) of 10701?
YES
Is H.SW.pulse given out of pin (21)
of IC701?
YES
Replace IC701.
The drum
NO
NO
NO
NO
NO
NO
