Samsung I100 Bedienungsanleitung Seite 17

Multi function – MP3, PMP, World Tour Guide, Text Viewer, Portable
Memory, Voice Recorder
Interface – Digital output connector: USB 2.0 High Speed
– Audio: Mono
– Video output: NTSC, PAL (user selectable)
– DC Adapter: 4.2V, 20 pin connector
Power Source – Rechargeable battery: SLB-1137D, 3.7V (1100mAh)
– Adaptor: SAC-47(DC 4.2V, 400mA)
Included battery may vary depending on sales region.

Dimensions – 94.5 x 59.6 x 21.3mm (excluding protrusions)
(WxHxD)
Weight – 116g (without batteries and card)
Operating – 0 - 40°C
Temperature
Operating Humidity – 5 - 85%
Software – Application: Samsung Master, Samsung Converter,
Adobe Reader
MP3 Specification

Audio – Frequency: 20Hz - 20KHz
– Earphone Port: 20Pin Port (Stereo Type)
– Output: Maximum Volume Left 40mW + Right 40mW (16Ω)
– Noise Ratio: 88 dB with 20 KHz LPF
File – File Format: MP3 (MPEG-1/2/2.5 Layer 3)
– Bit Rate: 48 - 320kbps (Including VBR)
Sound Effect – SRS, Normal, Classic, Dance, Jazz, Live, Rock
Play Mode – All, Repeat One, Repeat All, Shuffle
– Skipping in Play, Auto Skipping
– Slide Show On/Off (User Selectable)
– MP3&Capturing (Capturing Mode is Auto Default, 3M)
– Auto reload function (Remember both the last played
file and frame)
– Background skin of MP3 playback using user images
PMP Specification

PMP Decoder – Movie: Modified Xvid MPEG4 (Other video files
have to use Samsung Converter S/W)
– Audio: MPEG Layer 2 (Samsung Convert S/W)
Play Mode – Fast Forward/Rewind(Max 32x)
– Seeking in Play, Skipping in Play
(Normal, 30sec, 1min, 3min, 5min, 10min)
– Auto skipping after one file played
– Auto reload function (Remember last played frame)
– Support Full Screen in Converting S/W
Subtitle – Support SMI file (Using Samsung Converter S/W)

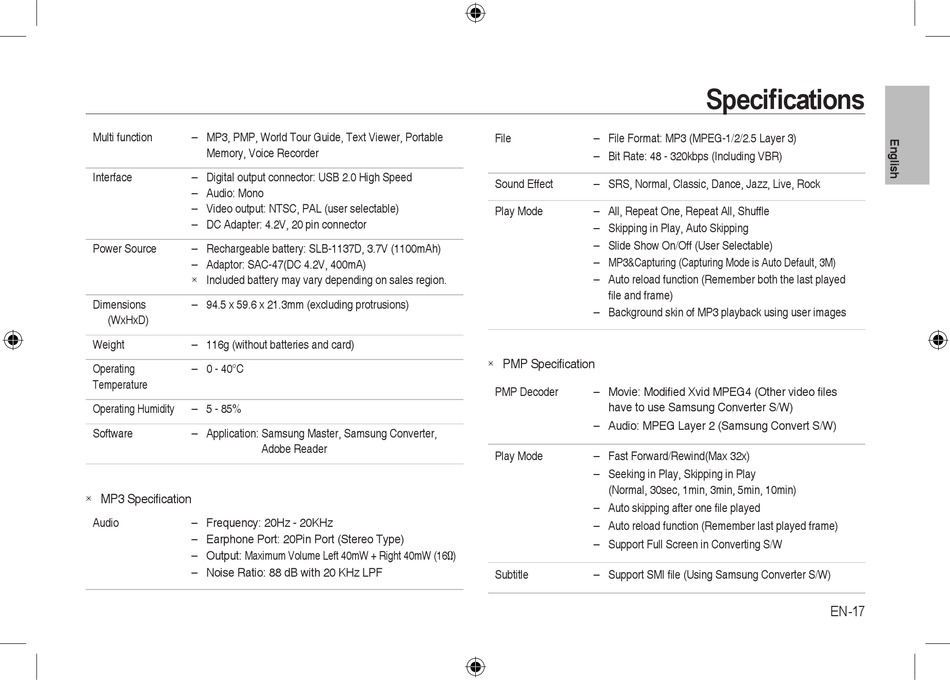

Specifications
EN-17
