Thrown workpieces can lead to injury
Wood chips and sawdust can be
health hazards. Be sure to wear
personal protection gear such as
safety goggles ear- and dust
protection.
Use a suitable dust exhaust system.
The use of incorrect mains supply or
a damaged power cord can lead to
injuries caused by electricity.
Avoid body contact with earthed or
grounded surfaces (e.g. pipes,
radiators, ranges and refrigerators).
There is no substitute for a careful
attentive operator. Conversely
there is no safety device that can
protect a careless operator in all
situations.
4. Machine specifications
4.1 Technical data
Saw blade size 254x 2,8x 30mm
No load speed
Max cutting height 90°/45°
Max. cutting length 90°/45° 305/215mm
Bevel capacity left
Mitre capacity left/right
Dust extraction port d/D
Weight
Mains 1~230V, 50-60Hz
Motor input power
Reference current
Extension cord (H05VV-F)
Installation fuse protection
The machine has double insulation
(protection class II) in accordance
with EN61029. Therefore a ground
wire is not necessary.
Laser class 2 <1mW, 400-700nm
Laser power supply 3V by transformer
4.2 Noise emission
(Inspection tolerance 4 dB)
Acoustic power level
(according to EN ISO 3746):
Idling LwA 101,5 dB(A)
Acoustic pressure level
(according to EN ISO 11202):
Idling LpA 88,7 dB(A)
The specified values are emission
levels and are not necessarily to be
seen as safe operating levels.
This information is intended to allow
the user to make a better estimation
of the hazards and risks involved.
4.3 Content of delivery
1 slide mitre saw
1 dust extraction bag
1 workpiece clamp
2 table extension pieces
1 length gauge
1 spanner 13mm
1 sawblade
Operating manual
Spare parts list

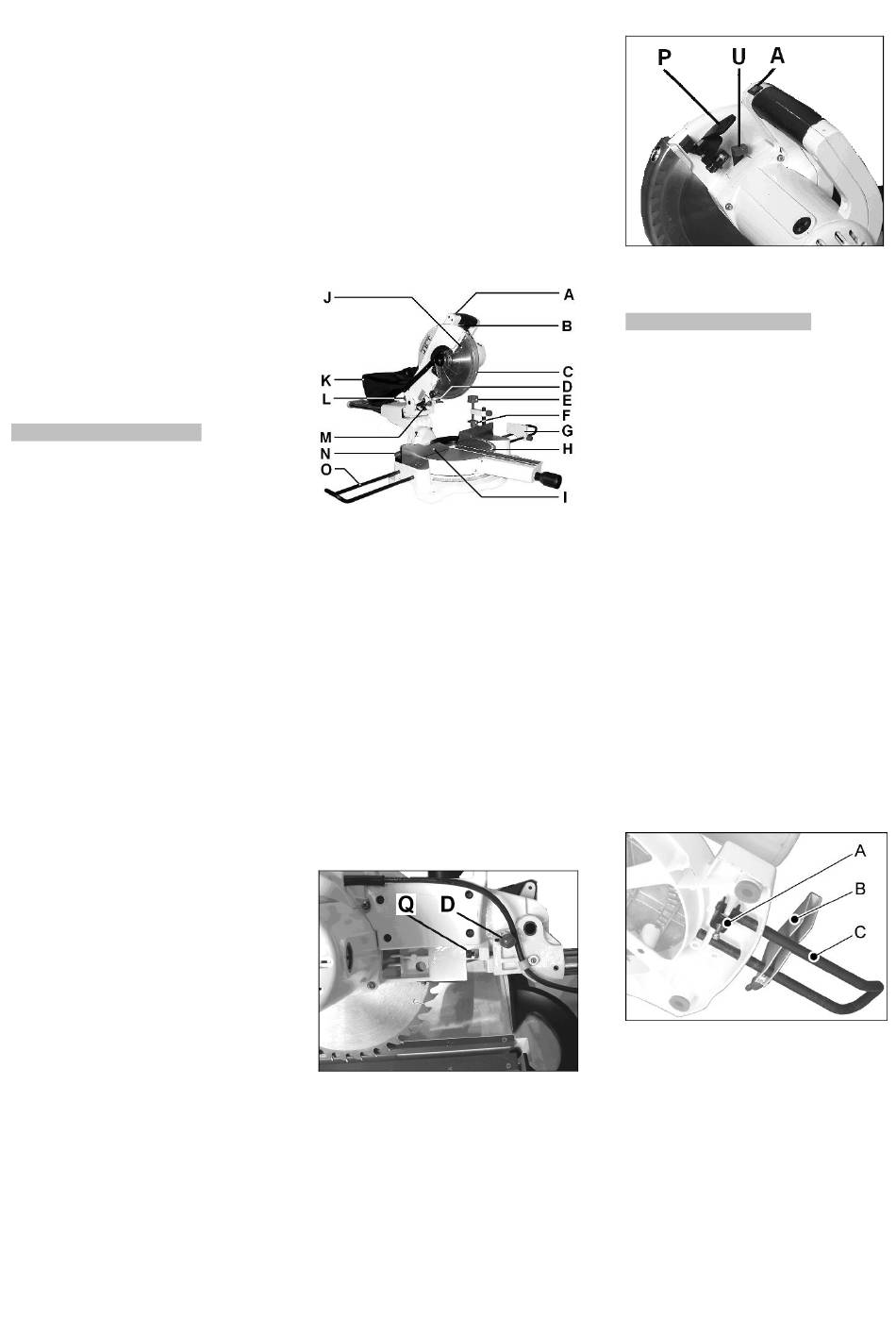

4.4 Mitre saw description
4500 rpm
90/42mm
A....Laser ON/OFF switch
0°-45°
B....Handgrip with switch button
45°/45°
C....Protective cover for blade
30/40mm
D....Cutting head lock button
18 kg
E.....Workpiece clamp
F....Miter lock knob
G....Length gauge
1500W
H....Machine table
6,5 A
I....Workpiece fence
2x1,0mm²
J....Sawblade
10A
K.....Dust bag
L......Slide lock knob
M....Line laser
N....bevel lock knob
O....Table extensions
P.....Unlock botton
Q....Cutting depth adjustment
U....Spindle lock button
Fig 1
Fig 2
Fig 3
5. Transport and start up
5.1 Transport and installation
The machine is designed to operate
in closed rooms and must be placed
stable on firm and levelled surface.
The machine can be bolted down if
required.
For packing reasons the machine is
not completely assembled.
5.2 Assembly
If you notice any transport damage
while unpacking, notify your supplier
immediately. Do not operate the
machine!
Dispose of the packing in an
environmentally friendly manner.
Clean all rust protected surfaces with
a mild solvent.
Mounting the table extensions
Mount the length gauge (B, Fig 4) to
the left or right table extension.
Fig 4
Use the clamping pieces (A) to lock
the table extensions (C) in place.
Mounting the dust bag
Use the dust bag (K, Fig 1) to collect
the dust emissions. You can slide the
dust bag onto the dust port on the
rear of the machine.
The dust port is also suitable for the
connecting to a dust collector.
