ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch
having a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance)
being sure that the connector of the feeding cable is cor-
rectly inserted in the socket placed on the side of the fan.

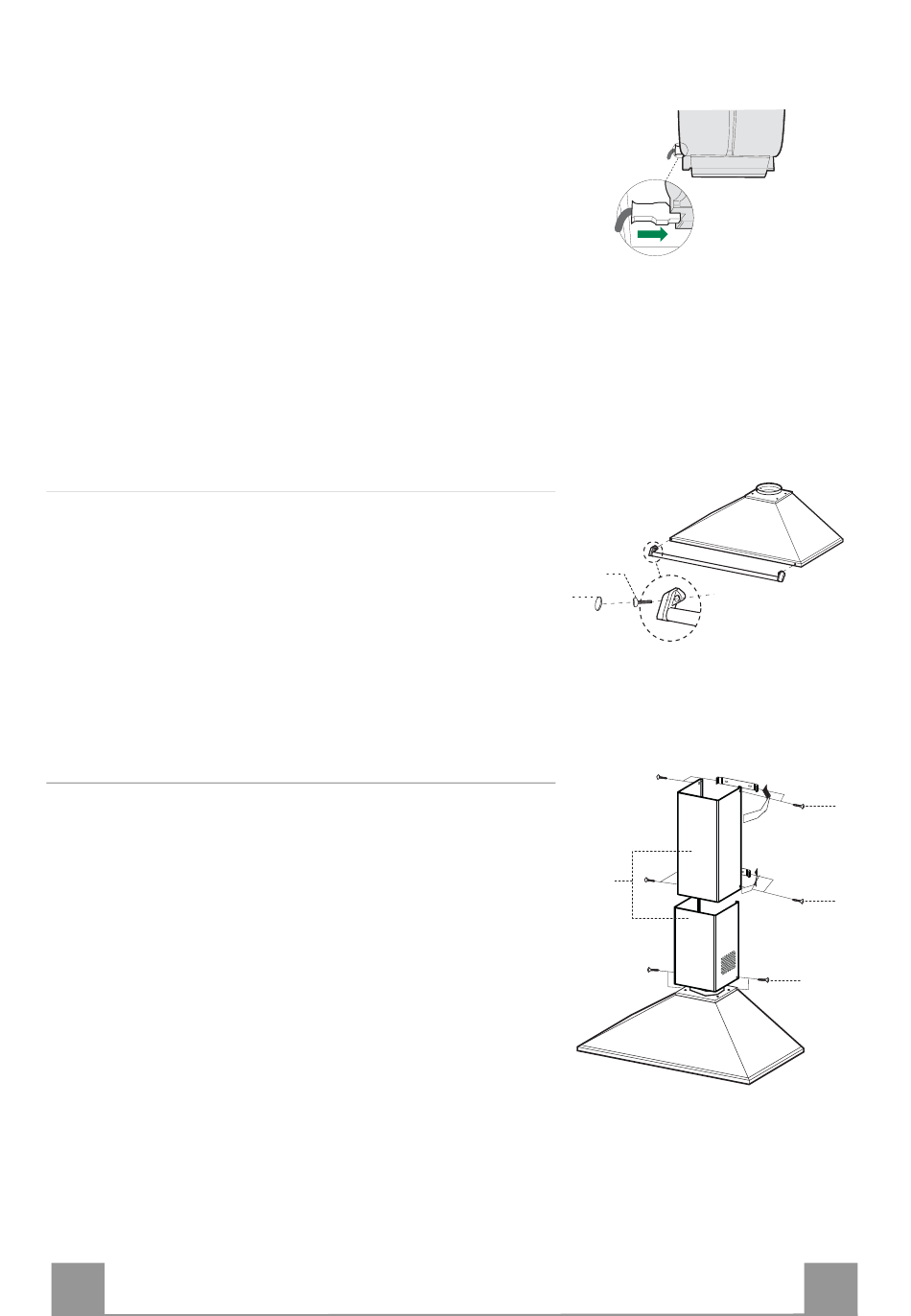

Fix the Utensil Rail
• Position the Utensil rail on the front part of the hood.
• Fix using the Utensil rail to the hood using the Screws 16.
• Insert the plugs 18.
Chimney assembly
Upper exhaust Chimney
• Slightly widen the two sides of the upper chimney and
hook them behind the brackets 7.2.1, making sure that
they are well seated.
• Secure the sides to the brackets using the 4 screws 12c
(2,9 x 9,5) supplied.
Lower exhaust Chimney
• Slightly widen the two sides of the chimney and hook
them between the upper chimney and the wall, making
sure that they are well seated.
• Fix the lower part laterally to the hood body using the 2
screws 12c (2,9 x 9,5) supplied.
