DALI.Professional.Controller-4
Plug & Play mode
Simple.light.controls.with.motion.detection.can.be.set.up.in.the.Plug.&.Play.mode.by.
connecting.DALI.Professional.pushbutton.couplers.and.DALI.Professional.sensors.
The.Plug.&.Play.mode.is.only.available.if.the.control.unit.has.not.yet.been.configured.
by.means.of.PC.and.the."PLUG.&.PLAY".LED.is.lit.up.
Note:
-.. P ushbutton.and.sensor.switching.operations.only.affect.the.DALI.circuit.to.which.
the.respective.pushbutton.coupler.or.sensor.coupler.is.connected.
-.Light.sensors.do.not.have.a.function.
Symbols

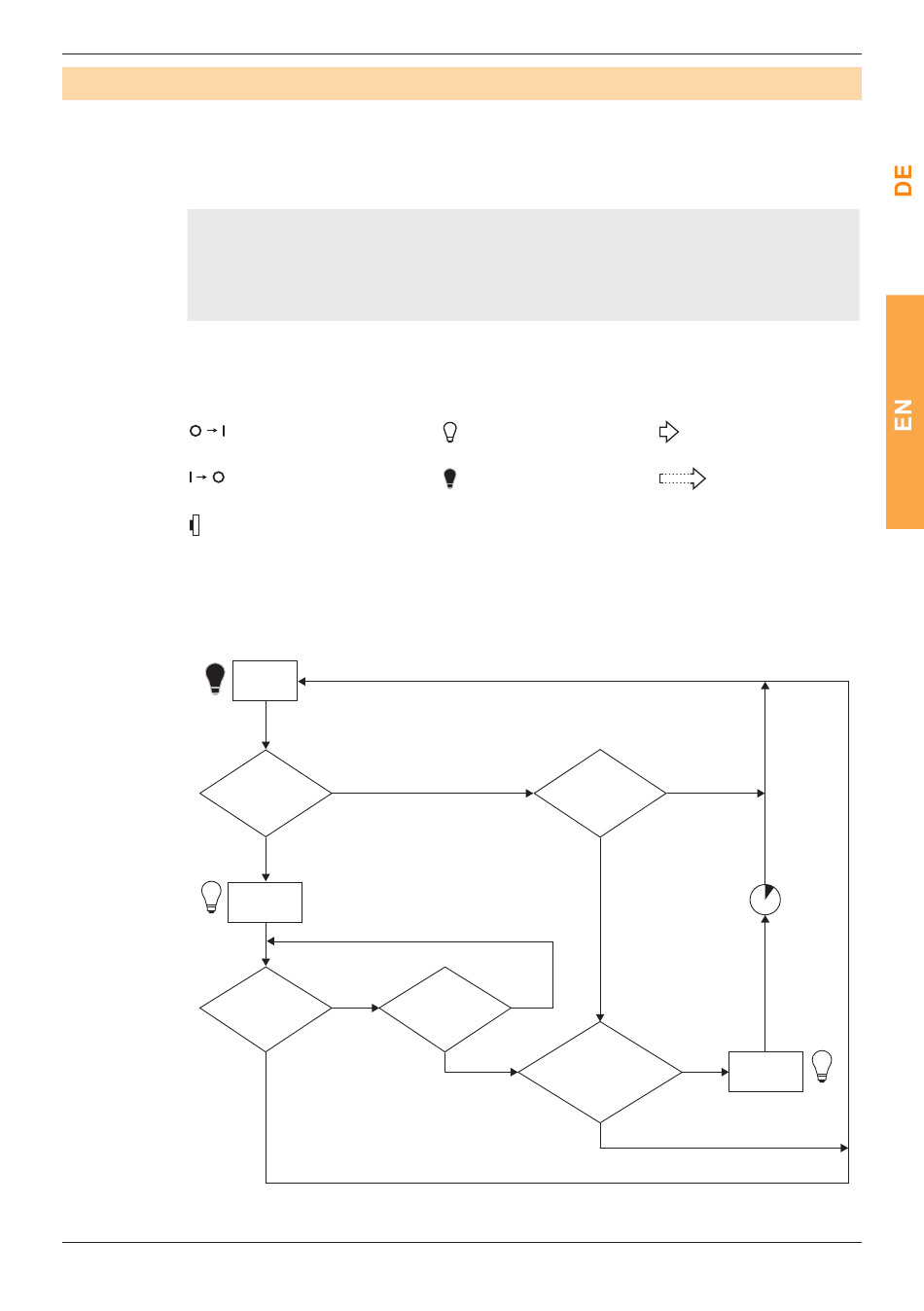

Principle
Pushbutton pressed?
max.
Pushbutton pressed?
VI.2010
Switch.on
Switch.off
Pushbutton.on.
the.luminaire
Luminaire
OFF
no
yes
Luminaire
ON
no
yes
Luminaires.on
Luminaires.off
Motion?
yes
no
Motion?
Luminaires
yes
manually switched off
before max. 30 s?
yes
Operation
Short.press..
(<.0.5.s)
Long.press..
(0.5.–.4.s)
no
5 min
no
Luminaire
ON
max.
