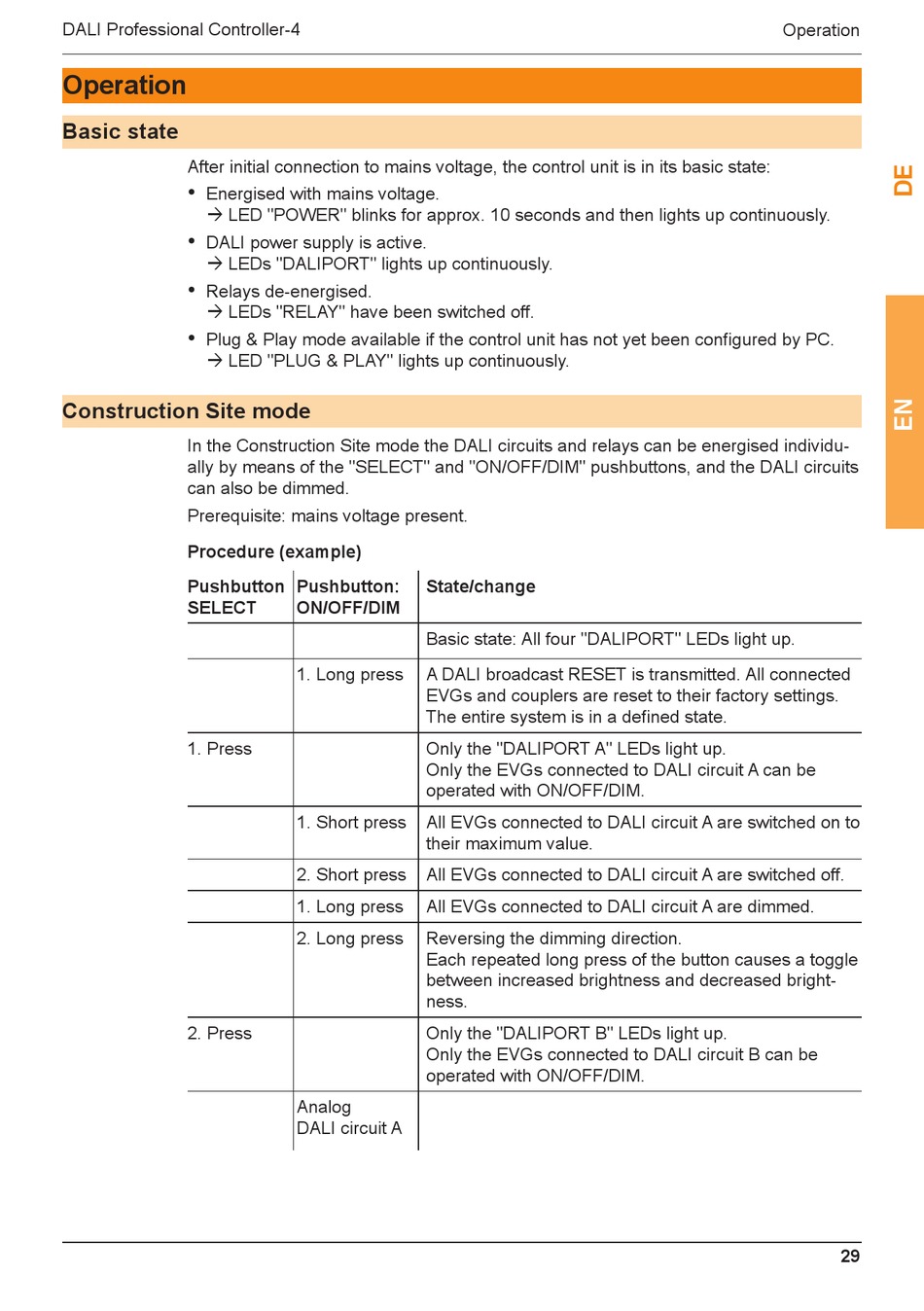

DALI.Professional.Controller-4
Operation
Basic state
After.initial.connection.to.mains.voltage,.the.control.unit.is.in.its.basic.state:
•.
Energised.with.mains.voltage..
à.LED."POWER".blinks.for.approx..10.seconds.and.then.lights.up.continuously..
•.
DALI.power.supply.is.active..
à.LEDs."DALIPORT".lights.up.continuously.
•.
Relays.de-energised..
à.LEDs."RELAY".have.been.switched.off.
•.
Plug.&.Play.mode.available.if.the.control.unit.has.not.yet.been.configured.by.PC..
à.LED."PLUG.&.PLAY".lights.up.continuously.
Construction Site mode
In.the.Construction.Site.mode.the.DALI.circuits.and.relays.can.be.energised.individu-
ally.by.means.of.the."SELECT".and."ON/OFF/DIM".pushbuttons,.and.the.DALI.circuits.
can.also.be.dimmed.
Prerequisite:.mains.voltage.present.
Procedure (example)
Pushbutton
SELECT
.
1..Press
2..Press
VI.2010
Pushbutton:
State/change
ON/OFF/DIM
Basic.state:.All.four."DALIPORT".LEDs.light.up.
1..Long.press
A.DALI.broadcast.RESET.is.transmitted..All.connected.
EVGs.and.couplers.are.reset.to.their.factory.settings..
The.entire.system.is.in.a.defined.state.
Only.the."DALIPORT.A".LEDs.light.up...
Only.the.EVGs.connected.to.DALI.circuit.A.can.be.
operated.with.ON/OFF/DIM.
1..Short.press
All.EVGs.connected.to.DALI.circuit.A.are.switched.on.to.
their.maximum.value.
2..Short.press
All.EVGs.connected.to.DALI.circuit.A.are.switched.off.
1..Long.press
All.EVGs.connected.to.DALI.circuit.A.are.dimmed.
2..Long.press
Reversing.the.dimming.direction...
Each.repeated.long.press.of.the.button.causes.a.toggle.
between.increased.brightness.and.decreased.bright-
ness.
Only.the."DALIPORT.B".LEDs.light.up...
Only.the.EVGs.connected.to.DALI.circuit.B.can.be.
operated.with.ON/OFF/DIM.
Analog..
DALI.circuit.A
Operation
