Operating instruction
Operating steps
1. Fix the fittings according to the cleaning work. If it is a dust vacuuming, the cloth filter should
be fixed; if it is a wet work, the cloth filter should be removed. (Figure 1).
2. Put the machine head on the machine body and make sure the power switch centre in the
machine head is aligned with centre of square connector. Then fasten the two buckles to fix the
machine body. (Figure 2).
3. Put the hose end with the short connector into the square connector and insert the switch of
the square connector into the groove of the short connector. The other end of the hose should be
attached with different fittings according to the cleaning work, such as the dry floor nozzle assembly,
the wet floor nozzle assembly. (Figure 3).
4. After all the fittings needed for the work are fixed, the machine can be operated.
Attention
Ensure that leakage protector is available before use. Check the voltage on the nameplate and make
sure the voltage you are using is suitable for the machine. Check whether the power cable, the plug
and the switch are intact. While the machine is working, the power cable should be put behind the
barrel and the nozzle. (Figure 4).
EN

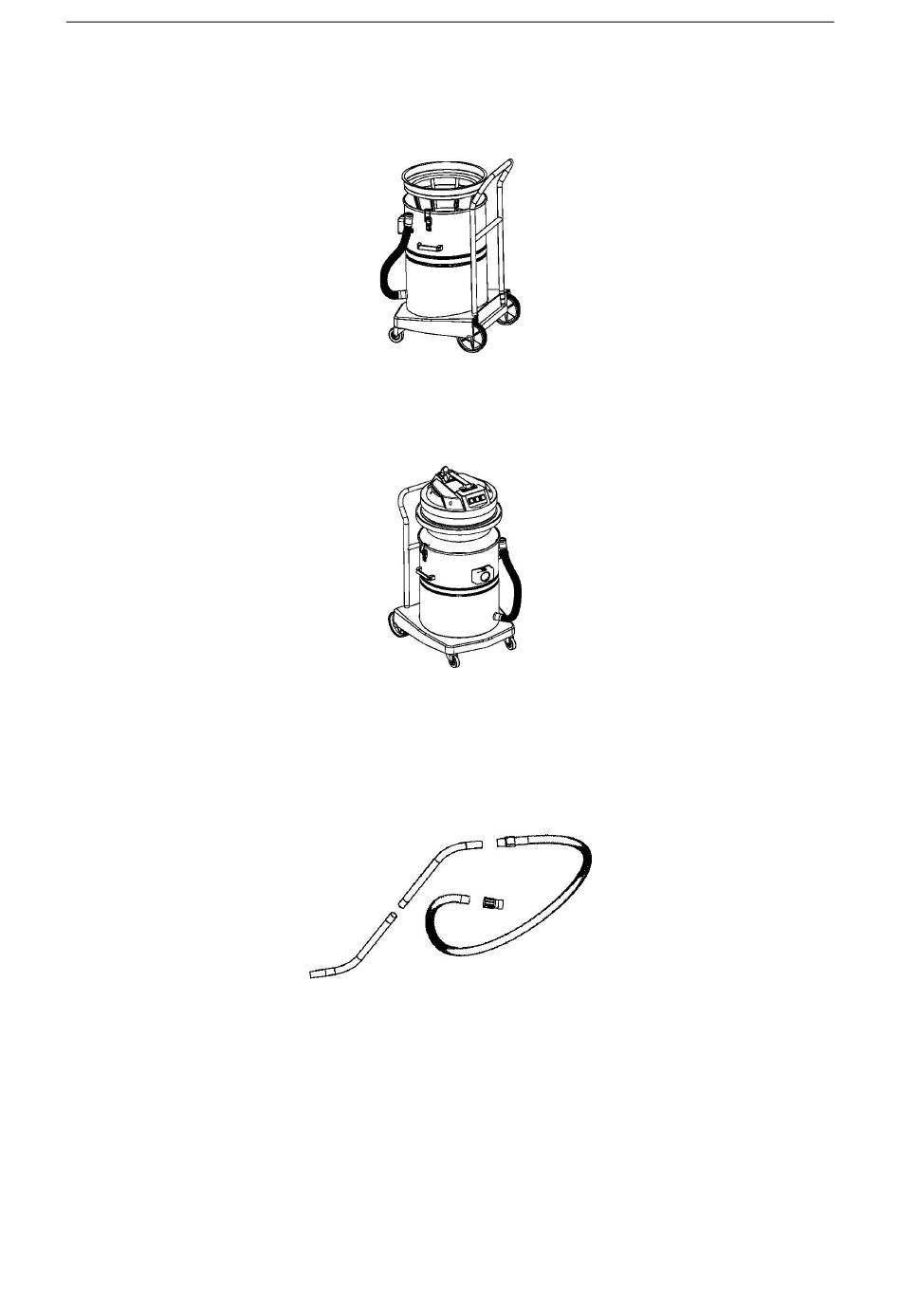

Figure 1
Figure 2
Figure 3
