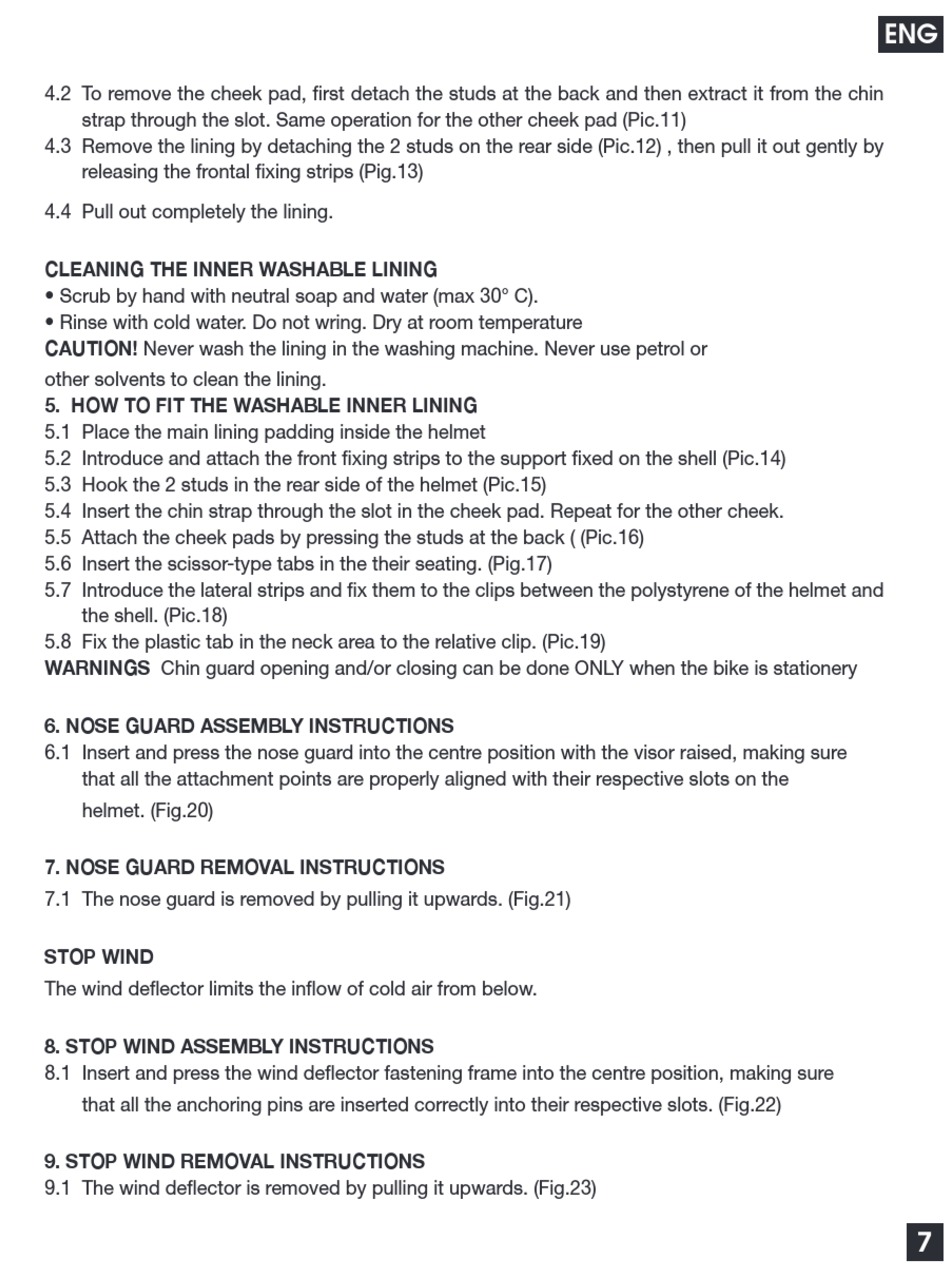

4.2 To remove the cheek pad, rst detach the studs at the back and then extract it from the chin
strap through the slot. Same operation for the other cheek pad (Pic.11)
4.3 Remove the lining by detaching the 2 studs on the rear side (Pic.12) , then pull it out gently by
releasing the frontal xing strips (Pig.13)
4.4 Pull out completely the lining.
CLEANING THE INNER WASHABLE LINING
• Scrub by hand with neutral soap and water (max 30° C).
• Rinse with cold water. Do not wring. Dry at room temperature
CAUTION! Never wash the lining in the washing machine. Never use petrol or
other solvents to clean the lining.
5. HOW TO FIT THE WASHABLE INNER LINING
5.1 Place the main lining padding inside the helmet
5.2 Introduce and attach the front xing strips to the support xed on the shell (Pic.14)
5.3 Hook the 2 studs in the rear side of the helmet (Pic.15)
5.4 Insert the chin strap through the slot in the cheek pad. Repeat for the other cheek.
5.5 Attach the cheek pads by pressing the studs at the back ( (Pic.16)
5.6 Insert the scissor-type tabs in the their seating. (Pig.17)
5.7 Introduce the lateral strips and x them to the clips between the polystyrene of the helmet and
the shell. (Pic.18)
5.8 Fix the plastic tab in the neck area to the relative clip. (Pic.19)
WARNINGS Chin guard opening and/or closing can be done ONLY when the bike is stationery
6. NOSE GUARD ASSEMBLY INSTRUCTIONS
6.1 Insert and press the nose guard into the centre position with the visor raised, making sure
that all the attachment points are properly aligned with their respective slots on the
helmet. (Fig.20)
7. NOSE GUARD REMOVAL INSTRUCTIONS
7.1 The nose guard is removed by pulling it upwards. (Fig.21)
STOP WIND
The wind deector limits the inow of cold air from below.
8. STOP WIND ASSEMBLY INSTRUCTIONS
8.1 Insert and press the wind deector fastening frame into the centre position, making sure
that all the anchoring pins are inserted correctly into their respective slots. (Fig.22)
9. STOP WIND REMOVAL INSTRUCTIONS
9.1 The wind deector is removed by pulling it upwards. (Fig.23)
ENG
7
