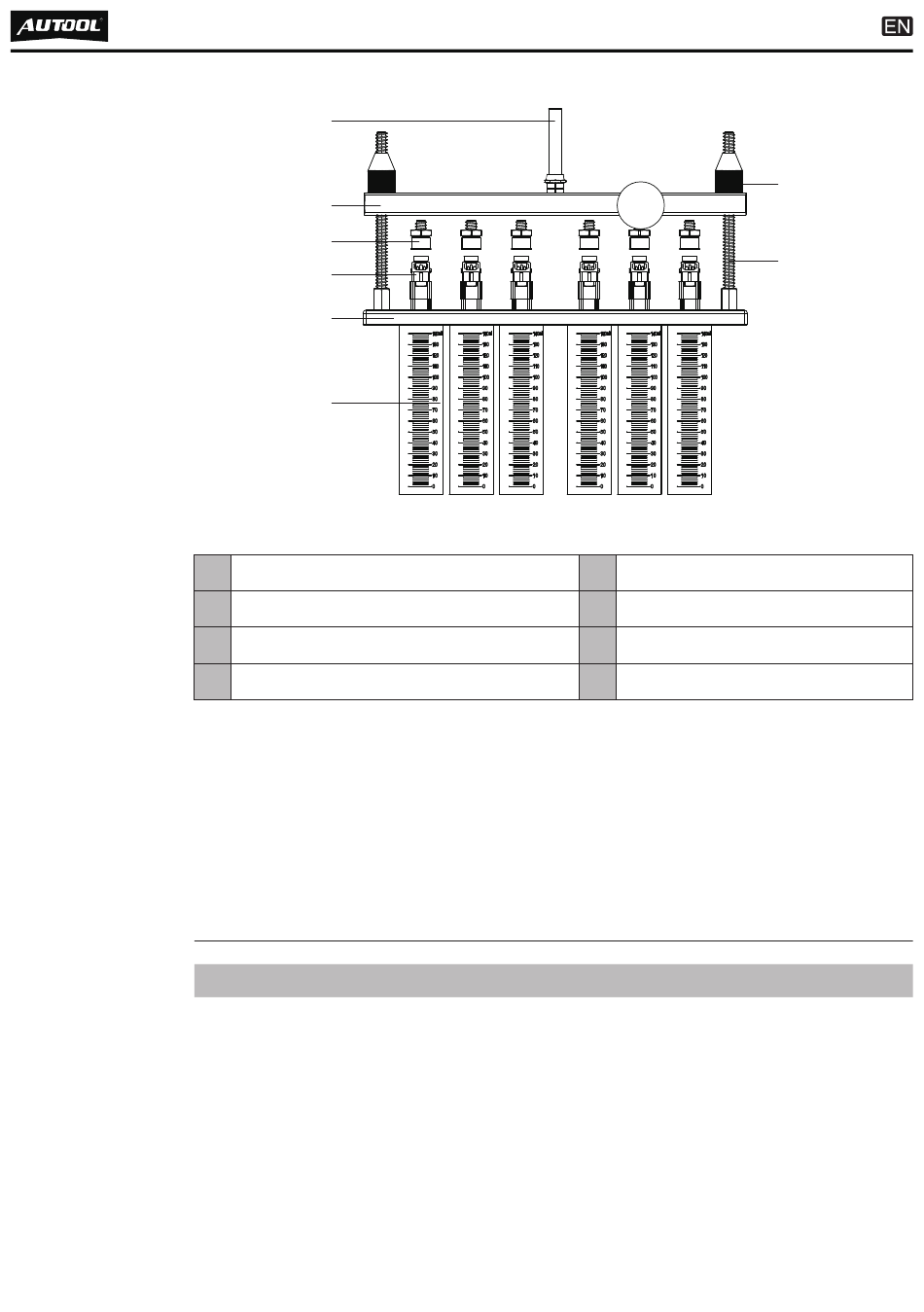

Top-in fuel injector installation diagram
1
Oil outlet pipe
3
Oil injector nozzle assembly
5
Upper plate seat
7
Lock nut
●
Select the top oil inlet connector from the accessories and
install it into the oil separator.
●
Install the fuel injector in the forward direction (apply a little
grease on the "O" ring of the fuel injector)
●
Put the horizontal end of the oil separator and the fuel injector
on the upper plate seat, and tighten the two ends with the
locking rod. Ready to test.
Methods And Steps
02 Idle Speed Test
●
Confirm that the injector to be tested has been installed
properly and the signal wire has been plugged in.
●
Select "02 Idle Speed Test".
●
Press the working time up and down keys to set the time.
(Generally set to 2 minutes)
●
Press the start button to start work.
2
4
6
8
13
7
8
Oil separator
Injectors
Glass measuring cylinder
Lock pole
