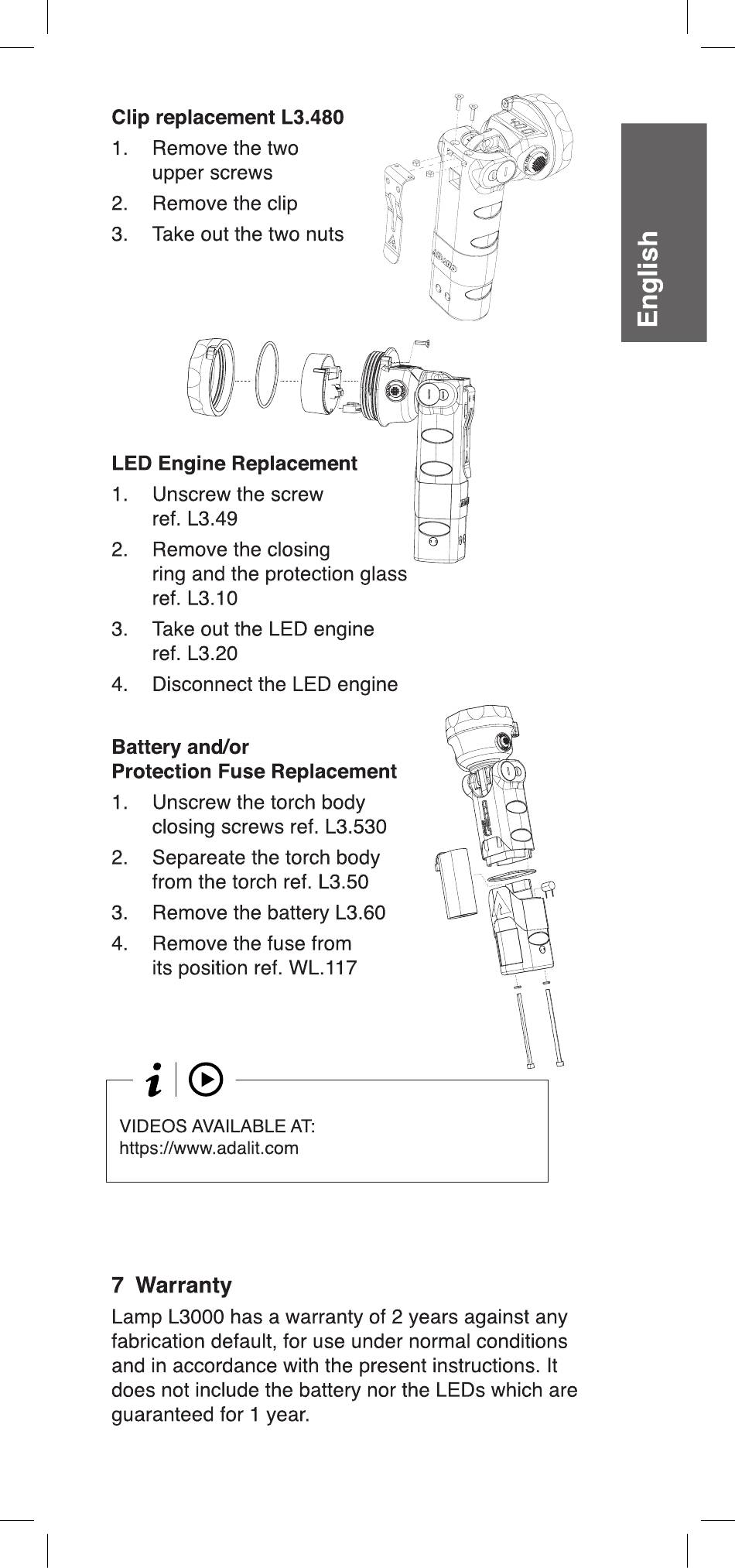

Adalit L-3000 Bedienungsanleitung Seite 11

Clip replacement
I. Remove the
upper screws
Remove the clip
2.
Take out the two nuts
3.
LED Engine Replacement
1. Unscrew the screw
ref. L3.49
2. Remove the closing
ring and the protection glass
ref. L3.10
3. Take out the LED engine
ref. L3.20
4. Disconnect the LED engine
Battery and/or
Protection Fuse Replacement
1. Unscrew the torch body
closing screws ref. L3.530
Separeate the torch body
2.
from the torch
Remove the battery L3.60
3.
4. Remove the
its position ref. WL.117
VIDEOS AVAILABLE
https://www.adalit.com
7 Warranty
Lamp 1.3000 has a warranty of 2 years against any
fabrication default, for use under normal conditions
and in accordance with the present instructions. It
does not include the battery nor the LEDs which are
guaranteed for I year.
L3.480
two
ref. L3.50
fuse from
