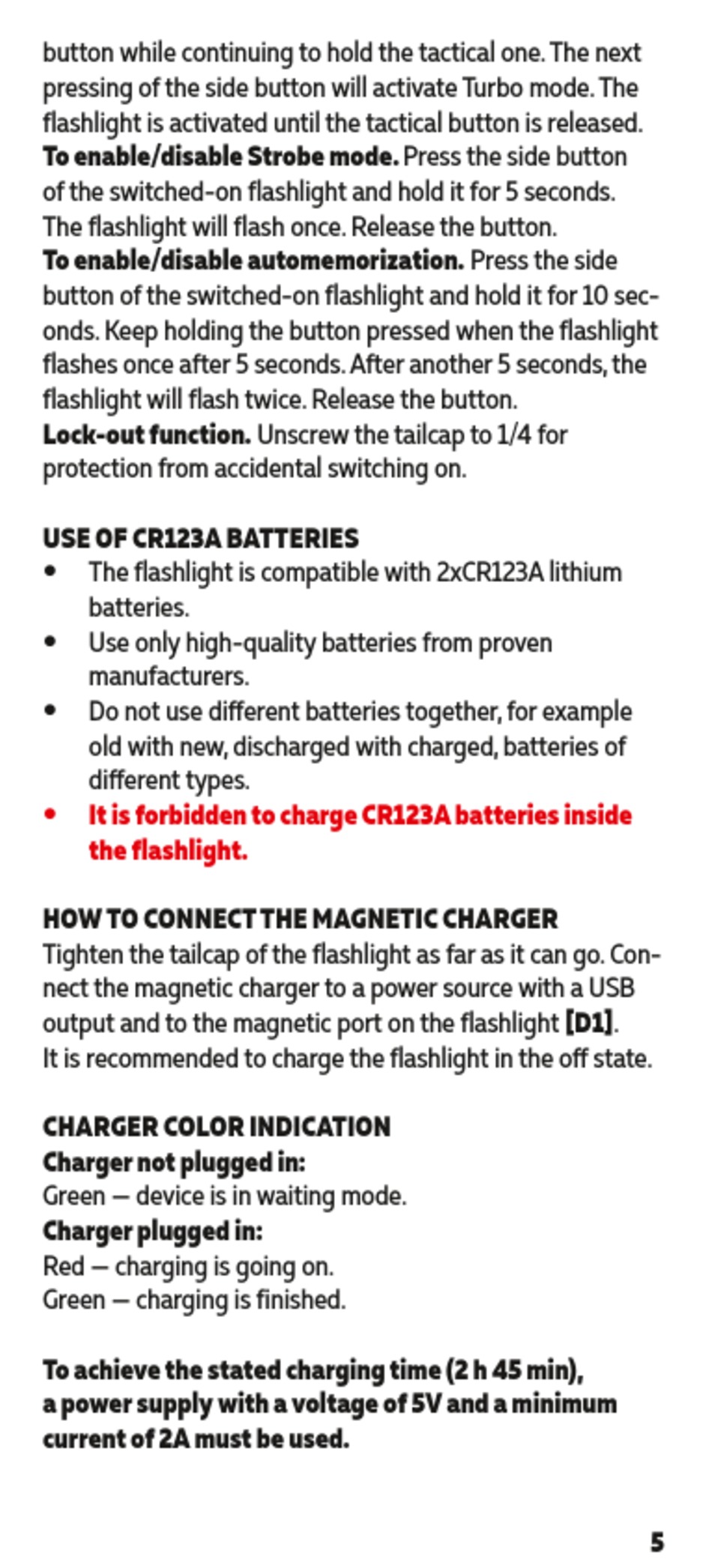

Armytek BARRACUDA PRO MAX Bedienungsanleitung Seite 5

button while continuing to hold the tactical one. The next
pressing of the side button will activate Turbo mode. The
flashlight is activated until the tactical button is released.
To enable/disable Strobe mode. Press the side button
of the switched-on flashlight and hold it for 5 seconds.
The flashlight will flash once. Release the button.
To enable/disable automemorization. Press the side
button of the switched-on flashlight and hold it for 10 sec-
onds. Keep holding the button pressed when the flashlight
flashes once after 5 seconds. After another 5 seconds, the
flashlight will flash twice. Release the button.
Lock-out function. Unscrew the tailcap to 1/4 for
protection from accidental switching on.
USE OF CR123A BATTERIES
y The flashlight is compatible with 2хCR123A lithium
batteries.
y Use only high-quality batteries from proven
manufacturers.
y Do not use different batteries together, for example
old with new, discharged with charged, batteries of
different types.
y It is forbidden to charge CR123A batteries inside
the flashlight.
HOW TO CONNECT THE MAGNETIC CHARGER
Tighten the tailcap of the flashlight as far as it can go. Con-
nect the magnetic charger to a power source with a USB
output and to the magnetic port on the flashlight [D1].
It is recommended to charge the flashlight in the off state.
CHARGER COLOR INDICATION
Charger not plugged in:
Green — device is in waiting mode.
Charger plugged in:
Red — charging is going on.
Green — charging is finished.
To achieve the stated charging time (2 h 45 min),
a power supply with a voltage of 5V and a minimum
current of 2A must be used.
5
