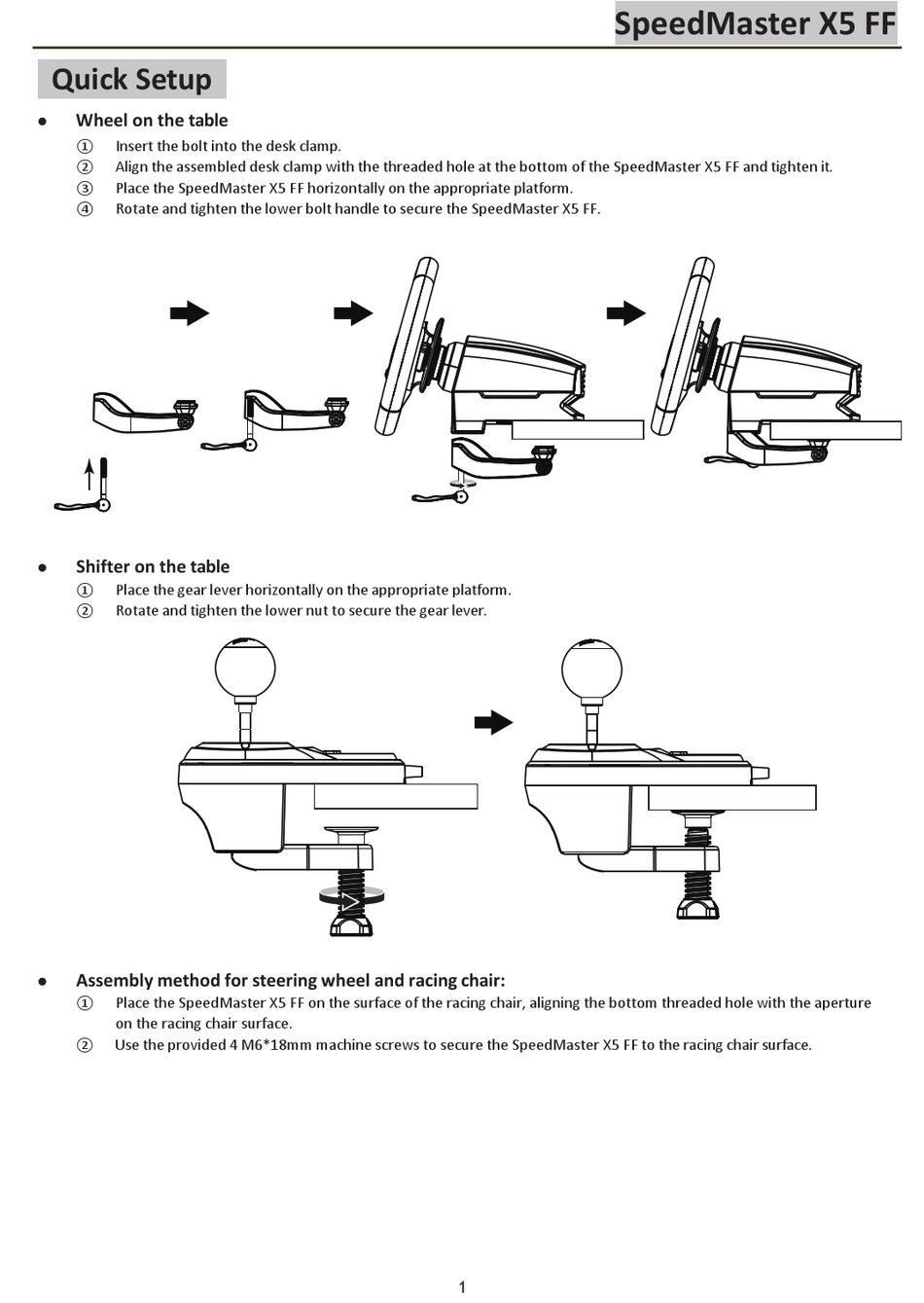

Quick Setup
Wheel on the table

Insert the bolt into the desk clamp.
①
Align the assembled desk clamp with the threaded hole at the bottom of the SpeedMaster X5 FF and tighten it.
②
Place the SpeedMaster X5 FF horizontally on the appropriate platform.
③
Rotate and tighten the lower bolt handle to secure the SpeedMaster X5 FF.
④
Shifter on the table

Place the gear lever horizontally on the appropriate platform.
①
Rotate and tighten the lower nut to secure the gear lever.
②
Assembly method for steering wheel and racing chair:

Place the SpeedMaster X5 FF on the surface of the racing chair, aligning the bottom threaded hole with the aperture
①
on the racing chair surface.
Use the provided 4 M6*18mm machine screws to secure the SpeedMaster X5 FF to the racing chair surface.
②
SpeedMaster X5 FF
