2. Operating instructions
2.1 Start instruction
- Ensure that the ventilation holes in the device housing are not closed or blocked.
- Place the battery on the device and check the battery power via the 'on' button on the back
of the battery.
2.2 Operating instruction

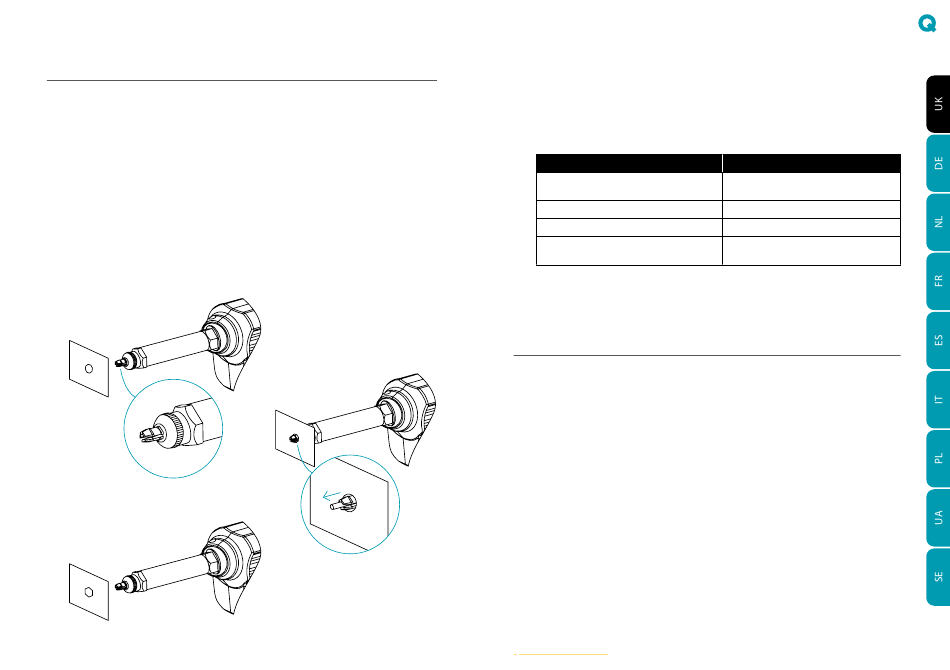

- Place the tool in the starting position with retracted punch bar. [fig. 1]
- Pull the trigger and check that the punch does not retract past the anvil.
- Insert the punch into the round hole. [fig. 2]
- Move the punch rod forward into the tool and through the punch until it protrudes as shown
in figure 2a.
- Activate the trigger, the punch is pulled through the material and makes the hexagonal hole.
[fig 3].
- Release the trigger when the punch is through the material.
Figure 1
Figure 3
6
Figure 2
Figure 2a
Q-Tool P12XL - Operating manual
IMPORTANT!
- Pull the punch rod backwards after punching a hexagonal hole. Point the tool downwards and
activate at the trigger. Excess material will now fall out of the tool.
- Clean the front of the tool regularly! Remove the anvil, possibly the front sleeve and remove
loose particles.
2.3 Troubleshooting
Problems and causes
Battery red light is on and indicates low
power
Battery damaged
Punch bar forgotten to be inserted
Punch does not fit in hole because anvil is
not properly adjusted
CAUTION: If the solutions described above have no effect, the tool must be repaired by
qualified personnel, or returned to the dealer or manufacturer's representative.
3. Battery and charger
3.1 Technical data
Battery
Weight lithium battery: 0.38 kg
Related voltage: 20V
Capacity: 2.0Ah
3.2 Battery charging and safety instructions
- Only charge batteries supplied by authorized dealers.
- Always use the original power supply intended for this tool.
- Before charging the battery, please read the warning label of the charger and the battery.
- Do not use a damaged charger to charge this tool.
- Never attempt to charge a damaged battery.
- Never place a dirty or wet battery in the charger.
- Never dispose of batteries with household waste or in fire or water.
- Neither the charger nor the lithium battery should be placed in water, exposed to water,
snow or any type of wet environment.
- If the battery leaks liquid, avoid contact with this liquid. if there is any contact with this liquid,
rinse it off with water and immediatly consult a doctor.
qonnect-fasteners.com
Solution
Recharge battery
Replace battery
Start again and insert punching rod
Adjust anvil better
Charger
Input voltage: 100-240VAC/50-60 Hz
Charging time: <60min
Output voltage: 20V
Weight: 0.37 kg
7
