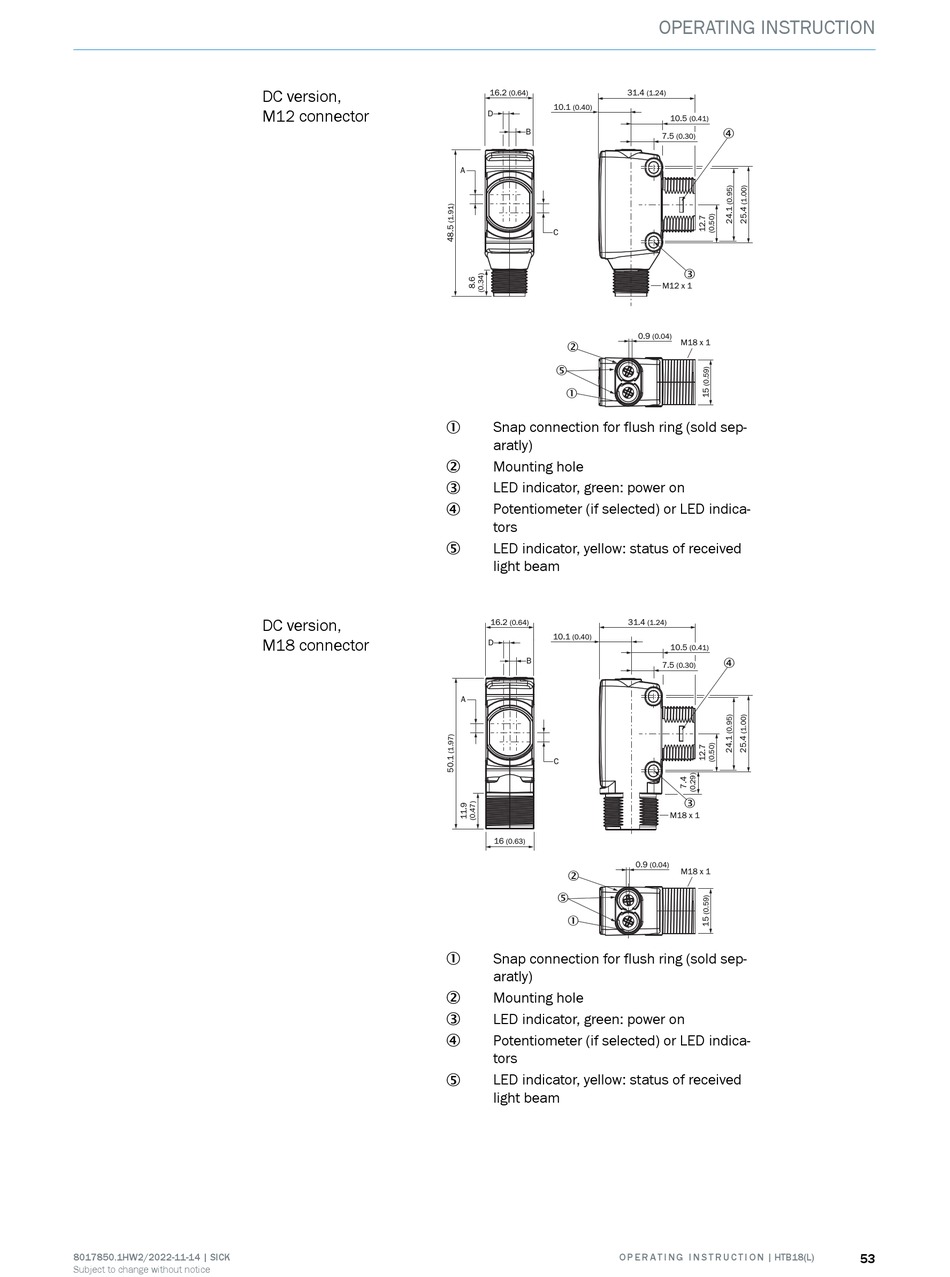

DC version,
M12 connector
DC version,
M18 connector
16.2 (0.64)
10.1 (0.40)
D
B
A
C
2
5
1
Snap connection for flush ring (sold sep‐
1
aratly)
Mounting hole
2
LED indicator, green: power on
3
Potentiometer (if selected) or LED indica‐
4
tors
LED indicator, yellow: status of received
5
light beam
16.2
(0.64)
10.1 (0.40)
D
B
A
C
16
(0.63)
2
5
1
Snap connection for flush ring (sold sep‐
1
aratly)
Mounting hole
2
LED indicator, green: power on
3
Potentiometer (if selected) or LED indica‐
4
tors
LED indicator, yellow: status of received
5
light beam
