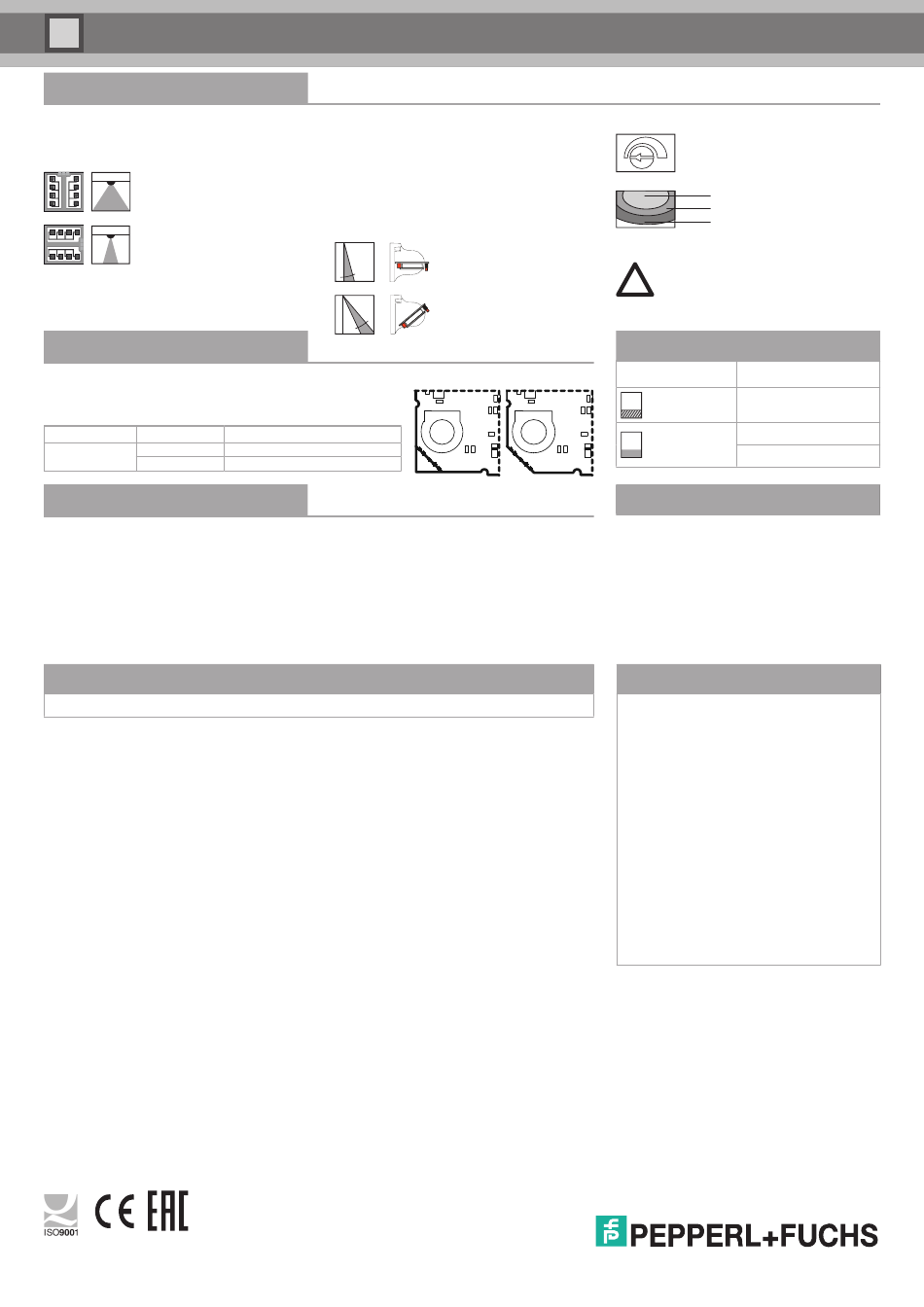

RaDec-M-T
Detection Field Settings
Antenna characteristics
A wide or narrow detection area can be set by
turning the PCB.
Wide
(Standard)
Width:
4.50 m
Depth:
2.00 m
Narrow
(optional)
Width:
2.00 m
Depth:
4.50 m
Installation height
2.20 m
Inclination angle
30°
Size of detection area
Max.
Adjusting the Switching Mode
The corner of the PCB should be broken off at the predetermined
breakage point using pliers to change the switching mode to NC.
The setting becomes permanent once the breakage point is broken!
Function
Setting
Relay contact
Closing active
switching mode
Opening active
Technical Data
For the list of technical data, refer to the datasheet of the product.
The datasheet can be found at www.pepperl-fuchs.com.
Accessories
RaDec weather cap
Weather protective cover
For RaDec-M-T
Pepperl+Fuchs Group is certified according to ISO 9001.
Inclination angle
The built-in locking discs can be used to adjust
the angle of inclination in 10° steps from 0° to
90°.
Intermediate steps of 5° are possible by in-
serting the PCB in the locking discs in different
positions.
Description
Relay closes on detection (NO)
Relay opens on detection (NC)
Detection area size
min.
The default
0 degrees
inclination
angle of the
PCB is 15°.
40 degrees
N.O.
N.C.
The size of the detection
area can be changed
max.
using the potentiometer.
Min.
50 %
Max.
Some installation situations may
limit the adjustment options and the
!
functions of the sensor.
LED Status Indicator
Color indicator
Status
Initialization after
R
Red flashing
switching on
On: Detection active
R
Red
Off: No detection
Commissioning
Before switching on the device, remove all
objects from the door area that do not normal-
ly belong there.
•
Switch on the device and wait 10 s
(LED flashes red).
•
Test the settings by walking within range
of the sensor.
•
The LED lights up red when you are detected.
Conformity with Standards
EU conformity:
Pepperl+Fuchs GmbH hereby
declares that the radio system type RaDec-M-T
complies with Directive 2014/53/EU.
The full declaration of conformity is available at www.
pepperl-fuchs.com.
IMPORTANT! The EU-compliant devices must not
be marketed in the United States/Canada!
When placing on the market outside of the EU, the
locally applicable rules must be observed.
Pepperl+Fuchs Group Lilienthalstr. 200
68307 Mannheim . Germany
E-Mail: FA-info@de.pepperl-fuchs.com
North American Headquarters
Pepperl+Fuchs Inc . Twinsburg . USA
E-Mail: FA-info@us.pepperl-fuchs.com
Asia Headquarters
Pepperl+Fuchs Pte Ltd . Singapore 139942
E-Mail: FA-info@sg.pepperl-fuchs.com
www.pepperl-fuchs.com
Worldwide
DOCT-6385A
08/2020
